LD20V-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8911)2L

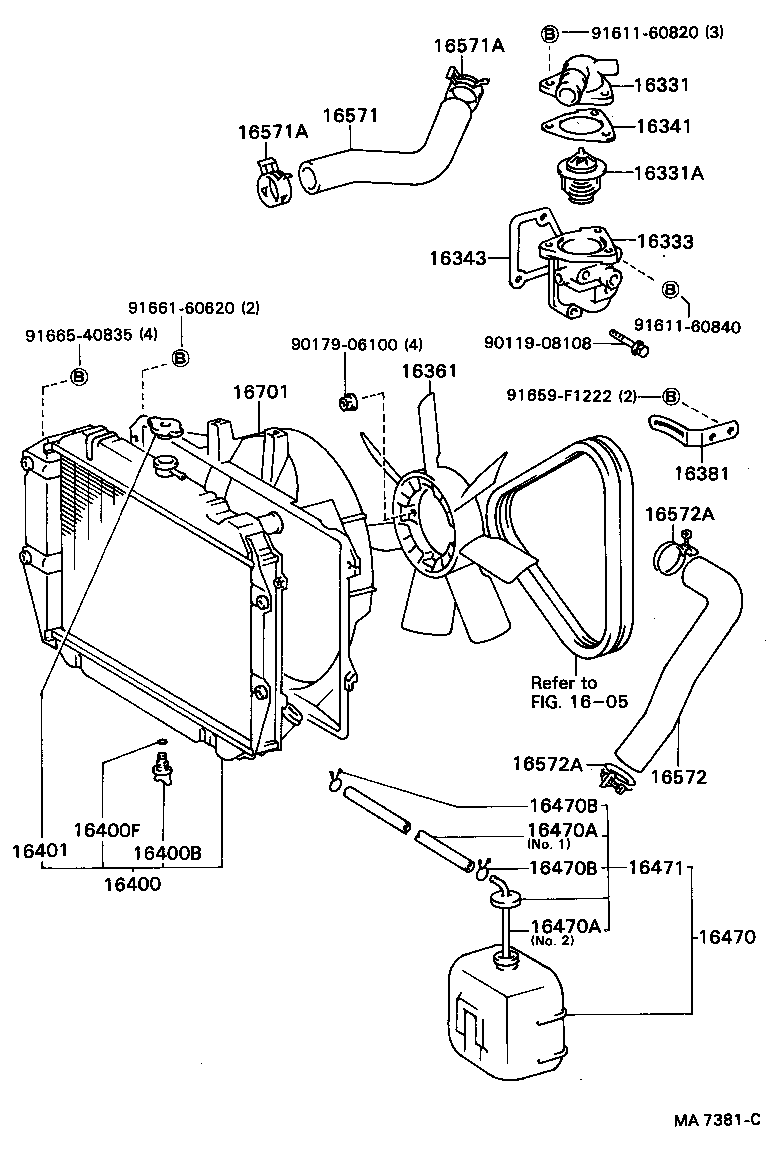

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54040 |
2L..LD20 W/COOLER |
1 | ||
| 16331-54030 |
2L..LD20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
2L#..LD2# *WAX 88−100,*WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
2L..LD20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L..LD20 |
1 | ||
| 16341-54011 |
2L..LD20 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LD20 |
1 | ||
| 16361 - FAN | ||||
| 16361-54010 |
2L#..LD2# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
2L#..LD2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-87615 |
2L..LD20 |
1 | ||
| 16400-87621 |
2L..LD20 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09052 |
2L#..LD2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06030 |
2L#..LD2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-87710 |
2L..LD20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-87609 |
2L..LD20 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90044-45746 |
2L..LD20 NO.1 |
1 | ||
| 90044-45698 |
2L..LD20 NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90044-45746 |
2L..LD20 NO.1 |
1 | ||
| 90044-45698 |
2L..LD20 NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LD2# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LD2# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-87609 |
2L..LD20 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-87611 |
2L..LD20 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L#..LD2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2L#..LD2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-87610 |
2L#..LD2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
2L#..LD2# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
2L#..LD2# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-87612 |
2L#..LD2# |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91659-F1222 | ||||
| 91661-60620 | ||||
| 91665-40835 | ||||
| Linked diagrams | ||||
| 1605 | ||||
