LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

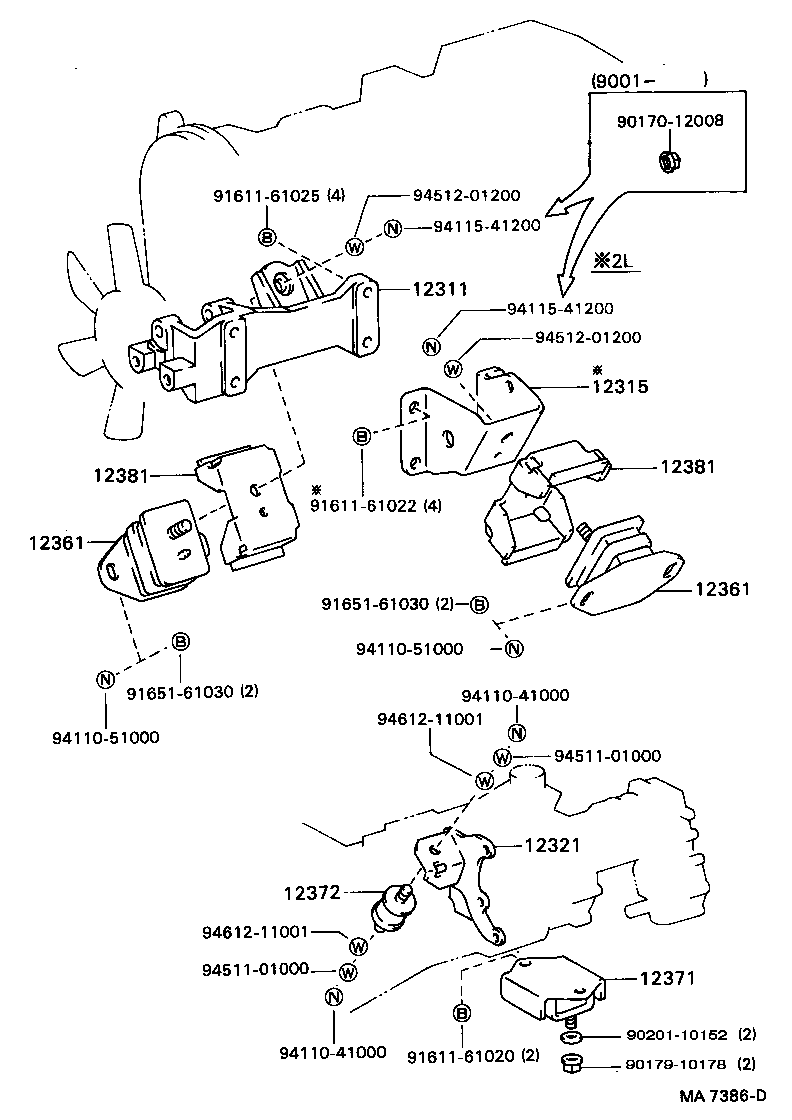

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12371 12372 12381 12381 9017012008 9017910178 9020110152 9161161020 9161161022 9161161025 9165161030 9165161030 9411041000 9411041000 9411051000 9411051000 9411541200 9411541200 9451101000 9451101000 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54090

2L#..LD2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54020

2L..LD20

 1
12312-54021

2L..LD20

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12322-87613

2L#..LD2#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54050

2L#..LD2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54050

2L#..LD2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-87604

2L#..LD2#

 1
12372 - INSULATOR, ENGINE MOUNTING, REAR NO.2
12372-87603

2L#..LD2#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L#..LD2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54010

2L#..LD2#

 2
Common parts
90170-12008
90179-10178
90201-10152
91611-61020
91611-61022
91611-61025
91651-61030
94110-41000
94110-51000
94115-41200
94511-01000
94512-01200
94612-11001
