LD20V-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

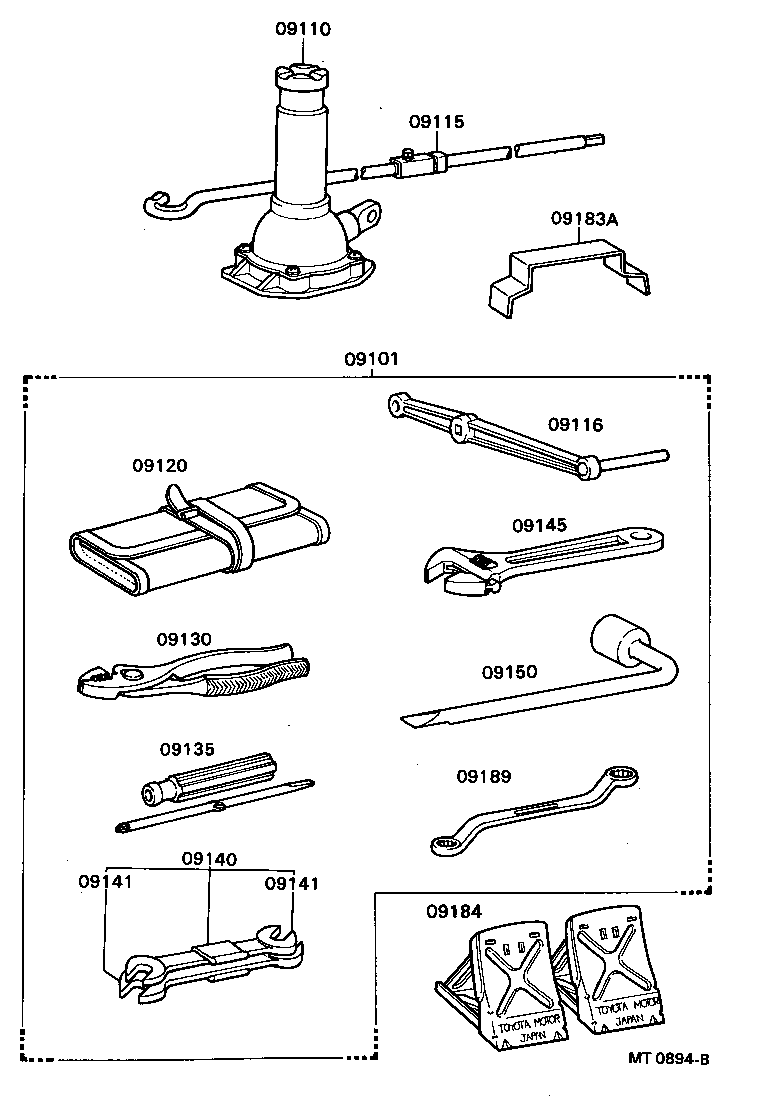

Click highlighted areas on diagram

diagram 09101 09110 09115 09116 09120 09130 09135 09140 09141 09141 09145 09150 09183A 09184 09189
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-60291

LD20

 1
09110 - JACK ASSY
09111-27021

LD2#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-27020

LD2#

 1
09116 - LEVER, JACK HANDLE
09116-35040

LD2#

 1
09120 - BAG, TOOL
09120-26021

LD2#

 1
09130 - PLIERS
99913-11500

LD2#

 1
09135 - DRIVER, SCREW
99915-10700

LD2#

 1
09140 - SPANNER SET
09140-27010

LD2#

 1
09141 - SPANNER
99914-11012

LD2#

10 X 12,10X12

 1
99914-11417

LD2#

14 X 17,14X17

 1
09141 - SPANNER
99914-11012

LD2#

10 X 12,10X12

 1
99914-11417

LD2#

14 X 17,14X17

 1
09145 - WRENCH, MONKEY
99911-10200

LD2#

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

LD2#

 1
09184 - STOPPER, WHEEL
09184-00031

LD2#

 2
09189 - WRENCH, OFFSET
99912-11012

LD20

 1
