LD20V-MD (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405-9002)

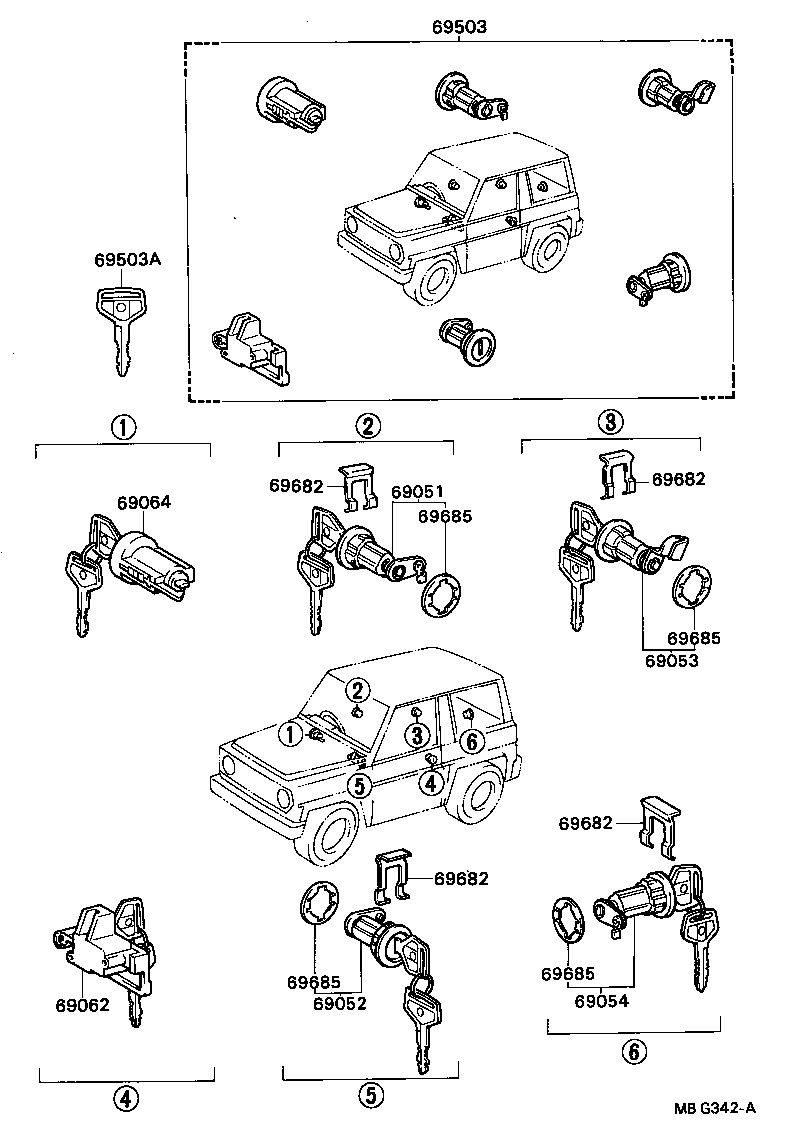

Click highlighted areas on diagram

diagram 69051 69052 69053 69054 69062 69064 69503 69503A 69682 69682 69682 69682 69685 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-87605

LD2#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-87603

LD2#

 1
69053 - CYLINDER & KEY SET, FUEL INLET LOCK
69058-87603

LD2#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69051-87605

LD2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-87602

LD2#

 1
69503 - CYLINDER SET, LOCK
69005-87607

LD2#..V,WG

 1
69503A - KEY, BLANK
90999-00066

LD2#

ﾏｽﾀｰｷｰ

 1
69682 - RETAINER, LOCK CYLINDER
69682-87701

LD2#

 4
69682 - RETAINER, LOCK CYLINDER
69682-87701

LD2#

 4
69682 - RETAINER, LOCK CYLINDER
69682-87701

LD2#

 4
69682 - RETAINER, LOCK CYLINDER
69682-87701

LD2#

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LD2#

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LD2#

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LD2#

 4
69685 - PAD, LOCK CYLINDER
69513-32010

LD2#

 4
