LD20V-MD (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-9002)V,WG

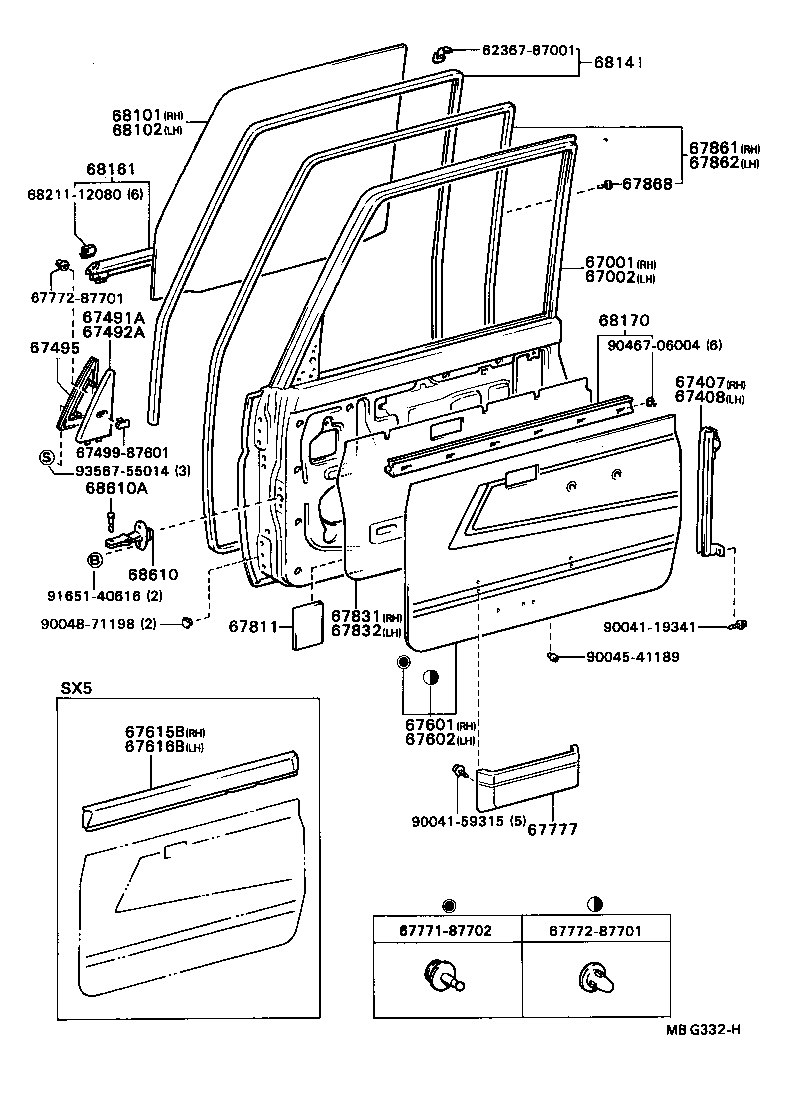

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-87613 |
LD2# |
1 | ||
| 67001-87613 |
LD2#..V,WG |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-87613 |
LD2#..V,WG |
1 | ||
| 67002-87613 |
LD2# |
1 | ||
| 67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-87601 |
LD2#..V,WG |
1 | ||
| 67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-87601 |
LD2#..V,WG |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-87601 |
LD2#..V,WG |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-87601 |
LD2#..V,WG |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-87601 |
LD20..DSL LH |
1 | ||
| 67495-87601 |
LD20..DSL RH |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-87611 |
LD2#..DX,LX,LX5 |
1 | ||
| 67610-87611 |
LD20..DX |
1 | ||
| 67610-8762003 |
LD2#..DX,LX,LX5 GRAY,GRAY |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-87611 |
LD2#..DX,LX,LX5 |
1 | ||
| 67620-8762003 |
LD2#..DX,LX,LX5 GRAY,GRAY |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-87601 |
LD2# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-87602 |
LD2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-87615 |
LD2#..V,WG COLD SPEC |
1 | ||
| 67861-87613 |
LD2#..V,WG |
1 | ||
| 67861-87609 |
LD2#..V,WG |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-87607 |
LD2#..V,WG |
1 | ||
| 67862-87613 |
LD2#..V,WG COLD SPEC |
1 | ||
| 67862-87611 |
LD2#..V,WG |
1 | ||
| 67868 - CLIP, FRONT DOOR GLASS WEATHERSTRIP | ||||
| 67868-95401 |
LD2# |
40 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-87604 |
LD20..DX *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-87602 |
LD20..DX *TEM,厚さ=4.0,*TEM,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68042-87601 |
LD2#..V,WG LH |
1 | ||
| 68042-87602 |
LD2#..V,WG LH |
1 | ||
| 68041-87601 |
LD2#..V,WG RH |
1 | ||
| 68041-87602 |
LD2#..V,WG RH |
1 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-87604 |
LD2# |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-87604 |
LD2# |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-87601 |
LD2# |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-87602 |
LD2# |
2 | ||
| Common parts | ||||
| 62367-87001 | ||||
| 67499-87601 | ||||
| 67771-87702 | ||||
| 67772-87701 | ||||
| 88211-12080 | ||||
| 90041-19341 | ||||
| 90041-59315 | ||||
| 90045-41189 | ||||
| 90048-71198 | ||||
| 90467-06004 | ||||
| 91651-40616 | ||||
| 93567-55014 | ||||
