LD20V-MD (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-8810)

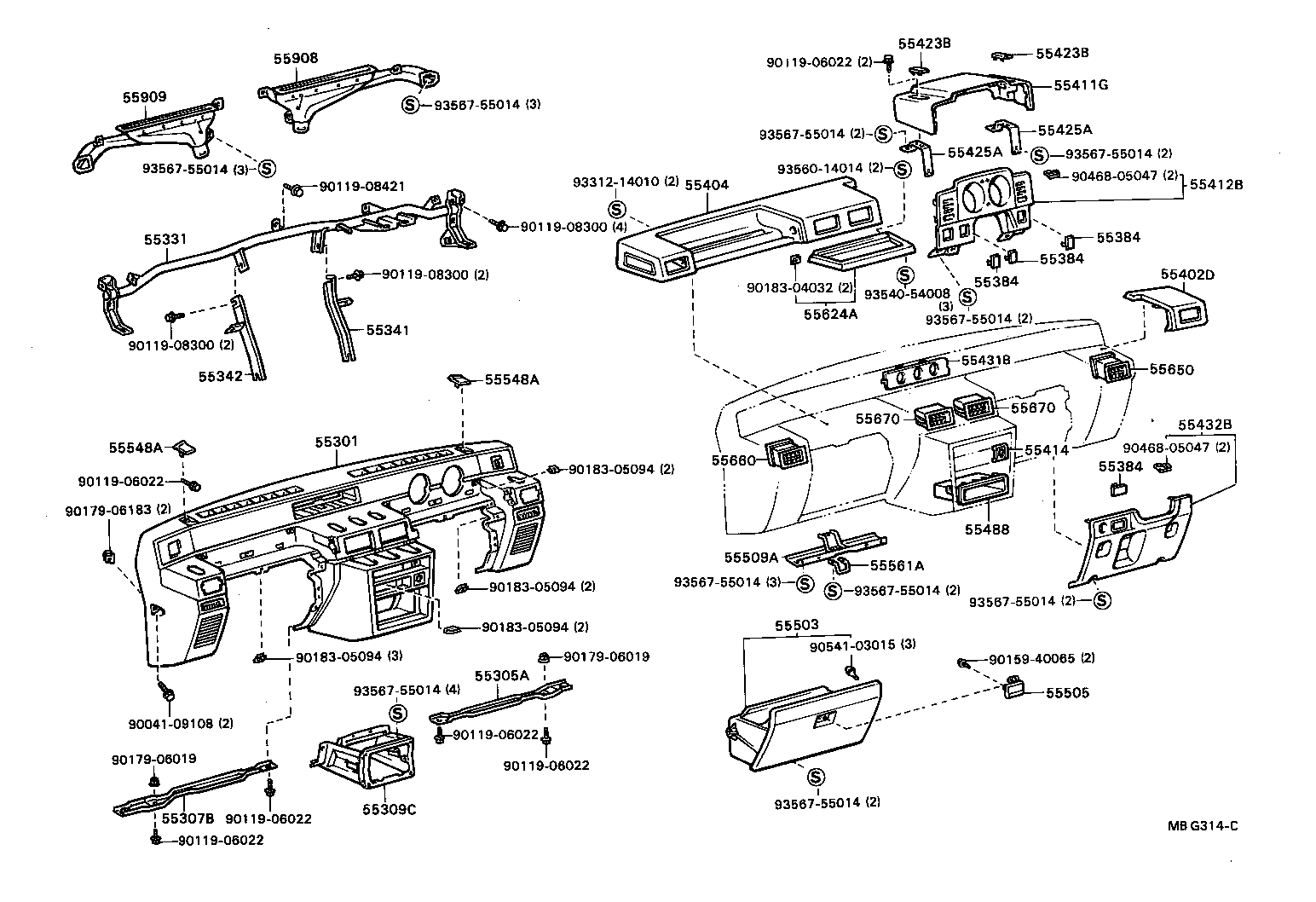

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-87614 |
LD20 |
1 | ||
| 55311-8761903 |
LD2# SHADOW GRAY |
1 | ||
| 55305A - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH | ||||
| 55305-87601 |
LD2# |
1 | ||
| 55307B - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LH | ||||
| 55307-87601 |
LD2# |
1 | ||
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-87602 |
LD2# |
1 | ||
| 55309-87601 |
LD2# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55309-87605 |
LD20..V |
1 | ||
| 55309-87603 |
LD20 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55037-87601 |
LD2# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55038-87601 |
LD2# |
1 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-87702 |
LD2# |
4 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-87702 |
LD2# |
4 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-87702 |
LD2# |
4 | ||
| 55384 - COVER, BASE SWITCH HOLE | ||||
| 55384-87702 |
LD2# |
4 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55403-87601 |
LD2# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-87601 |
LD2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-87603 |
LD2# |
1 | ||
| 55412B - PANEL, INSTRUMENT CLUSTER FINISH, REAR | ||||
| 55412-87608 |
LD2# |
1 | ||
| 55412-87607 |
LD20 |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-87601 |
LD20 |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-87601 |
LD2# |
2 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-87601 |
LD2# |
2 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87601 |
LD2# |
2 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-87601 |
LD2# |
2 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-87601 |
LD2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-87601 |
LD20 |
1 | ||
| 55432-8760503 |
LD2# GRAY,SHADOW GRAY |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55521-87604 |
LD2# |
1 | ||
| 55521-87603 |
LD2# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-87602 |
LD2#..V,WG |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-87602 |
LD2#..V,WG |
1 | ||
| 55509A - RETAINER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55509-87601 |
LD2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55547-87601 |
LD2# RH |
1 | ||
| 55548-87601 |
LD2# LH |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55547-87601 |
LD2# RH |
1 | ||
| 55548-87601 |
LD2# LH |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-87601 |
LD2# |
1 | ||
| 55624A - TRAY, INSTRUMENT PANEL, CENTER | ||||
| 55624-87601 |
LD2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-87601 |
LD2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-87601 |
LD2# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-87601 |
LD2# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-87601 |
LD2# |
2 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55951-87601 |
LD2# |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55952-87601 |
LD2# |
1 | ||
| Common parts | ||||
| 90041-09108 | ||||
| 90119-06022 | ||||
| 90119-08300 | ||||
| 90119-08421 | ||||
| 90159-40065 | ||||
| 90179-06019 | ||||
| 90179-06183 | ||||
| 90183-04032 | ||||
| 90183-05094 | ||||
| 90468-05047 | ||||
| 90541-03015 | ||||
| 93312-14010 | ||||
| 93540-54008 | ||||
| 93560-14014 | ||||
| 93567-55014 | ||||
