LD20-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

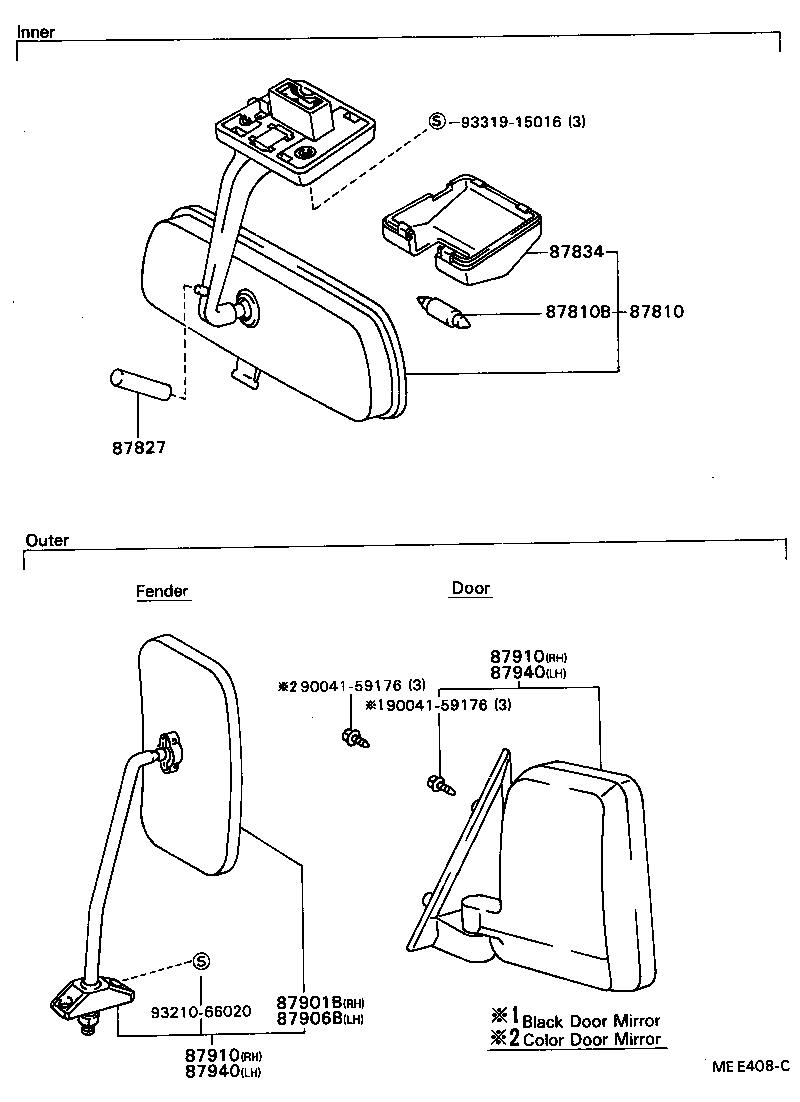

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-87606 |
LD2#..LX,LX5,SX5 |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 99132-12100 |
LD2# 12V 10W,12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-87603 |
LD2# VAN |
1 | ||
| 87828-87604 |
LD2# TOP |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81241-87001 |
LD2# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-87603 |
LD2# FENDER |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-87603 |
LD2# FENDER |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-87608 |
LD2# FENDER |
1 | ||
| 87910-87686 |
LD2# DOOR |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-87608 |
LD2# FENDER |
1 | ||
| 87910-87686 |
LD2# DOOR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-87608 |
LD2# FENDER |
1 | ||
| 87940-87686 |
LD2# DOOR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-87608 |
LD2# FENDER |
1 | ||
| 87940-87686 |
LD2# DOOR |
1 | ||
| Common parts | ||||
| 90041-59176 | ||||
| 93210-66020 | ||||
| 93319-15016 | ||||
