LD20-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

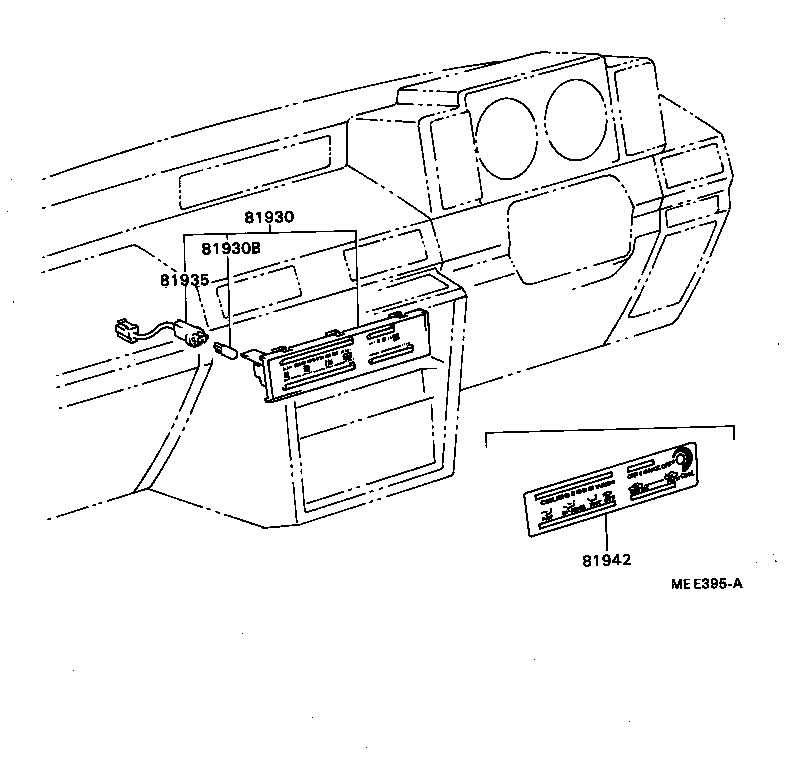

Click highlighted areas on diagram

diagram 81930 81930B 81935 81942
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-87601

LD2#

 1
81930-87609

LD2#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90049-51036

LD2#

 1
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-87601

LD2#

 1
81942 - SHEET, HEATER CONTROL NAME
55519-87601

LD2#

W/COOLER

 1
55519-87605

LD2#

W/COOLER

 1
