LD20-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

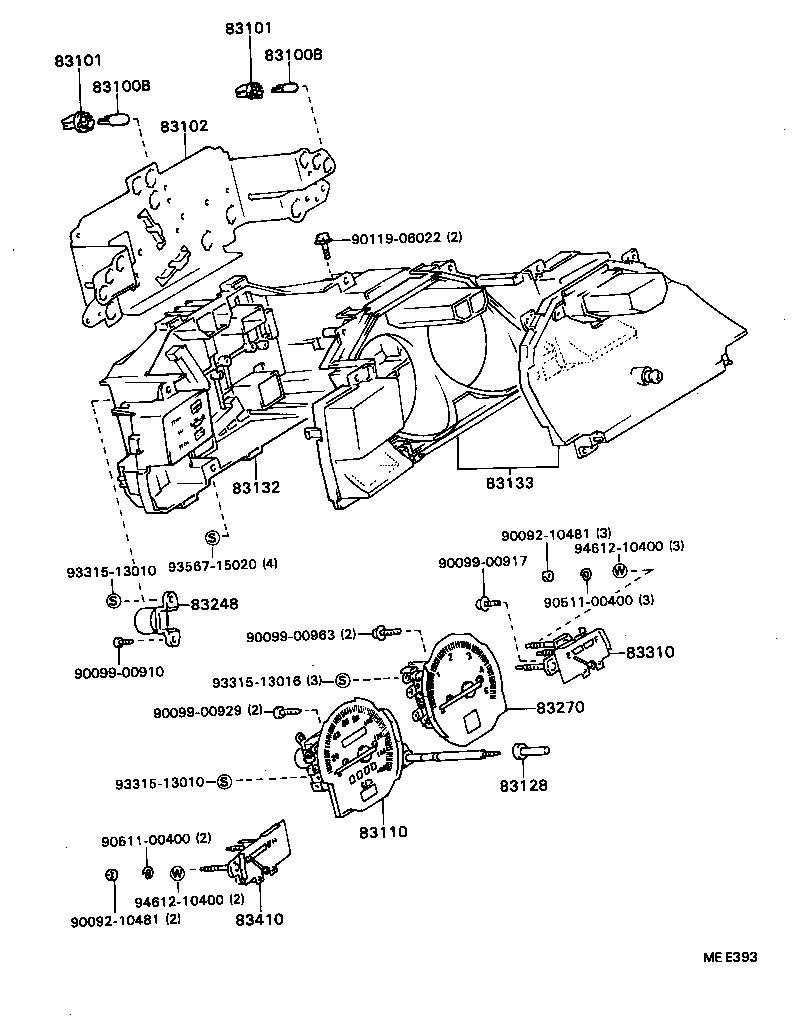

ILLUST NO. 1 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LD2# 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
LD2# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LD2# 12V 3.4W,12V 3.4W |
9 | ||
| 90981-11018 |
LD2# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LD2# 12V 3.4W |
9 | ||
| 83101-14040 |
LD2# 12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
LD2# 12V 3.4W |
9 | ||
| 83101-14040 |
LD2# 12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-87602 |
LD20..DSL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-87624 |
LD2# |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-87601 |
LD2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-87615 |
LD20..DSL |
1 | ||
| 83132-87601 |
LD20..DSL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83138-87601 |
LD2# |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 83248-87601 |
LD2# |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-87611 |
LD20..DSL |
1 | ||
| 83270-87602 |
LD20..DSL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-87603 |
LD2# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-87607 |
LD2# |
1 | ||
| Common parts | ||||
| 90092-10481 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00963 | ||||
| 90119-06022 | ||||
| 90511-00400 | ||||
| 93315-13010 | ||||
| 93315-13016 | ||||
| 93567-15020 | ||||
| 94612-10400 | ||||

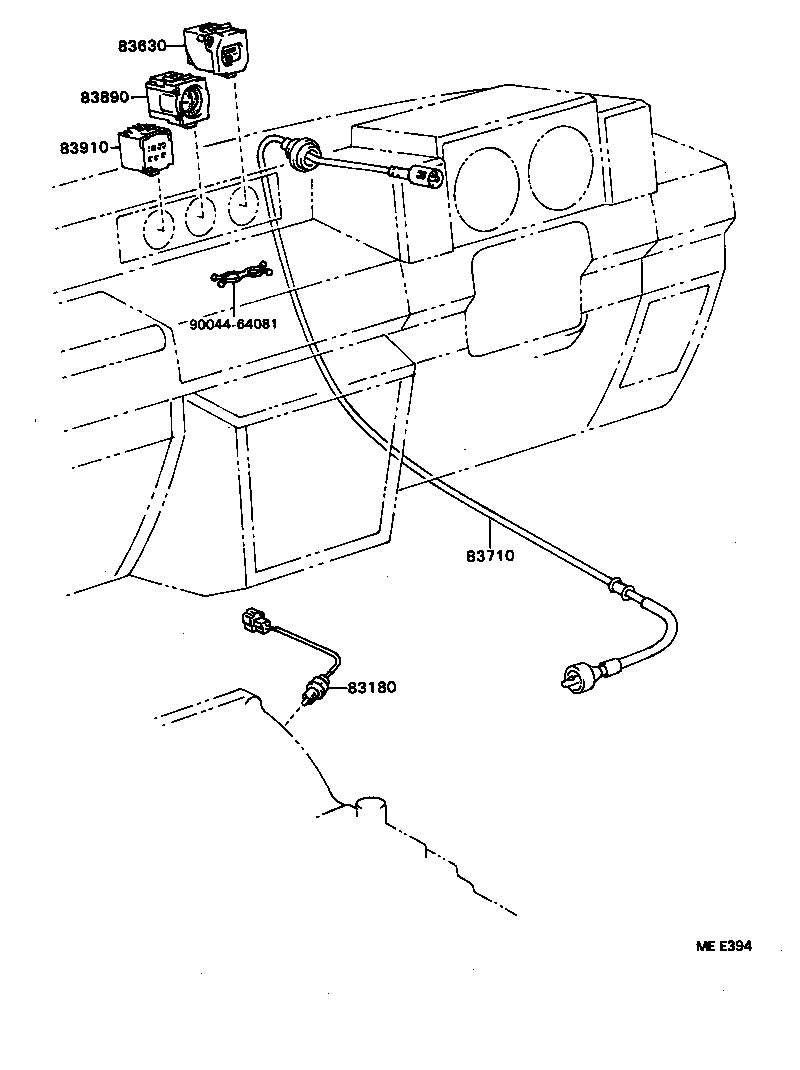

ILLUST NO. 2 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83275-87602 |
LD20..DSL |
1 | ||
| 83275-87602 |
LD20 |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83630-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-87619 |
LD20..DSL |
1 | ||
| 83710-87621 |
LD20..DSL |
1 | ||
| 83890 - CLINOMETER ASSY | ||||
| 83890-87601 |
LD2#..LX,LX5,SX5 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-87602 |
LD2# |
1 | ||
| Common parts | ||||
| 90044-64081 | ||||
