LD20-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405-9002)

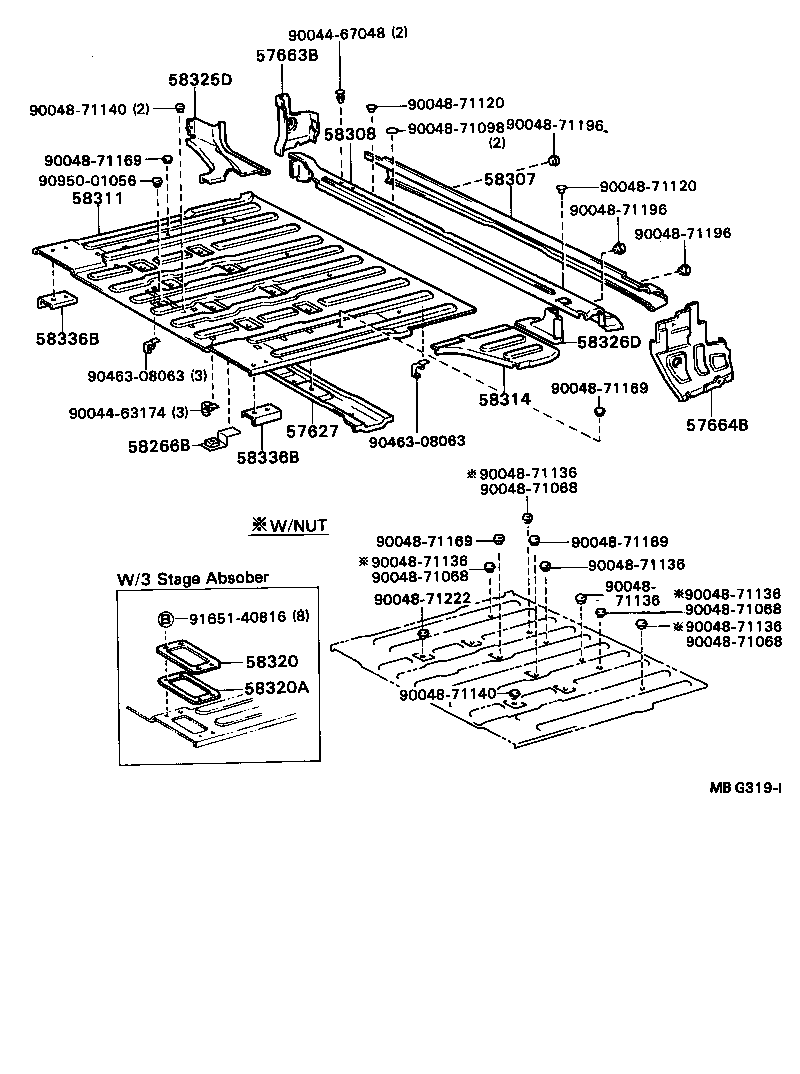

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57627 - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57652-87602 |
LD20 |
1 | ||
| 57663B - PANEL, REAR FLOOR SIDE, REAR RH | ||||
| 57663-87601 |
LD2# |
1 | ||
| 57664B - PANEL, REAR FLOOR SIDE, REAR LH | ||||
| 57664-87601 |
LD20 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-87601 |
LD2# |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-87602 |
LD20..TP |
1 | ||
| 58308-87606 |
LD20..TP |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-87609 |
LD20..LX |
1 | ||
| 58311-87610 |
LD2#..LX,LX5,SX5 W/3 STAGE ABSOBER |
1 | ||
| 58311-87614 |
LD2#..LX,LX5,SX5 W/3 STAGE ABSOBER |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-87603 |
LD2# |
1 | ||
| 58320 - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58295-87601 |
LD2#..LX,LX5,SX5 |
2 | ||
| 58320A - PACKING, REAR FLOOR SERVICE HOLE | ||||
| 58339-87602 |
LD2#..LX,LX5,SX5 |
2 | ||
| 58325D - BRACE, REAR FLOOR PANEL, RH | ||||
| 58325-87601 |
LD2# |
1 | ||
| 58326D - BRACE, REAR FLOOR PANEL, LH | ||||
| 58326-87601 |
LD2# |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58352-87601 |
LD2#..LX,LX5,SX5 LH,W/3 STAGE ABSOBER |
1 | ||
| 58351-87601 |
LD2#..LX,LX5,SX5 RH,W/3 STAGE ABSOBER |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58352-87601 |
LD2#..LX,LX5,SX5 LH,W/3 STAGE ABSOBER |
1 | ||
| 58351-87601 |
LD2#..LX,LX5,SX5 RH,W/3 STAGE ABSOBER |
1 | ||
| Common parts | ||||
| 90044-63174 | ||||
| 90044-67048 | ||||
| 90048-71068 | ||||
| 90048-71098 | ||||
| 90048-71120 | ||||
| 90048-71136 | ||||
| 90048-71140 | ||||
| 90048-71169 | ||||
| 90048-71196 | ||||
| 90048-71222 | ||||
| 90463-08063 | ||||
| 90950-01056 | ||||
| 91651-40816 | ||||
