LD20-MN (1984)

Toyota Blizzard

Production May 1984 - Nov 1989
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8405- )

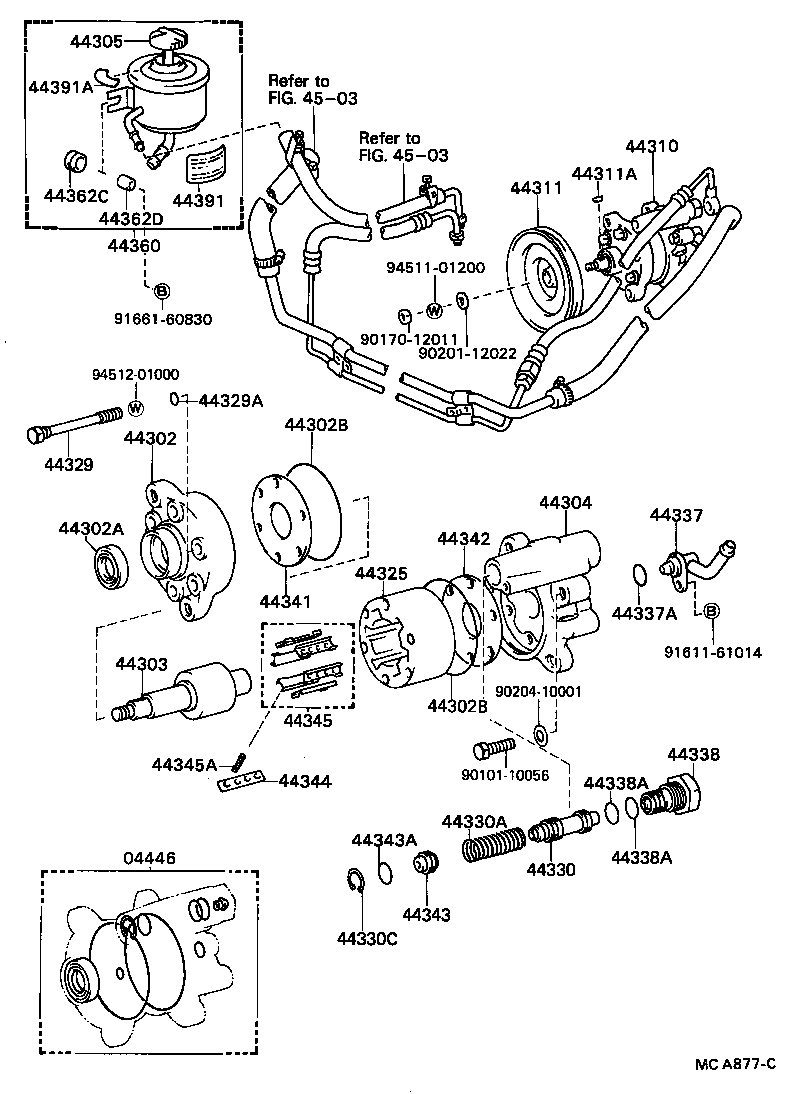

Click highlighted areas on diagram

diagram 04446 44302 44302A 44302B 44302B 44303 44304 44305 44310 44311 44311A 44325 44329 44329A 44330 44330A 44330C 44337 44337A 44338 44338A 44338A 44341 44342 44343 44343A 44344 44345 44345A 44360 44362C 44362D 44391 44391A 4503 4503 9010110056 9017012011 9020112022 9020410001 9161161014 9166160830 9451101200 9451201000
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-87601

LD2#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30020

LD2#

 1
44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
90311-21002

LD2#

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-69170

LD2#

 2
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-69170

LD2#

 2
44303 - SHAFT SUB-ASSY, W/ROTOR
44303-22011

LD2#

NO.MARK

 1
44303-22021

LD2#

MARK 2

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30040

LD2#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

LD2#

 1
44310 - PUMP ASSY, VANE
44320-87603

LD2#

 1
44311 - PULLEY, VANE PUMP
44311-30040

LD2#

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

LD2#

 1
44325 - RING, FIXED(FOR VANE PUMP)
44325-30030

LD2#

ﾏｰｸ 1,MARK 1

 1
44325-30040

LD2#

ﾏｰｸ 2,MARK 2

 1
44329 - BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET
44329-30010

LD2#

 6
44329A - RING, O(FOR VANE PUMP HOUSING SET BOLT)
96711-19007

LD2#

 6
44330 - VALVE ASSY, FLOW CONTROL
44330-12140

LD2#

ﾏｰｸ B,MARK B

 1
44330-12170

LD2#

ﾏｰｸ E,MARK E

 1
44330-12180

LD2#

ﾏｰｸ F,MARK F

 1
44330-12150

LD2#

ﾏｰｸ C,MARK C

 1
44330-12160

LD2#

ﾏｰｸ D,MARK D

 1
44330-12130

LD2#

ﾏｰｸ A,MARK A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

LD2#

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

LD2#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-87601

LD2#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-25135

LD2#

 1
44338 - UNION, PRESSURE PORT
44308-26020

LD2#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LD2#

外径=17.0,内径=13.0

 2
44338A - RING, O(FOR PRESSURE PORT UNION)
96711-19014

LD2#

外径=17.0,内径=13.0

 2
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30020

LD2#

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-30020

LD2#

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

LD2#

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

LD2#

 1
44344 - SEAT, SPRING(FOR VANE PUMP)
44344-30010

LD2#

 6
44345 - SLIPPER, VANE PUMP
44307-22020

LD2#

ﾏｰｸ無し,RING MARK 2

 1
44307-22010

LD2#

ﾏｰｸ無し,RING NO.MARK

 1
44345A - SPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
90501-06445

LD2#

 24
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-87602

LD2#

 1
44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR)
90540-09004

LD2#

 3
44362D - SPACER(FOR VANE PUMP OIL RESERVOIR)
90560-06014

LD2#

 3
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-30020

LD2#

 1
Common parts
90101-10056
90170-12011
90201-12022
90204-10001
91611-61014
91661-60830
94511-01200
94512-01000
Linked diagrams
4503
