LD20-MN (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8405- )

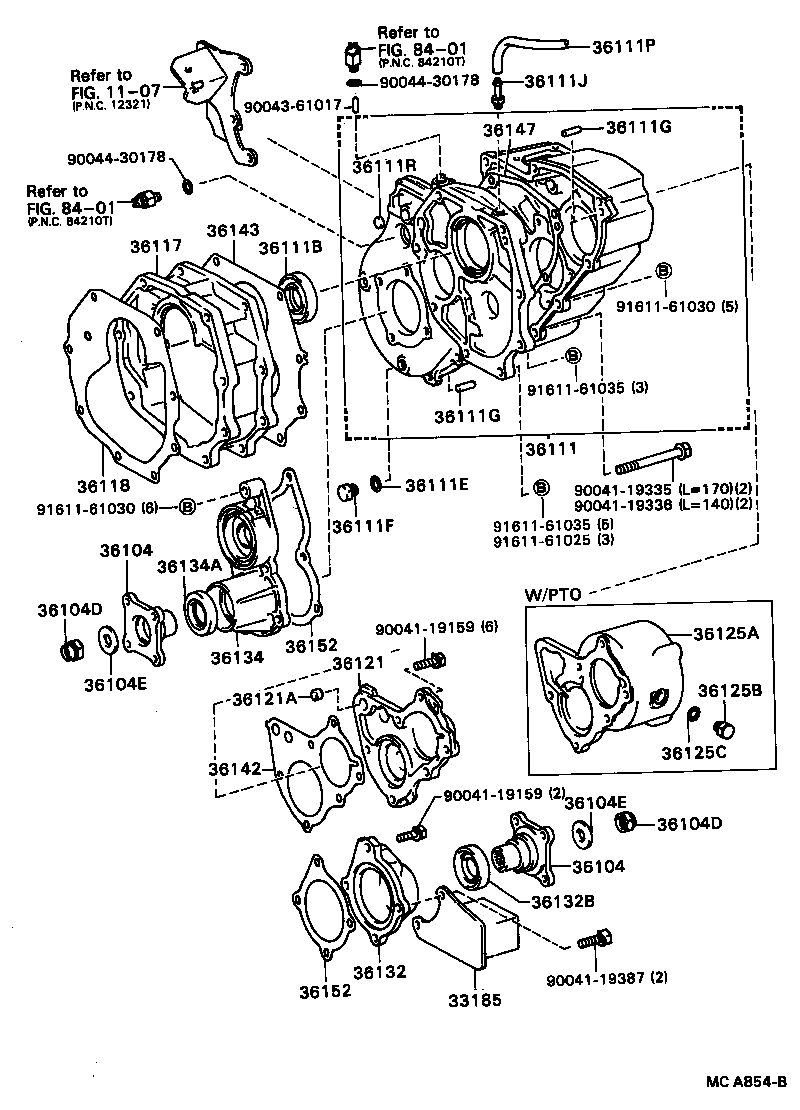

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33185 - BRACKET, DYNAMIC DAMPER | ||||
| 33185-87601 |
LD2# |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33324-87603 |
LD20 |
2 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33324-87603 |
LD20 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90041-78018 |
LD2# |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90041-78018 |
LD2# |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90042-01477 |
LD20 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90042-01477 |
LD20 |
2 | ||
| 36111 - CASE, TRANSFER | ||||
| 36101-87686 |
LD2# |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90043-16010 |
LD2# |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 12157-10010 |
LD2# |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18049 |
LD2# FILLER PLUG |
1 | ||
| 90341-18057 |
LD2# DRAIN PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90042-50003 |
LD2# L=24 |
1 | ||
| 90042-50119 |
LD2# L=45 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90042-50003 |
LD2# L=24 |
1 | ||
| 90042-50119 |
LD2# L=45 |
1 | ||
| 36111J - UNION, BREATHER, NO.1 (FOR TRANSFER) | ||||
| 90044-05083 |
LD2# |
1 | ||
| 36111P - HOSE, BREATHER (FOR TRANSFER CASE) | ||||
| 90044-45699 |
LD2# |
1 | ||
| 36111R - PLUG, TIGHT (FOR TRANSFER CASE) | ||||
| 90331-16050 |
LD2# |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36117-87602 |
LD2# |
1 | ||
| 36118 - GASKET, TRANSFER ADAPTER | ||||
| 33142-87303 |
LD2# |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-87605 |
LD2# |
1 | ||
| 36125A - ADAPTER, POWER TAKE-OFF | ||||
| 36125-87603 |
LD2# W/PTO |
1 | ||
| 36125B - PLUG(FOR POWER TAKE-OFF ADAPTER) | ||||
| 90341-18049 |
LD2# W/PTO |
1 | ||
| 36125C - GASKET(FOR POWER TAKE-OFF ADAPTER) | ||||
| 12157-10010 |
LD2# W/PTO |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-87605 |
LD2# |
1 | ||
| 36132B - SEAL, OIL (FOR OUTPUT SHAFT BEARING REAR RETAINER) | ||||
| 90043-11164 |
LD2# |
1 | ||
| 36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT | ||||
| 36134-87604 |
LD2# |
1 | ||
| 36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER) | ||||
| 90043-11164 |
LD2# |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36141-87603 |
LD2# |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-87603 |
LD2# |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36146-87602 |
LD2# |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36154-87601 |
LD2# FR |
1 | ||
| 36152-87601 |
LD2# RR |
1 | ||
| 36152 - GASKET, OUTPUT SHAFT BEARING RETAINER | ||||
| 36154-87601 |
LD2# FR |
1 | ||
| 36152-87601 |
LD2# RR |
1 | ||
| Common parts | ||||
| 90041-19159 | ||||
| 90041-19335 | ||||
| 90041-19336 | ||||
| 90041-19387 | ||||
| 90043-61017 | ||||
| 90044-30178 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 8401 | ||||
