LD20-MD (1984)
Toyota Blizzard
Production
May 1984
-
Nov 1989
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

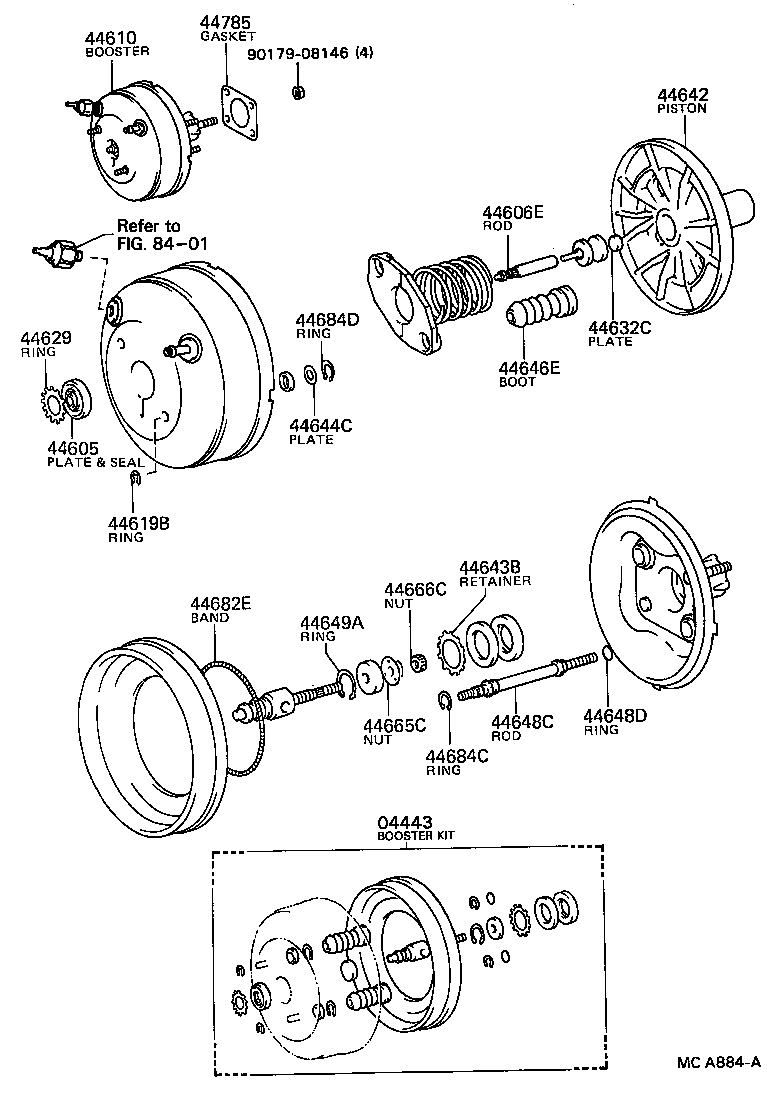

ILLUST NO. 1 OF 2(8405- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-87608 |
LD2# |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-12410 |
LD2# |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12410 |
LD2# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-87623 |
LD2# |
1 | ||
| 44619B - RING, BOOSTER BODY TIE ROD | ||||
| 44619-12410 |
LD2# |
2 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-12410 |
LD2# |
1 | ||
| 44632C - PLATE, REACTION | ||||
| 44632-12410 |
LD2# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-12410 |
LD2# |
1 | ||
| 44643B - RETAINER, BOOSTER SEAL | ||||
| 44643-12410 |
LD2# |
1 | ||
| 44644C - PLATE, BOOSTER BODY TIE ROD SEAL | ||||
| 44644-12410 |
LD2# |
2 | ||
| 44646E - BOOT, BOOSTER BODY TIE ROD | ||||
| 44646-12410 |
LD2# |
2 | ||
| 44648C - ROD, BOOSTER BODY TIE | ||||
| 44648-87601 |
LD2# |
2 | ||
| 44648D - RING, O(FOR BOOSTER BODY TIE ROD) | ||||
| 96712-24015 |
LD2# |
2 | ||
| 44649A - RING, BOOSTER PISTON STOP | ||||
| 44649-12410 |
LD2# |
1 | ||
| 44665C - NUT, BOOSTER OPERATING ROD ADJUST | ||||
| 44665-12410 |
LD2# |
1 | ||
| 44666C - NUT, BOOSTER OPERATING ROD LOCK | ||||
| 44666-12410 |
LD2# |
1 | ||
| 44682E - BAND, BOOSTER DIAPHRAGM | ||||
| 44682-12410 |
LD2# |
1 | ||
| 44684C - RING, SNAP, NO.1(FOR BOOSTER BODY TIE ROD) | ||||
| 44684-12410 |
LD2# |
2 | ||
| 44684D - RING, SNAP, NO.2(FOR BOOSTER BODY TIE ROD) | ||||
| 96150-01000 |
LD2# |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 90044-31022 |
LD2# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8401 | ||||

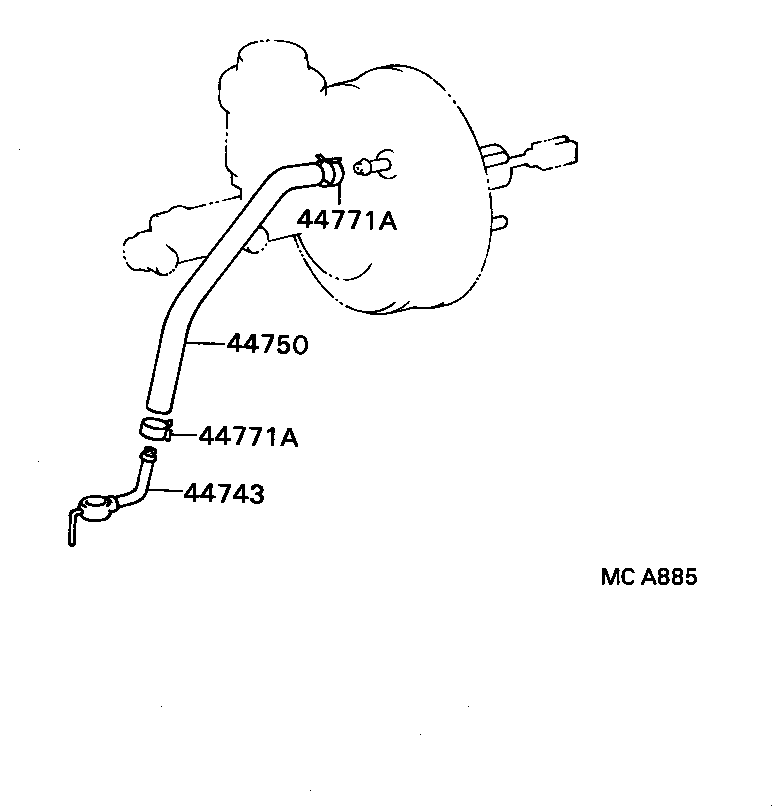

ILLUST NO. 2 OF 2(8405- )DSL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90044-05154 |
LD2# |
1 | ||
| 90405-09068 |
LD20 |
1 | ||
| 90044-05155 |
LD2# W/AIR CONDITIONER |
1 | ||
| 90405-09067 |
LD20 W/AIR CONDITIONER |
1 | ||
| 90044-05154 |
LD20 |
1 | ||
| 90044-05155 |
LD20 W/AIR CONDITIONER |
1 | ||
| 90405-09068 |
LD2# |
1 | ||
| 90405-09067 |
LD2# W/AIR CONDITIONER |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-87607 |
LD20 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90044-05155 |
LD20 W/AIR CONDITIONER |
1 | ||
| 90467-16141 |
LD2# |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90044-05155 |
LD20 W/AIR CONDITIONER |
1 | ||
| 90467-16141 |
LD2# |
2 | ||
