LD10V-MDE (1982)
Toyota Blizzard
Production
Oct 1982
-
Apr 1984
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

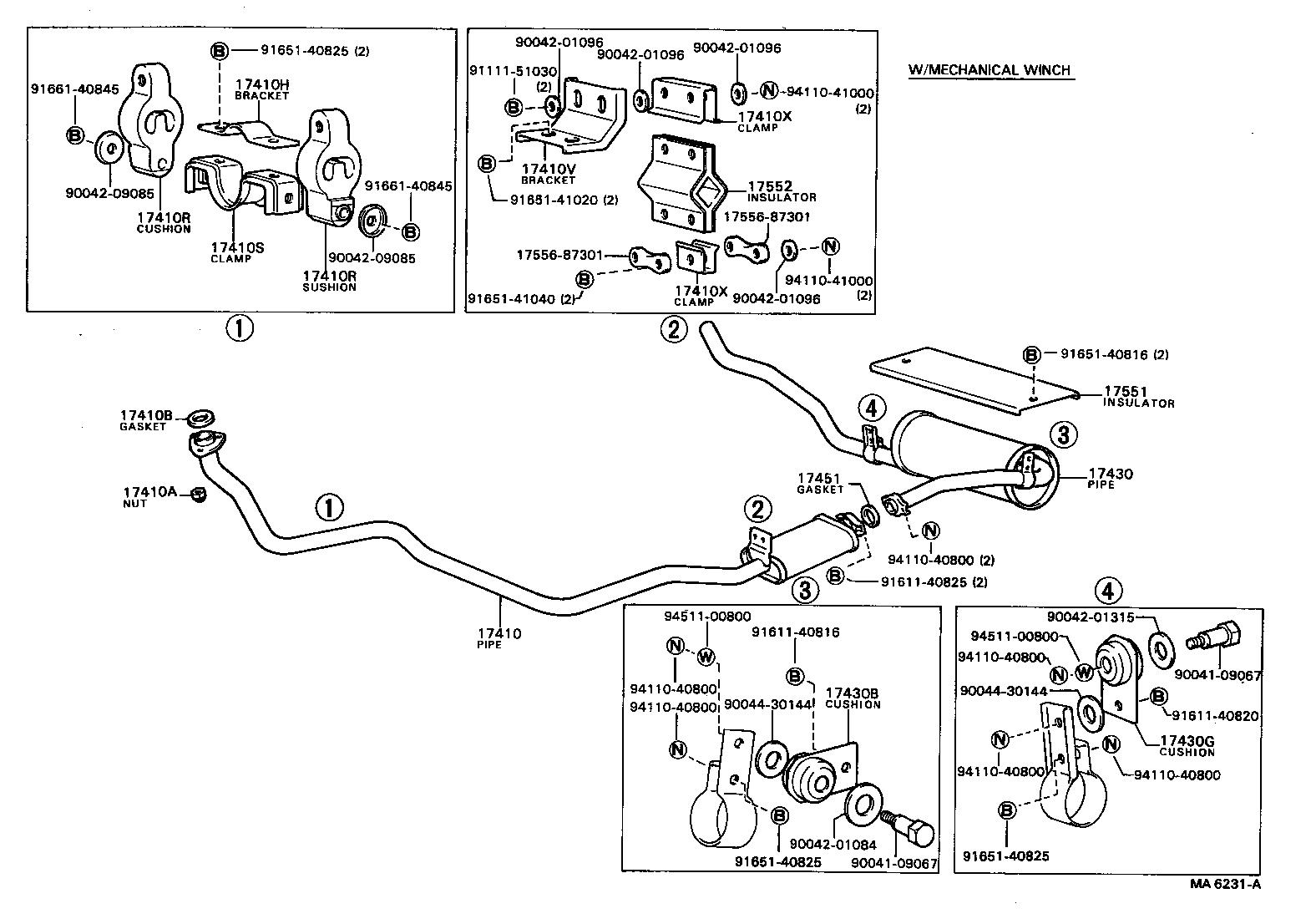

ILLUST NO. 2 OF 2(8210- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-87612 |
L..LD10 |
1 | ||
| 17410-87617 |
L..LD10..VPT W/MECHANICAL WINCH |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10010 |
L..LD10 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90048-17007 |
L..LD10 |
1 | ||
| 17410H - BRACKET, EXHAUST PIPE FRONT (FOR CENTER) | ||||
| 17561-87602 |
L..LD10 |
1 | ||
| 17561-87601 |
L..LD10 |
1 | ||
| 17410R - CUSHION, EXHAUST PIPE FRONT (FOR CENTER) | ||||
| 17567-87702 |
L..LD10 |
2 | ||
| 17410R - CUSHION, EXHAUST PIPE FRONT (FOR CENTER) | ||||
| 17567-87702 |
L..LD10 |
2 | ||
| 17410S - CLAMP NO.1, EXHAUST PIPE FRONT (FOR CENTER) | ||||
| 17581-87602 |
L..LD10 |
1 | ||
| 17581-87601 |
L..LD10 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17545-87601 |
L..LD10..VPT W/MECHANICAL WINCH |
1 | ||
| 17410X - CLAMP NO.1, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17555-87601 |
L..LD10..VPT W/MECHANICAL WINCH,UPR |
1 | ||
| 17556-87601 |
L..LD10..VPT W/MECHANICAL WINCH,LWR |
1 | ||
| 17410X - CLAMP NO.1, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17555-87601 |
L..LD10..VPT W/MECHANICAL WINCH,UPR |
1 | ||
| 17556-87601 |
L..LD10..VPT W/MECHANICAL WINCH,LWR |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-87621 |
L..LD10 |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17553-87601 |
L..LD10 |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17553-87601 |
L..LD10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90048-17007 |
L..LD10 RR |
1 | ||
| 90048-17007 |
L..LD10..VPT W/MECHANICAL WINCH |
1 | ||
| 90917-06020 |
L..LD10 FR |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-87601 |
L..LD10 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-87602 |
L..LD10 |
1 | ||
| Common parts | ||||
| 17556-87301 | ||||
| 90041-09067 | ||||
| 90042-01084 | ||||
| 90042-01096 | ||||
| 90042-01315 | ||||
| 90042-09085 | ||||
| 90044-30144 | ||||
| 91111-51030 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91651-40816 | ||||
| 91651-40825 | ||||
| 91651-41020 | ||||
| 91651-41040 | ||||
| 91661-40845 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
