LD10V-KDCY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

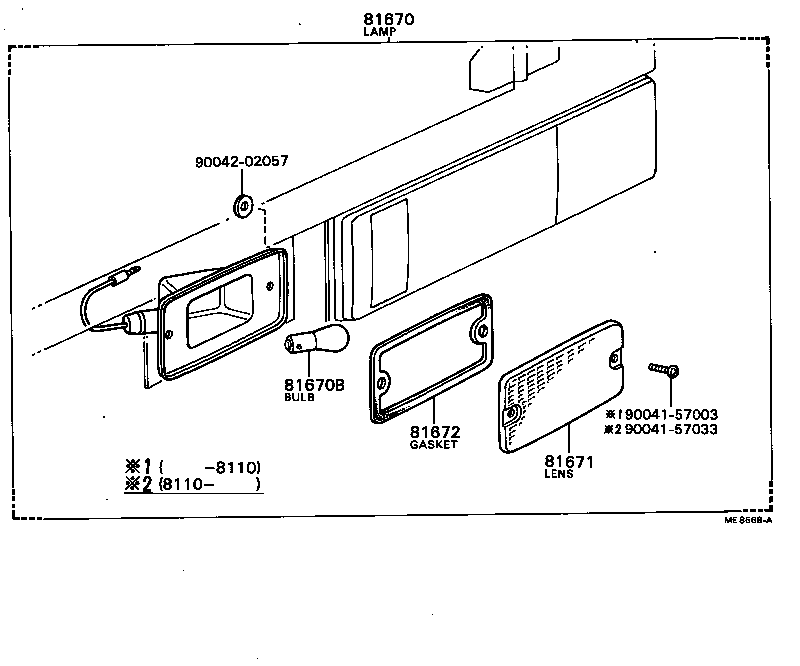

Click highlighted areas on diagram

diagram 81670 81670B 81671 81672 9004157003 9004157033 9004202057
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-87601

LD10

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-12002

LD10

12V 12W

 1
81671 - LENS, BACK-UP LAMP, RH
81671-87203

LD10

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-87203

LD10

 1
Common parts
90041-57003
90041-57033
90042-02057
