LD10V-KDCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

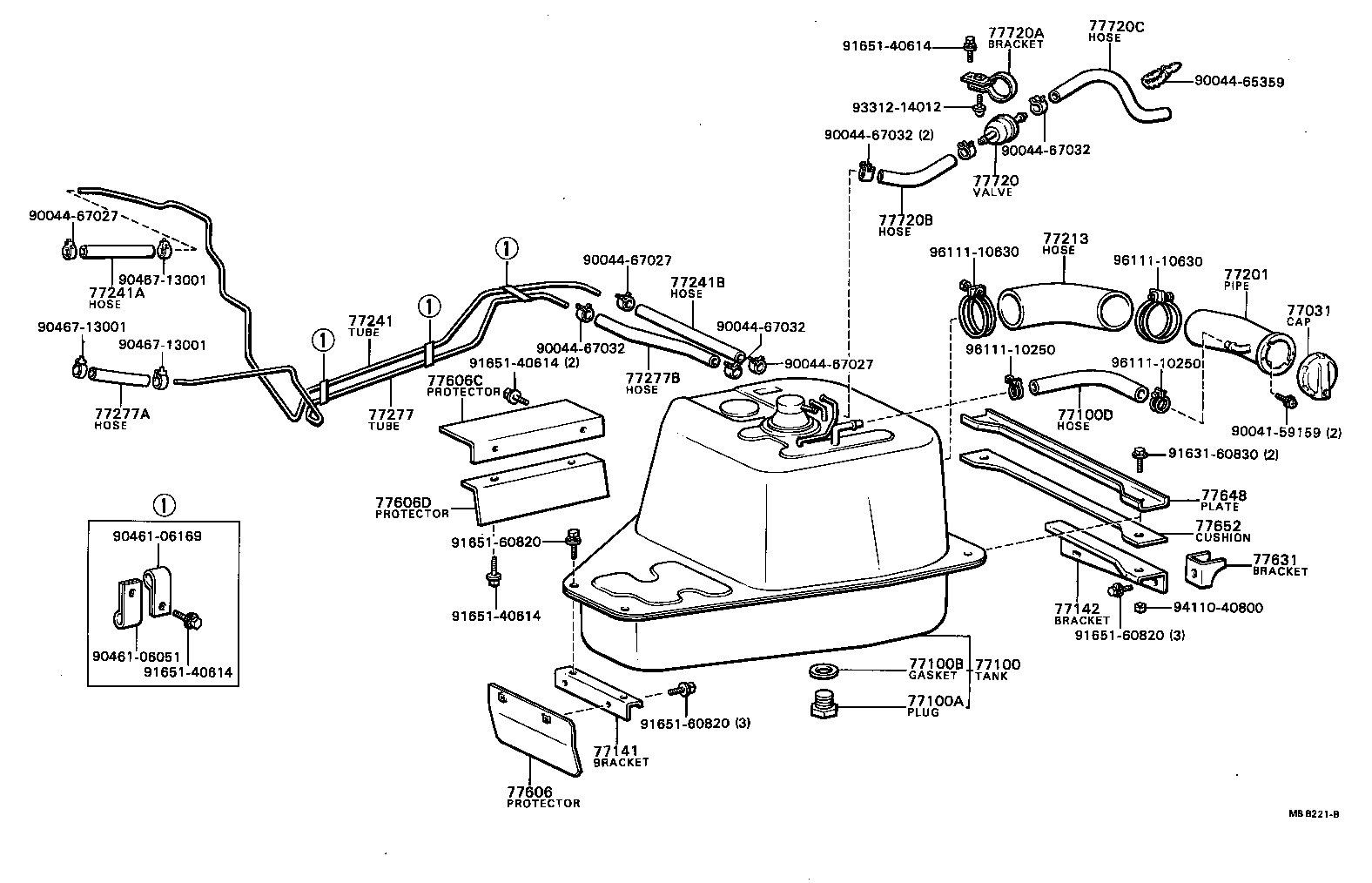

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77301-87601 |
LD10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-87615 |
LD10 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90043-41011 |
LD10 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30120 |
LD10 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90044-45437 |
LD10 |
1 | ||
| 77141 - BRACKET, FUEL TANK MOUNTING, FRONT | ||||
| 77141-87602 |
LD10 |
1 | ||
| 77142 - BRACKET, FUEL TANK MOUNTING, REAR | ||||
| 77142-87602 |
LD10 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-87603 |
LD10 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-87602 |
LD10 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-87605 |
LD10 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LD10 *H,L=280,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 90044-45424 |
LD10 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-87601 |
LD10 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06026 |
LD10 *H,L=260 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90044-45454 |
LD10 長さ=200 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 51494-87603 |
LD10 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 51499-87602 |
LD10 |
1 | ||
| 77606D - PROTECTOR, FUEL TANK, NO.3 | ||||
| 51497-87601 |
LD10 |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77631-87602 |
LD10 |
1 | ||
| 77648 - PLATE, FUEL TANK SET, REAR | ||||
| 77648-87603 |
LD10 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-87602 |
LD10 |
1 | ||
| 77720 - VALVE SUB-ASSY, SAFETY | ||||
| 77710-87603 |
LD10 |
1 | ||
| 77720A - BRACKET, SAFETY VALVE | ||||
| 77731-87602 |
LD10 |
1 | ||
| 77720B - HOSE, FUEL, NO.1(FOR SAFETY VALVE) | ||||
| 90044-45193 |
LD10 |
1 | ||
| 77720C - HOSE, FUEL, NO.2(FOR SAFETY VALVE) | ||||
| 90044-45204 |
LD10 L=265 |
1 | ||
| Common parts | ||||
| 90041-59159 | ||||
| 90044-65359 | ||||
| 90044-67027 | ||||
| 90044-67032 | ||||
| 90461-06051 | ||||
| 90461-06169 | ||||
| 90467-13001 | ||||
| 91631-60830 | ||||
| 91651-40614 | ||||
| 91651-60820 | ||||
| 93312-14012 | ||||
| 94110-40800 | ||||
| 96111-10250 | ||||
| 96111-10630 | ||||
