LD10V-KDCY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

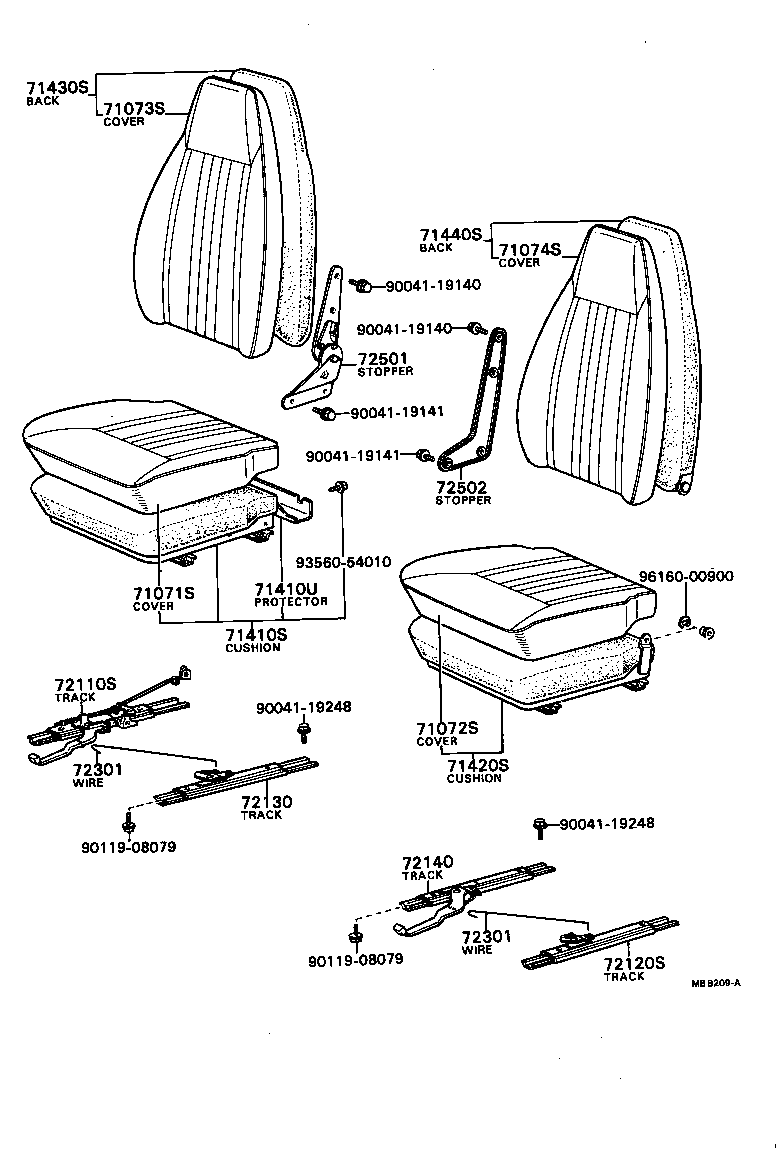

ILLUST NO. 1 OF 2(8003-8110)

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71410U 71420S 71430S 71440S 72110S 72120S 72130 72140 72301 72301 72501 72502 9004119140 9004119140 9004119141 9004119141 9004119248 9004119248 9011908079 9011908079 9356054010 9616000900
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-87612

LD10..DLX

K-TY

 1
71071-87620

LD10..V

FB

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-87621

LD10..V

FB

 1
71072-87613

LD10..DLX

K-TY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-87614

LD10..DLX

K-TY

 1
71073-87623

LD10..V

FB

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-87623

LD10..V

FB

 1
71073-87614

LD10..DLX

K-TY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-87615

LD10..DLX

K-TY

 1
71410-87623

LD10..V

FB

 1
71410U - PROTECTOR, FRONT SEAT CUSHION FRAME
72169-87601

LD10

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-87616

LD10..DLX

K-TY

 1
71420-87625

LD10..VST

FB

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-87617

LD10..DLX

K-TY

 1
71430-87625

LD10..V

FB

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-87627

LD10..VST

FB

 1
71440-87618

LD10..DLX

K-TY

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-87607

LD10

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72140-87602

LD10

 1
72130 - TRACK ASSY, RH SEAT, INNER
72120-87602

LD10

 1
72140 - TRACK ASSY, LH SEAT, INNER
72130-87602

LD10

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72116-87601

LD10

LH

 1
72115-87601

LD10

RH

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72116-87601

LD10

LH

 1
72115-87601

LD10

RH

 1
72501 - STOPPER ASSY, FRONT SEAT BACK, RH
72520-87208

LD10

 1
72502 - STOPPER ASSY, FRONT SEAT BACK, LH
71362-87601

LD10

 1
Common parts
90041-19140
90041-19141
90041-19248
90119-08079
93560-54010
96160-00900

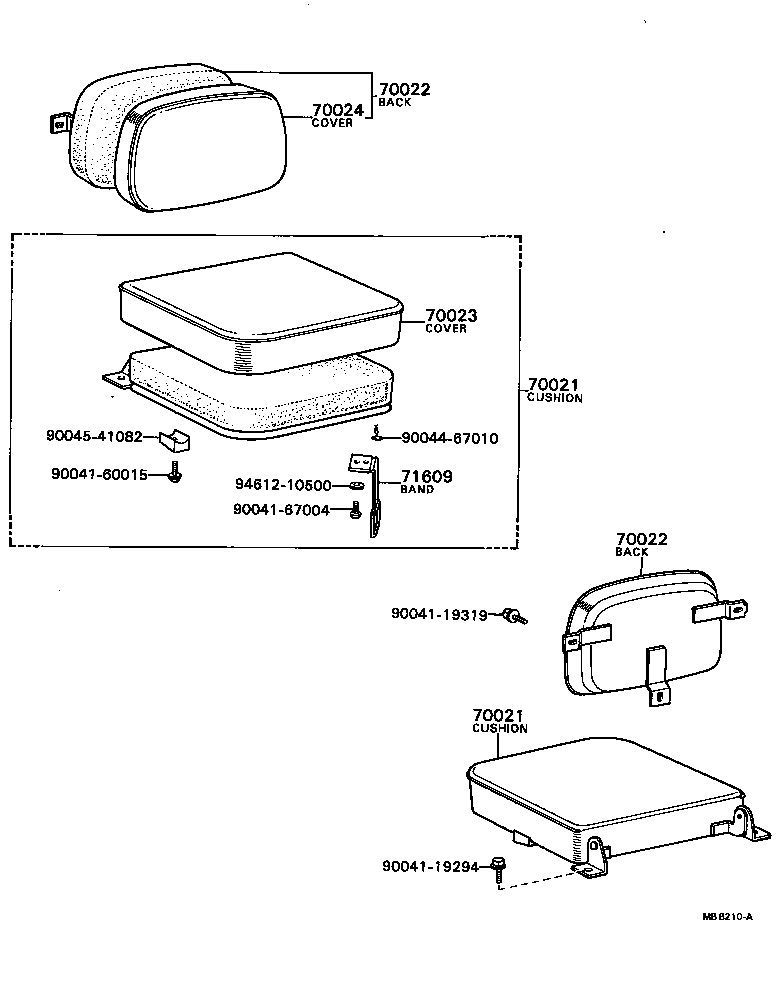

ILLUST NO. 2 OF 2(8003- )V

Click highlighted areas on diagram

diagram 70021 70021 70022 70022 70023 70024 71609 9004119294 9004119319 9004160015 9004167004 9004467010 9004541082 9461210500
Part # Description Qty Price
70021 - CUSHION ASSY, NO.2 SEAT
71450-87611

LD10..04S

FB

 2
71450-87608

LD10..DLX

K-TY

 2
70021 - CUSHION ASSY, NO.2 SEAT
71450-87611

LD10..04S

FB

 2
71450-87608

LD10..DLX

K-TY

 2
70022 - BACK ASSY, NO.2 SEAT
71480-87614

LD10..DLX

K-TY

 2
71480-87619

LD10..VST..04S

FB

 2
70022 - BACK ASSY, NO.2 SEAT
71480-87614

LD10..DLX

K-TY

 2
71480-87619

LD10..VST..04S

FB

 2
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-87608

LD10..DLX

K-TY

 2
71075-87611

LD10..04S

FB

 2
70024 - COVER ASSY, NO.2 SEAT BACK
71077-87610

LD10..DLX

K-TY

 2
71077-87616

LD10..VST..04S

FB

 2
71609 - BAND SUB-ASSY, REAR SIDE SEAT
72601-87605

LD10..04S

 2
Common parts
90041-19294
90041-19319
90041-60015
90041-67004
90044-67010
90045-41082
94612-10500

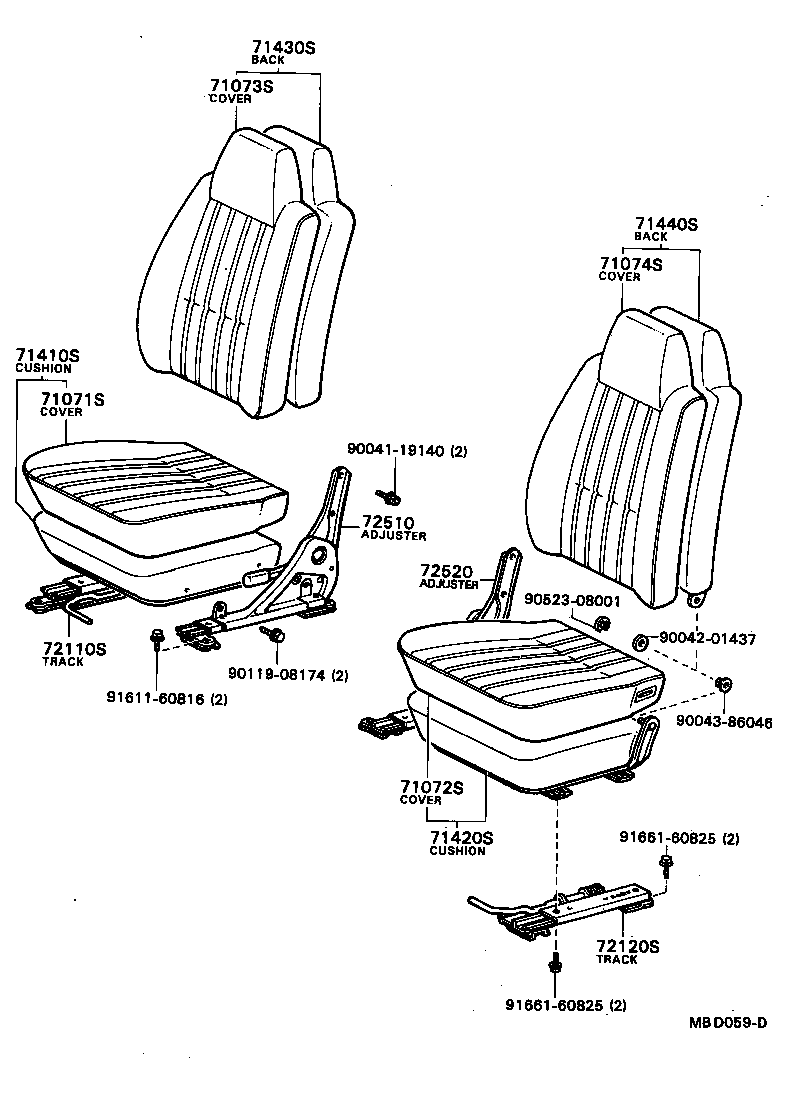

ILLUST NO. 1 OF 2(8110- )

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 72110S 72120S 72510 72520 9004119140 9004201437 9004386046 9011908174 9052308001 9161160816 9166160825 9166160825
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-87612

LD10..DLX

K-TY

 1
71071-87620

LD10..V

FB

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-87621

LD10..V

FB

 1
71072-87613

LD10..DLX

K-TY

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-87614

LD10..DLX

K-TY

 1
71073-87623

LD10..V

FB

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-87623

LD10..V

FB

 1
71073-87614

LD10..DLX

K-TY

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-87615

LD10..DLX

K-TY

 1
71410-87623

LD10..V

FB

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-87616

LD10..DLX

K-TY

 1
71420-87625

LD10..VST

FB

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-87617

LD10..DLX

K-TY

 1
71430-87625

LD10..V

FB

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-87627

LD10..VST

FB

 1
71440-87618

LD10..DLX

K-TY

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-87607

LD10

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72140-87602

LD10

 1
Common parts
90041-19140
90042-01437
90043-86046
90119-08174
90523-08001
91611-60816
91661-60825
