LD10V-KDCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58511 - MAT, FLOOR, FRONT | ||||
| 58510-87609 |
LD10 |
1 | ||
| 58510-87612 |
LD10..TCD,TSD,VST |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58510-87609 |
LD10 |
1 | ||
| 58510-87612 |
LD10..TCD,TSD,VST |
1 | ||
| 58515 - MAT, FLOOR, CENTER | ||||
| 58513-87608 |
LD10..TCD,TSD,VST W/WINCH |
1 | ||
| 58513-87605 |
LD10..TCD,TSD,VST |
1 | ||
| 58551 - MAT, FLOOR, REAR | ||||
| 58514-87605 |
LD10..TCD,TSD,VST |
1 | ||
| Common parts | ||||
| 90530-06001 | ||||

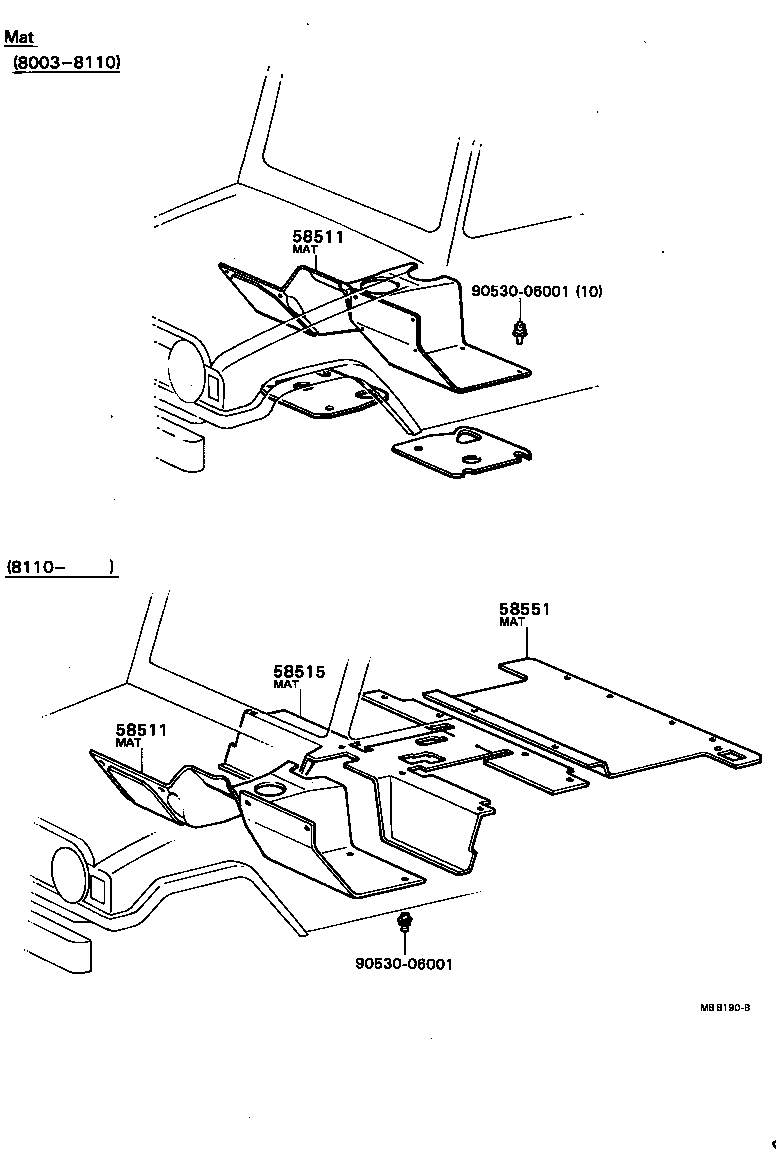

(8110- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90041-19213 | ||||
| 90041-59125 | ||||
| 90041-59194 | ||||
| 90530-06001 | ||||
