LD10V-KDCY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

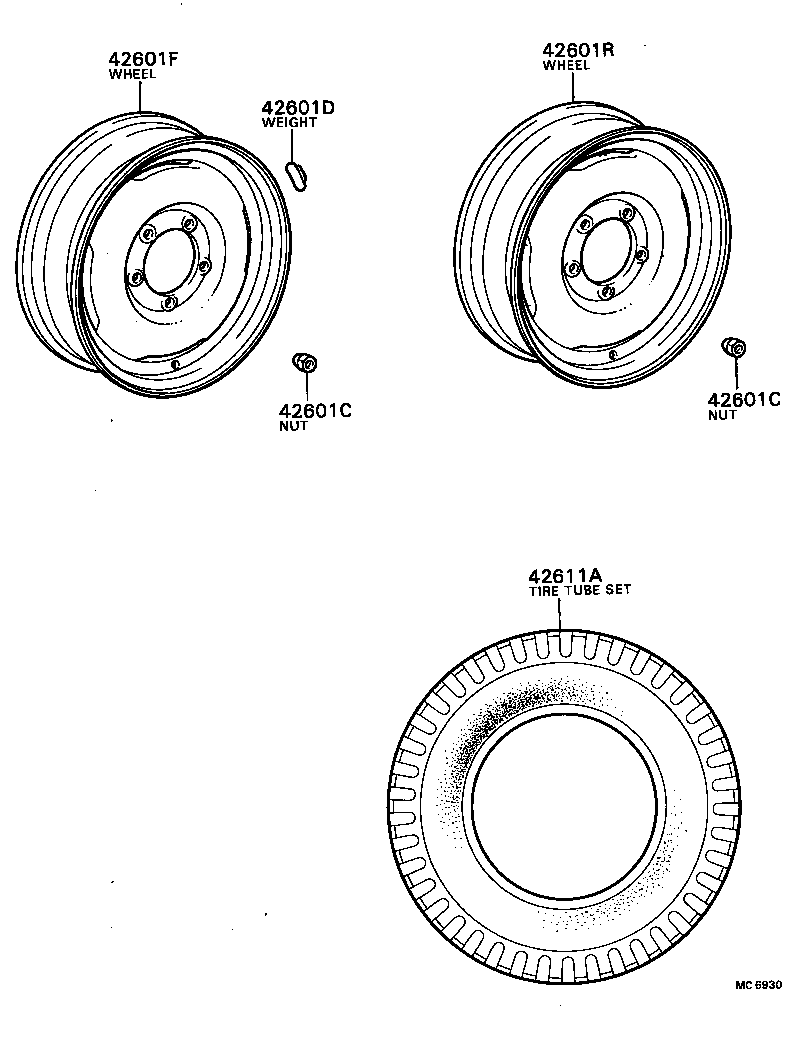

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601F 42601R 42611A
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

LD10

 20
42601C - NUT, HUB (FOR AXLE)
90942-01007

LD10

 20
42601F - WHEEL, DISC (FOR FRONT)
42610-87601

LD10..4F

 2
42601R - WHEEL, DISC (FOR REAR)
42610-87601

LD10..4F

 2
42611A - TIRE TUBE SET OR TUBELESS TIRE
98017-60162

LD10..4F

6.00-16-4PR

 4
98011-78151

LD10

H78-15

 4
