LD10V-KDCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

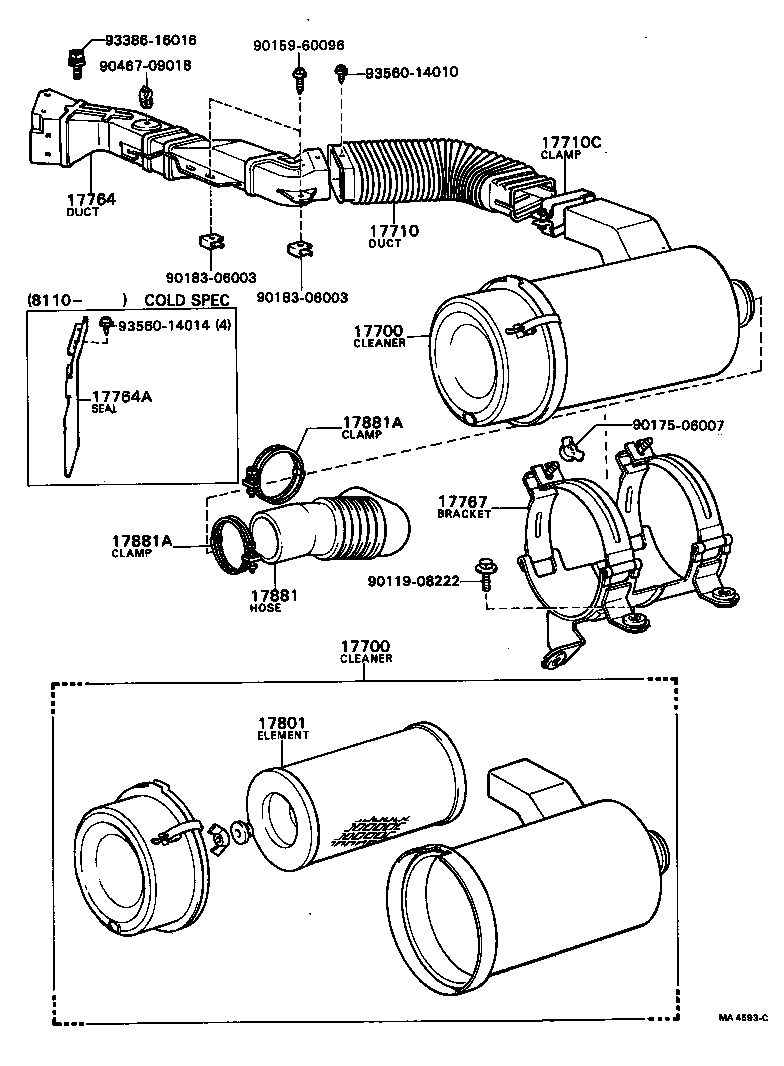

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-87619 |
L..LD10 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-87619 |
L..LD10 |
1 | ||
| 17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1 | ||||
| 53298-87601 |
L..LD10 |
1 | ||
| 17710C - CLAMP(FOR AIR CLEANER INLET DUCT) | ||||
| 90460-01013 |
L..LD10 |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53299-87601 |
L..LD10 |
1 | ||
| 17767 - BRACKET, AIR CLEANER | ||||
| 17850-87601 |
L..LD10 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54040 |
L..LD10 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-87603 |
L..LD10 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LD10 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
L..LD10 |
2 | ||
| Common parts | ||||
| 90119-08222 | ||||
| 90159-60096 | ||||
| 90175-06007 | ||||
| 90183-06003 | ||||
| 90467-09018 | ||||
| 93386-16016 | ||||
| 93560-14010 | ||||
| 93560-14014 | ||||
