LD10V-KCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1981
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

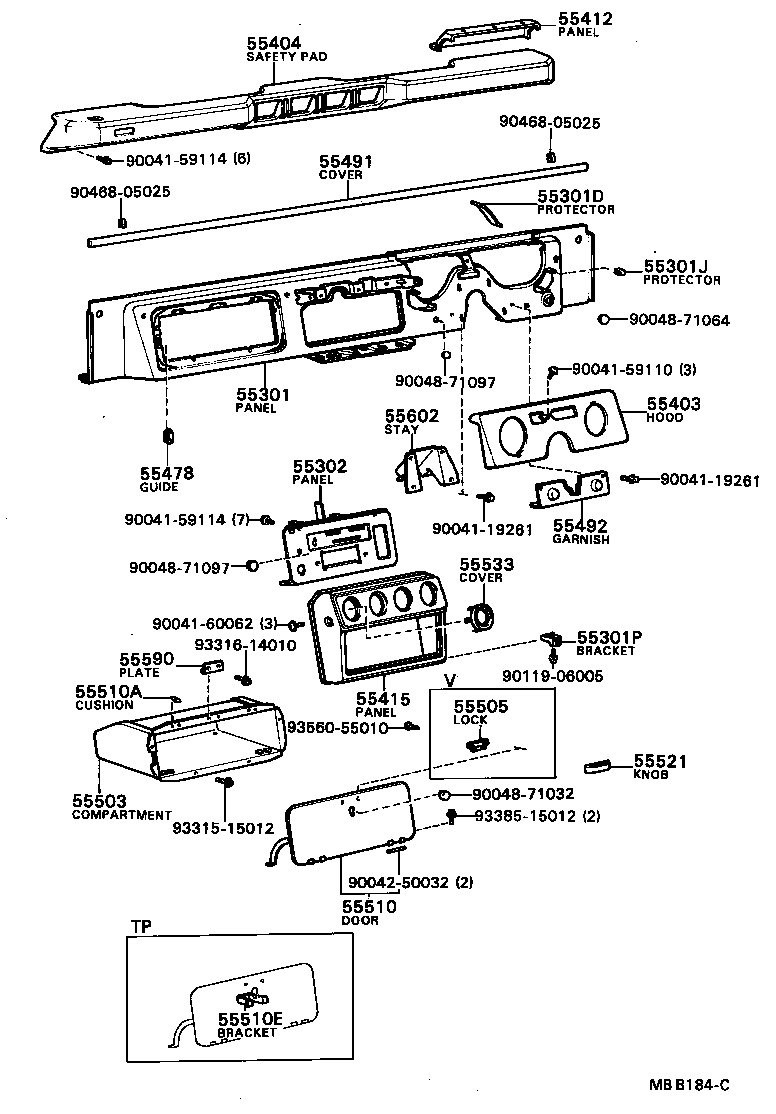

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-87608 |
LD10..STD |
1 | ||
| 55301D - PROTECTOR, WIRE HARNESS | ||||
| 82717-87602 |
LD10 |
1 | ||
| 55301J - PROTECTOR, METER PANEL | ||||
| 55353-87602 |
LD10 |
2 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55302-87605 |
LD10 |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-87601 |
LD10..V |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55411-87601 |
LD10..V |
1 | ||
| 55478 - GUIDE, GLOVE COMPARTMENT DOOR CHECK ARM HOLE | ||||
| 55478-87601 |
LD10 |
1 | ||
| 55491 - COVER, INSTRUMENT PANEL, UPPER | ||||
| 55642-87603 |
LD10..V |
1 | ||
| 55492 - GARNISH OR SAFETY PAD, LOWER, RH | ||||
| 55632-87601 |
LD10 |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55503-87603 |
LD10 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55520-87601 |
LD10..04S |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-87603 |
LD10 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90045-41081 |
LD10 |
2 | ||
| 55521 - KNOB, GLOVE COMPARTMENT DOOR | ||||
| 55521-87501 |
LD10 |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 69682-87605 |
LD10 |
1 | ||
| 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 55672-87603 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-19261 | ||||
| 90041-59110 | ||||
| 90041-59114 | ||||
| 90041-60062 | ||||
| 90042-50032 | ||||
| 90048-71032 | ||||
| 90048-71064 | ||||
| 90048-71097 | ||||
| 90119-06005 | ||||
| 90468-05025 | ||||
| 93315-15012 | ||||
| 93316-14010 | ||||
| 93385-15012 | ||||
| 93560-55010 | ||||
