LD10V-KCY (1980)
Toyota Blizzard

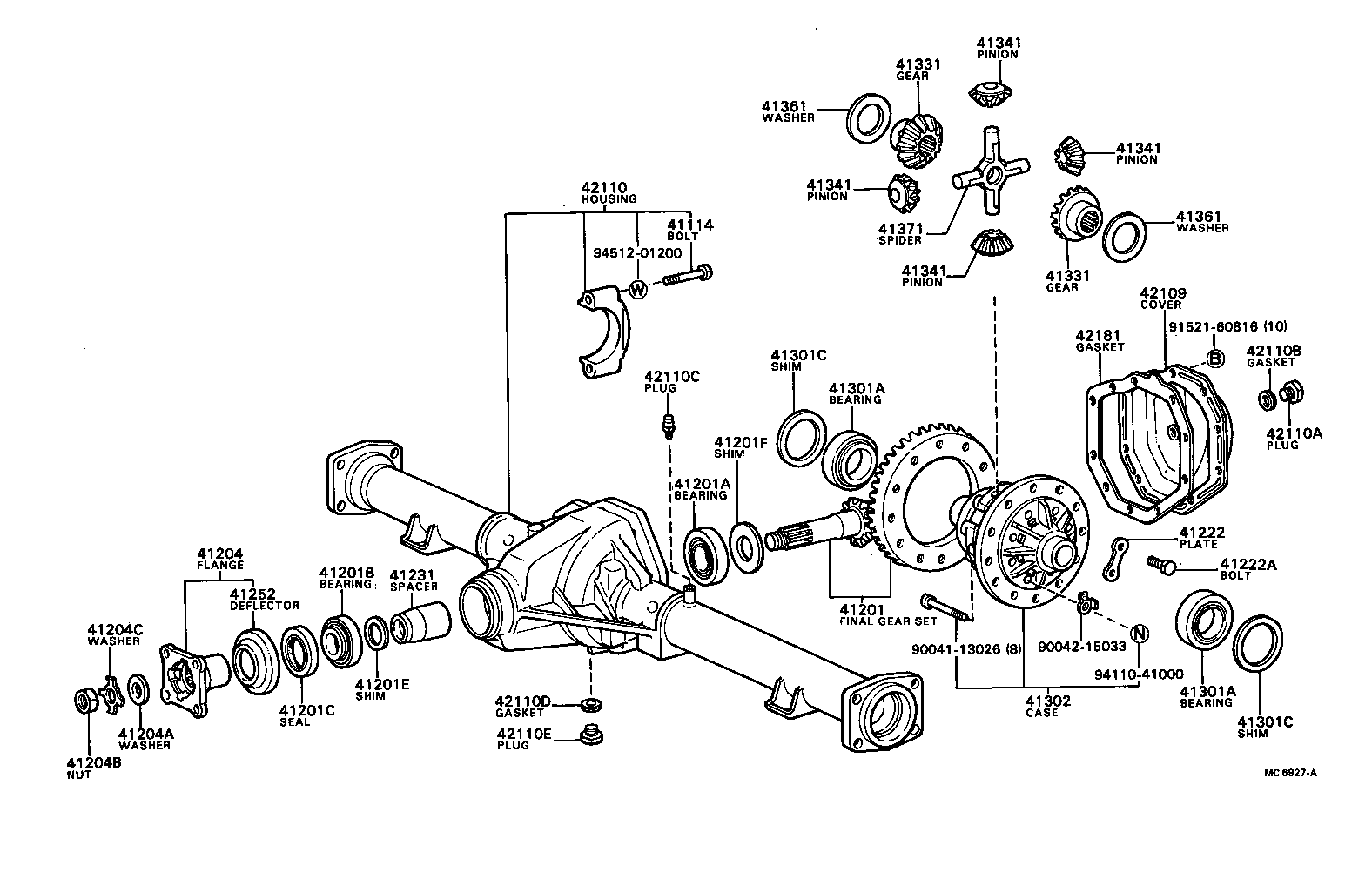

(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90041-01219 |
LD10 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-87606 |
LD10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90043-66011 |
LD10 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97610-30306 |
LD10 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90043-11114 |
LD10 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90045-64124 |
LD10 厚さ=0.08,T=0.08 |
1 | ||
| 90045-64113 |
LD10 厚さ=0.40,T=0.40 |
1 | ||
| 90045-64111 |
LD10 厚さ=0.25,T=0.25 |
1 | ||
| 90045-64112 |
LD10 厚さ=0.30,T=0.30 |
1 | ||
| 90045-64114 |
LD10 厚さ=0.50,T=0.50 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90045-64098 |
LD10 厚さ=3.35,T=3.35 |
1 | ||
| 90045-64097 |
LD10 厚さ=3.30,T=3.30 |
1 | ||
| 90045-64094 |
LD10 厚さ=3.15,T=3.15 |
1 | ||
| 90045-64099 |
LD10 厚さ=0.30,T=0.30 |
1 | ||
| 90045-64095 |
LD10 厚さ=3.20,T=3.20 |
1 | ||
| 90045-64096 |
LD10 厚さ=3.25,T=3.25 |
1 | ||
| 90045-64093 |
LD10 厚さ=3.10,T=3.10 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-87602 |
LD10 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90042-01276 |
LD10 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90041-70137 |
LD10 |
1 | ||
| 41204C - WASHER, LOCK (FOR DRIVE PINION) | ||||
| 90042-15029 |
LD10 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 90042-15035 |
LD10 |
6 | ||
| 90042-15049 |
LD10 W/LSD |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90041-01288 |
LD10 |
12 | ||
| 90041-01295 |
LD10 W/LSD |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-87601 |
LD10 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-87602 |
LD10 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97600-30209 |
LD10 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97600-30209 |
LD10 |
2 | ||
| 41301C - SHIM, DIFFERENTIAL BEARING ADJUSTING INNER | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 41301C - SHIM, DIFFERENTIAL BEARING ADJUSTING INNER | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-87603 |
LD10 W/LSD |
1 | ||
| 41301-87602 |
LD10 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87602 |
LD10 W/LSD |
2 | ||
| 41331-87601 |
LD10 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87602 |
LD10 W/LSD |
2 | ||
| 41331-87601 |
LD10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-87302 |
LD10 |
1 | ||
| 42109 - COVER SUB-ASSY, REAR AXLE HOUSING | ||||
| 42109-87604 |
LD10 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-87606 |
LD10 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
LD10 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LD10 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LD10 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LD10 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LD10 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-87603 |
LD10 |
1 | ||
| Common parts | ||||
| 90041-13026 | ||||
| 90042-15033 | ||||
| 91521-60816 | ||||
| 94110-41000 | ||||
| 94512-01200 | ||||

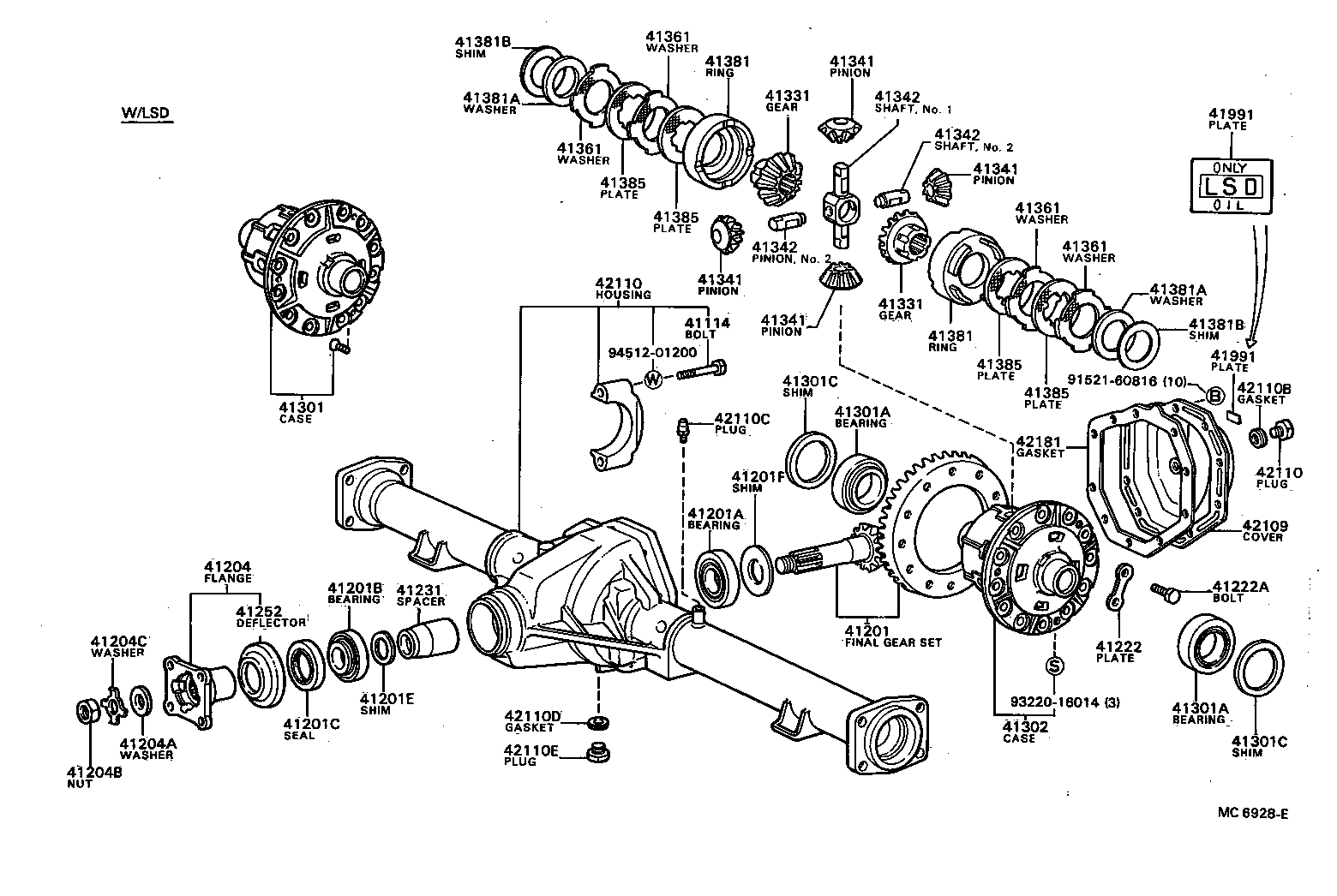

(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90041-01219 |
LD10 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-87606 |
LD10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90043-66011 |
LD10 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97610-30306 |
LD10 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90043-11114 |
LD10 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90045-64124 |
LD10 厚さ=0.08,T=0.08 |
1 | ||
| 90045-64113 |
LD10 厚さ=0.40,T=0.40 |
1 | ||
| 90045-64111 |
LD10 厚さ=0.25,T=0.25 |
1 | ||
| 90045-64112 |
LD10 厚さ=0.30,T=0.30 |
1 | ||
| 90045-64114 |
LD10 厚さ=0.50,T=0.50 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90045-64098 |
LD10 厚さ=3.35,T=3.35 |
1 | ||
| 90045-64097 |
LD10 厚さ=3.30,T=3.30 |
1 | ||
| 90045-64094 |
LD10 厚さ=3.15,T=3.15 |
1 | ||
| 90045-64099 |
LD10 厚さ=0.30,T=0.30 |
1 | ||
| 90045-64095 |
LD10 厚さ=3.20,T=3.20 |
1 | ||
| 90045-64096 |
LD10 厚さ=3.25,T=3.25 |
1 | ||
| 90045-64093 |
LD10 厚さ=3.10,T=3.10 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-87602 |
LD10 |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90042-01276 |
LD10 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90041-70137 |
LD10 |
1 | ||
| 41204C - WASHER, LOCK (FOR DRIVE PINION) | ||||
| 90042-15029 |
LD10 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 90042-15035 |
LD10 |
6 | ||
| 90042-15049 |
LD10 W/LSD |
6 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90041-01288 |
LD10 |
12 | ||
| 90041-01295 |
LD10 W/LSD |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-87601 |
LD10 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-87602 |
LD10 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41320-87605 |
LD10 W/LSD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97600-30209 |
LD10 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 97600-30209 |
LD10 |
2 | ||
| 41301C - SHIM, DIFFERENTIAL BEARING ADJUSTING INNER | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 41301C - SHIM, DIFFERENTIAL BEARING ADJUSTING INNER | ||||
| 90045-64101 |
LD10 T=2.65 |
2 | ||
| 90045-64104 |
LD10 T=2.80 |
2 | ||
| 90045-64102 |
LD10 T=2.70 |
2 | ||
| 90045-64109 |
LD10 T=3.05 |
2 | ||
| 90045-64105 |
LD10 T=2.85 |
2 | ||
| 90045-64103 |
LD10 T=2.75 |
2 | ||
| 90045-64107 |
LD10 T=2.95 |
2 | ||
| 90045-64110 |
LD10 T=3.10 |
2 | ||
| 90045-64106 |
LD10 T=2.90 |
2 | ||
| 90045-64108 |
LD10 T=3.00 |
2 | ||
| 90045-64117 |
LD10 T=2.50 |
2 | ||
| 90045-64122 |
LD10 T=3.25 |
2 | ||
| 90045-64123 |
LD10 T=3.30 |
2 | ||
| 90045-64120 |
LD10 T=3.15 |
2 | ||
| 90045-64118 |
LD10 T=2.55 |
2 | ||
| 90045-64116 |
LD10 T=2.45 |
2 | ||
| 90045-64121 |
LD10 T=3.20 |
2 | ||
| 90045-64119 |
LD10 T=2.60 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-87603 |
LD10 W/LSD |
1 | ||
| 41301-87602 |
LD10 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87602 |
LD10 W/LSD |
2 | ||
| 41331-87601 |
LD10 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-87602 |
LD10 W/LSD |
2 | ||
| 41331-87601 |
LD10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-87302 |
LD10 |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-87602 |
LD10 NO.1 |
1 | ||
| 41342-87610 |
LD10 NO.2 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-87602 |
LD10 NO.1 |
1 | ||
| 41342-87610 |
LD10 NO.2 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-87602 |
LD10 NO.1 |
1 | ||
| 41342-87610 |
LD10 NO.2 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-87601 |
LD10 W/LSD |
4 | ||
| 41361-87302 |
LD10 厚さ=0.80,T=0.8 |
2 | ||
| 41361-87304 |
LD10 厚さ=1.00,T=1.0 |
2 | ||
| 41381 - RING, CLUTCH PRESSURE | ||||
| 41381-87601 |
LD10 W/LSD |
2 | ||
| 41381 - RING, CLUTCH PRESSURE | ||||
| 41381-87601 |
LD10 W/LSD |
2 | ||
| 41381A - WASHER, CONICAL SPRING | ||||
| 90042-08001 |
LD10 W/LSD |
2 | ||
| 41381A - WASHER, CONICAL SPRING | ||||
| 90042-08001 |
LD10 W/LSD |
2 | ||
| 41381B - SHIM | ||||
| 90045-64141 |
LD10 T=0.1,W/LSD |
2 | ||
| 90045-64142 |
LD10 T=0.2,W/LSD |
2 | ||
| 90045-64143 |
LD10 T=0.5,W/LSD |
2 | ||
| 41381B - SHIM | ||||
| 90045-64141 |
LD10 T=0.1,W/LSD |
2 | ||
| 90045-64142 |
LD10 T=0.2,W/LSD |
2 | ||
| 90045-64143 |
LD10 T=0.5,W/LSD |
2 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-87601 |
LD10 W/LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-87601 |
LD10 W/LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-87601 |
LD10 W/LSD |
4 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-87601 |
LD10 W/LSD |
4 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
LD10 W/LSD |
1 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
LD10 W/LSD |
1 | ||
| 42109 - COVER SUB-ASSY, REAR AXLE HOUSING | ||||
| 42109-87604 |
LD10 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-87606 |
LD10 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-87606 |
LD10 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
LD10 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LD10 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
LD10 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
LD10 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-87603 |
LD10 |
1 | ||
| Common parts | ||||
| 91521-60816 | ||||
| 93220-16014 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
