LD10V-KCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1981
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )4F

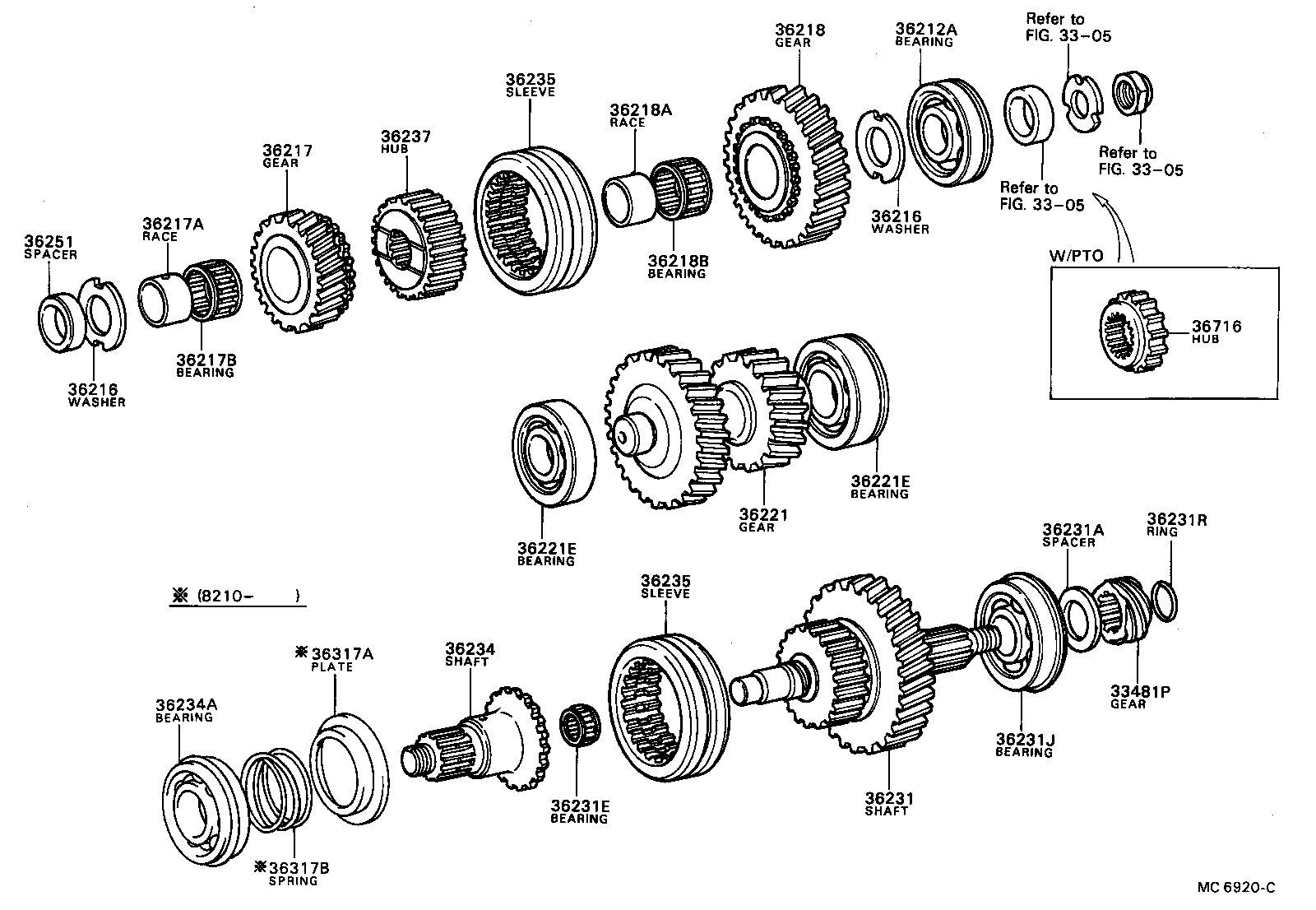

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-87604 |
LD10 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90043-63066 |
LD10..4F |
1 | ||
| 36216 - WASHER, TRANSFER INPUT GEAR THRUST | ||||
| 36216-87603 |
LD10 |
2 | ||
| 36216 - WASHER, TRANSFER INPUT GEAR THRUST | ||||
| 36216-87603 |
LD10 |
2 | ||
| 36217 - GEAR, TRANSFER LOW SPEED INPUT | ||||
| 36217-87605 |
LD10 |
1 | ||
| 36217A - RACE, TRANSFER INPUT LOW SPEED GEAR BEARING, INNER | ||||
| 36219-87603 |
LD10 |
1 | ||
| 36217B - BEARING (FOR INPUT HIGH SPEED GEAR) | ||||
| 90043-64023 |
LD10 |
1 | ||
| 36218 - GEAR, TRANSFER HI SPEED INPUT | ||||
| 36218-87609 |
LD10 |
1 | ||
| 36218A - RACE, TRANSFER INPUT HIGH SPEED GEAR BEARING, INNER | ||||
| 36219-87603 |
LD10 |
1 | ||
| 36218B - BEARING (FOR INPUT LOW SPEED GEAR) | ||||
| 90043-64023 |
LD10 |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-87605 |
LD10 |
1 | ||
| 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) | ||||
| 90043-63051 |
LD10 RR |
1 | ||
| 97100-06306 |
LD10 FR |
1 | ||
| 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) | ||||
| 90043-63051 |
LD10 RR |
1 | ||
| 97100-06306 |
LD10 FR |
1 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-87602 |
LD10 |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36273-87602 |
LD10 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90043-64024 |
LD10 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90043-63059 |
LD10 |
1 | ||
| 36231R - RING, O (FOR TRANSFER OUTPUT SHAFT) | ||||
| 96710-03030 |
LD10 |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-87601 |
LD10 |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 97153-06208 |
LD10 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 33363-87304 |
LD10 |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 33363-87304 |
LD10 |
2 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36238-87603 |
LD10 |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-87602 |
LD10..4F |
1 | ||
| Linked diagrams | ||||
| 3305 | ||||
