LD10V-KCY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1981
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )4F

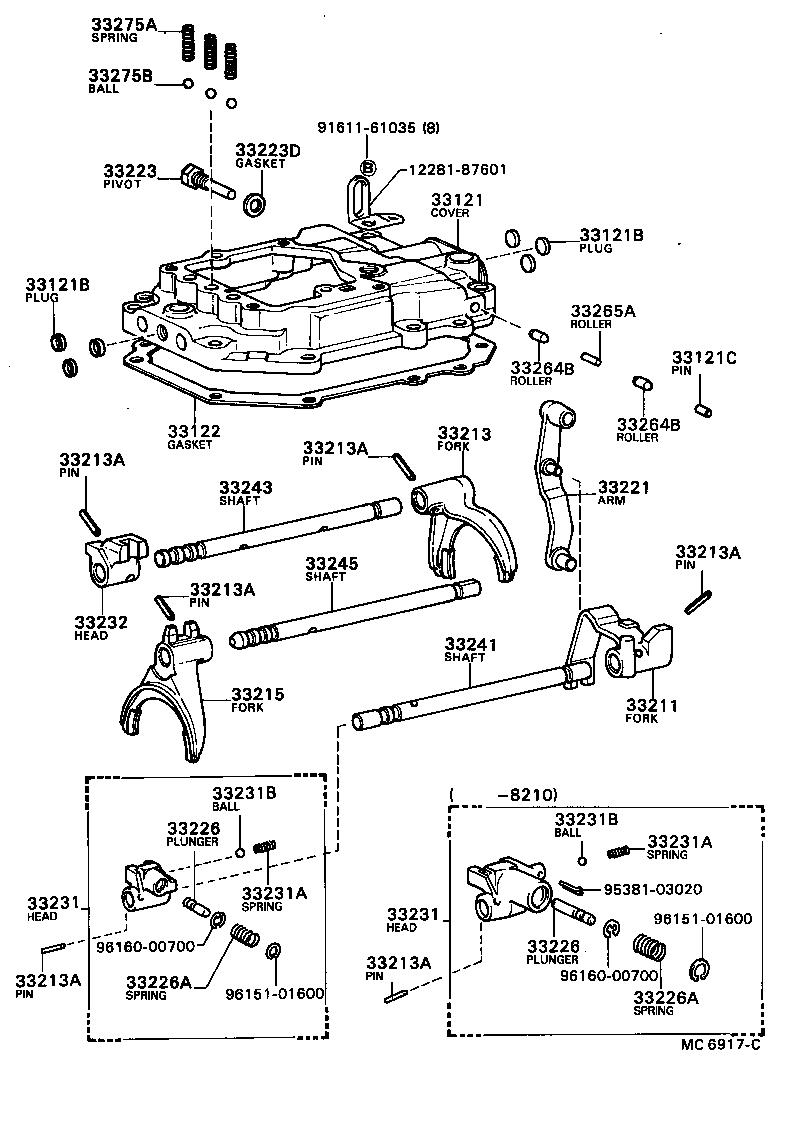

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-87304 |
LD10 |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-11400 |
LD10 |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-11400 |
LD10 |
6 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90042-50074 |
LD10 |
1 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-87302 |
LD10 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-87305 |
LD10..4F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-87302 |
LD10 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90042-54021 |
LD10 |
6 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-87304 |
LD10 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-87304 |
LD10 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-87302 |
LD10 |
1 | ||
| 33223D - GASKET(FOR SHIFT ARM PIVOT) | ||||
| 90044-30097 |
LD10 REVERSE |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-87601 |
LD10 |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-87601 |
LD10 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90045-01138 |
LD10 |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90045-01138 |
LD10 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-87603 |
LD10 |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-87603 |
LD10 |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90045-01109 |
LD10 |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90045-01109 |
LD10 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90043-60011 |
LD10 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90043-60011 |
LD10 |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-87301 |
LD10..4F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-87304 |
LD10..4F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-87301 |
LD10 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-87303 |
LD10 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90043-61010 |
LD10 |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90043-61010 |
LD10 |
2 | ||
| 33265A - ROLLER, NO.2 (FOR INTER LOCK) | ||||
| 90043-61011 |
LD10 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90045-01170 |
LD10 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
LD10 |
3 | ||
| Common parts | ||||
| 12281-87601 | ||||
| 91611-61035 | ||||
| 95381-03020 | ||||
| 96151-01600 | ||||
| 96160-00700 | ||||
