LD10-KY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1981
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

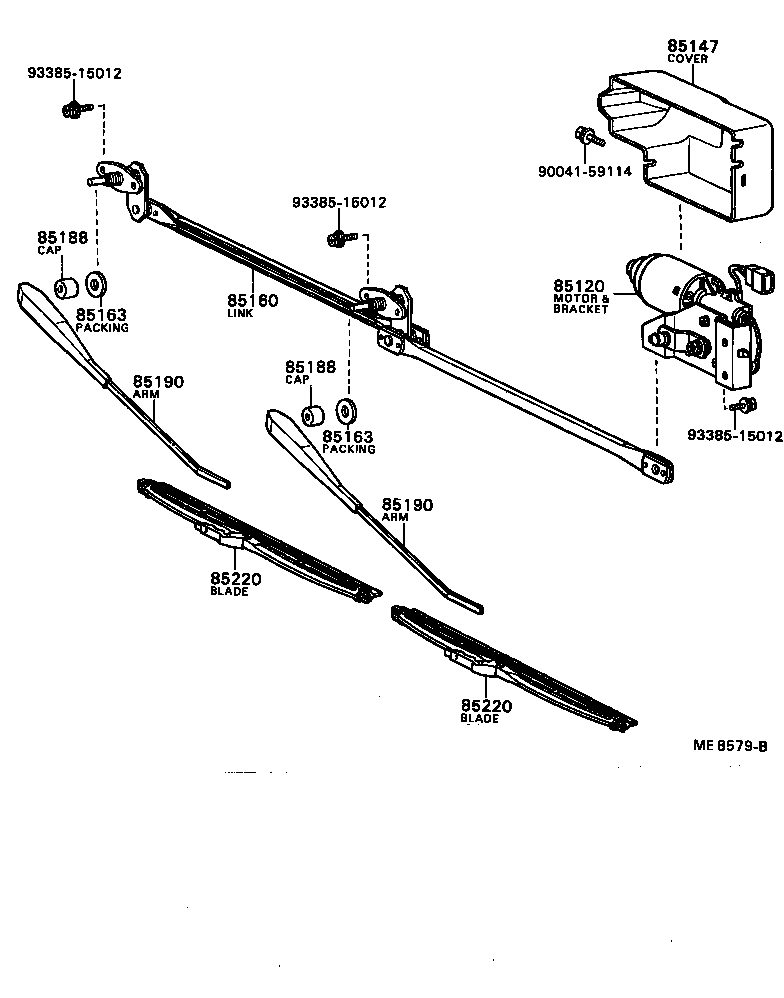

Click highlighted areas on diagram

diagram 85120 85147 85160 85163 85163 85188 85188 85190 85190 85220 85220 9004159114 9338515012 9338515012 9338515012
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-87606

LD10

 1
85147 - COVER, WINDSHIELD WIPER MOTOR
85147-87603

LD10

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-87603

LD10

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85163-87601

LD10

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85163-87601

LD10

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-55010

LD10

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-55010

LD10

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87603

LD10

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-87603

LD10

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-87601

LD10

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-87601

LD10

 2
Common parts
90041-59114
93385-15012
