LD10-KY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1981
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

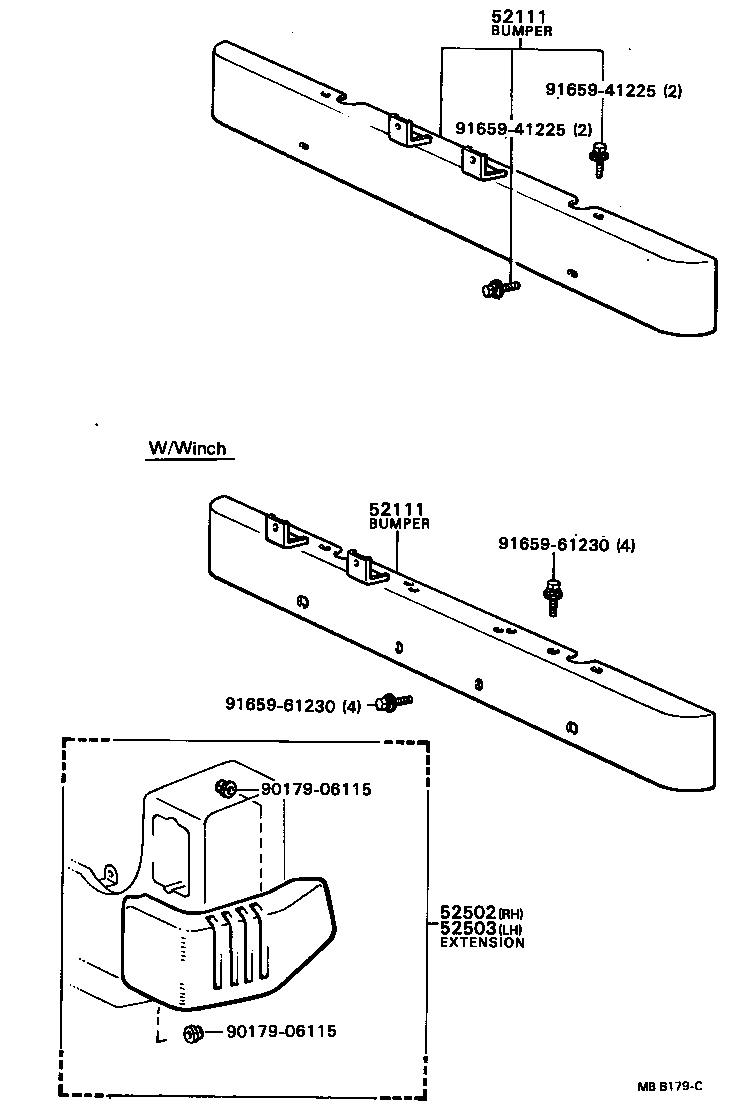

Click highlighted areas on diagram

diagram 52111 52111 52502 52503 9017906115 9017906115 9165941225 9165941225 9165961230 9165961230
Part # Description Qty Price
52111 - BUMPER ASSY, FRONT
52110-87607

LD10

W/WINCH

 1
52110-87684

LD10

 1
52111 - BUMPER ASSY, FRONT
52110-87607

LD10

W/WINCH

 1
52110-87684

LD10

 1
Common parts
90179-06115
91659-41225
91659-61230
