LD10-KSY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

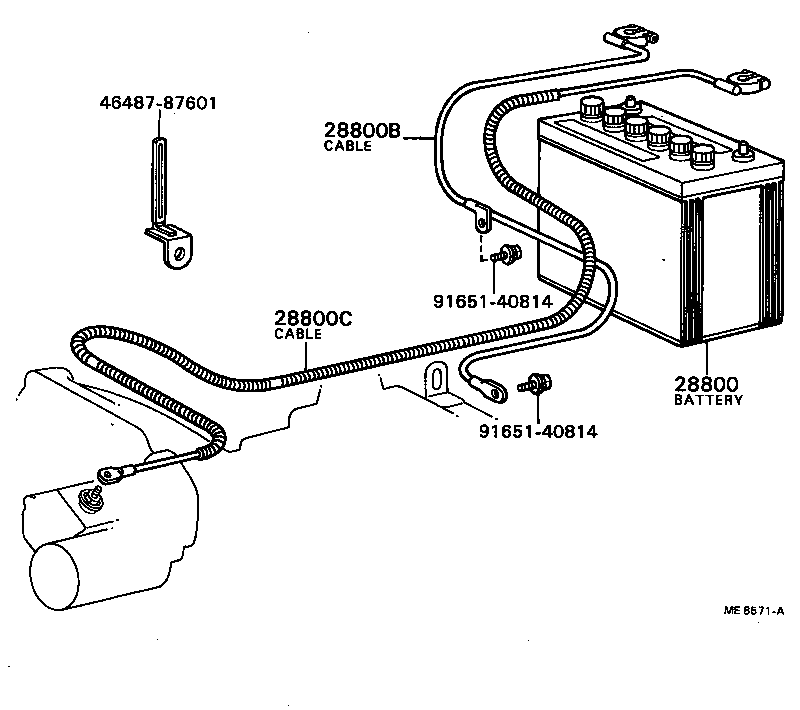

Click highlighted areas on diagram

diagram 28800 28800B 28800C 4648787601 9165140814 9165140814
Part # Description Qty Price
28800 - BATTERY
28800-87328

L..LD10

N100

 1
28800-87614

L..LD10

NX200-10

 1
28800B - CABLE, BATTERY TO GROUND
90049-72040

L..LD10

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01348

L..LD10

 1
Common parts
46487-87601
91651-40814
