LD10-KSY (1980)
Toyota Blizzard
Production
Mar 1980
-
Oct 1982
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )

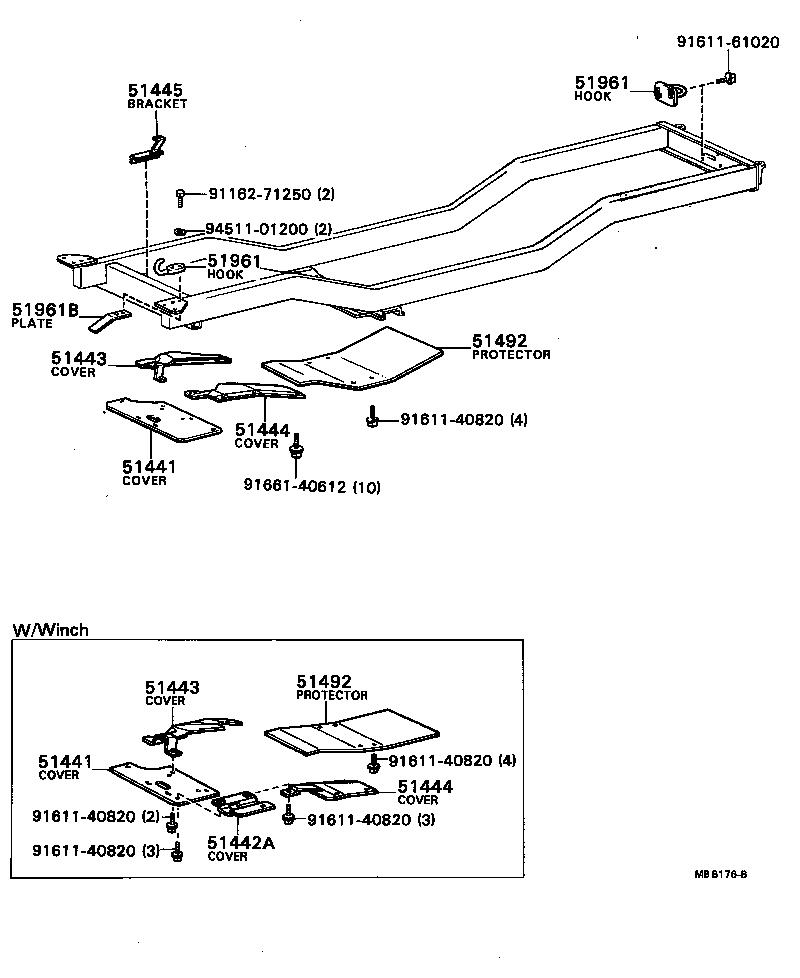

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-87607 |
LD10 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-87607 |
LD10 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51442-87610 |
LD10 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51442-87610 |
LD10 |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-87617 |
LD10 |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-87617 |
LD10 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-87601 |
LD10 |
1 | ||
| 51492 - PROTECTOR, PARKING BRAKE | ||||
| 51492-87602 |
LD10..4F |
1 | ||
| 51492 - PROTECTOR, PARKING BRAKE | ||||
| 51492-87602 |
LD10..4F |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51962-87601 |
LD10 RR |
1 | ||
| 51961-60010 |
LD10 FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51962-87601 |
LD10 RR |
1 | ||
| 51961-60010 |
LD10 FR |
1 | ||
| 51961B - PLATE, FRONT HOOK SET | ||||
| 51968-87601 |
LD10 |
1 | ||
| Common parts | ||||
| 91162-71250 | ||||
| 91611-40820 | ||||
| 91611-61020 | ||||
| 91661-40612 | ||||
| 94511-01200 | ||||
