LD10-KSY (1980)

Toyota Blizzard

Production Mar 1980 - Oct 1982
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

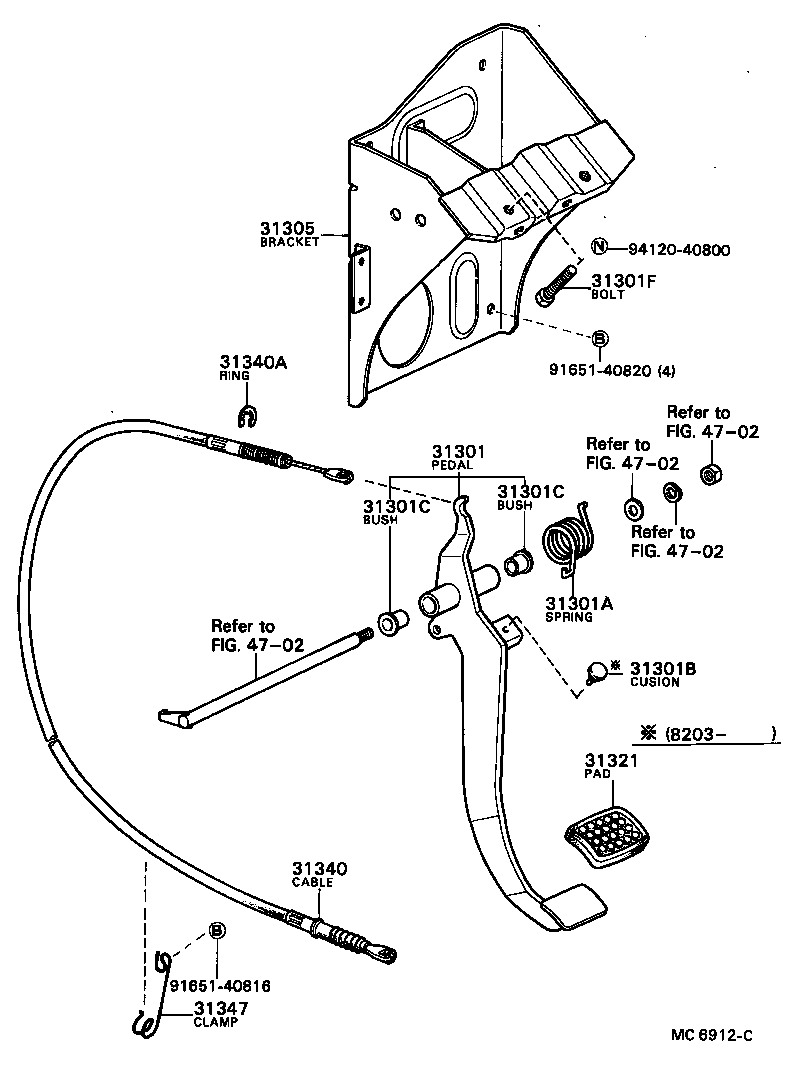

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31340 31340A 31347 4702 4702 4702 4702 9165140816 9165140820 9412040800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-87608

LD10

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90045-08129

LD10

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90043-81005

LD10

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90043-81005

LD10

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90041-01167

LD10

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
31305-87611

LD10

 1
31321 - PAD, CLUTCH PEDAL
31321-87601

LD10

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-87612

LD10

 1
31340A - RING, E(FOR CLUTCH RELEASE CABLE)
90045-23007

LD10

 1
31347 - CLAMP, CLUTCH CABLE
31347-87601

LD10

 1
Common parts
91651-40816
91651-40820
94120-40800
Linked diagrams
4702
