GRE156H-CHTNK (2007)

Toyota Blade

Production Aug 2007 - Dec 2009
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )GRE156

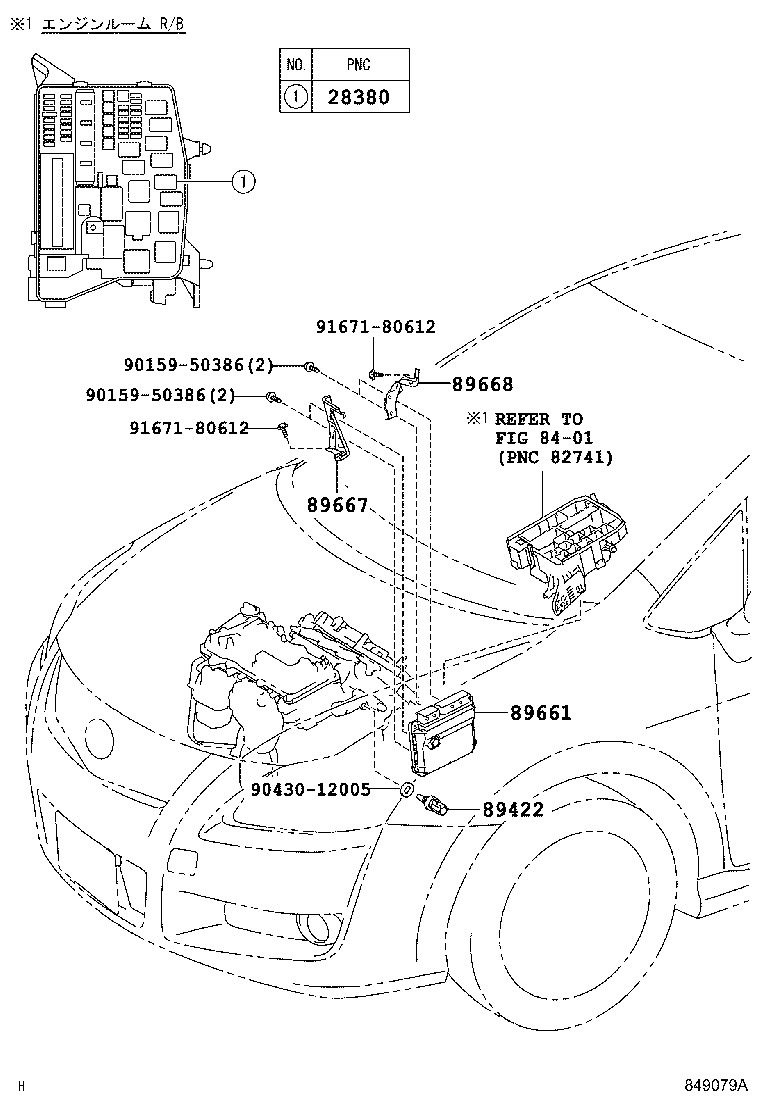

Click highlighted areas on diagram

diagram 28380 8401 89422 89661 89667 89668 9015950386 9015950386 9043012005 9167180612 9167180612
Part # Description Qty Price
28380 - RELAY ASSY, FUEL PUMP
90987-04004

2GRFE..GRE156

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

GRE156

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12E20

GRE156

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-12210

AZE15#,GRE156

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12180

AZE15#,GRE156

 1
Common parts
90159-50386
90430-12005
91671-80612
Linked diagrams
8401
