GRE156H-CHTEK (2007)
Toyota Blade
Production
Aug 2007
-
Dec 2009
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612-0912)

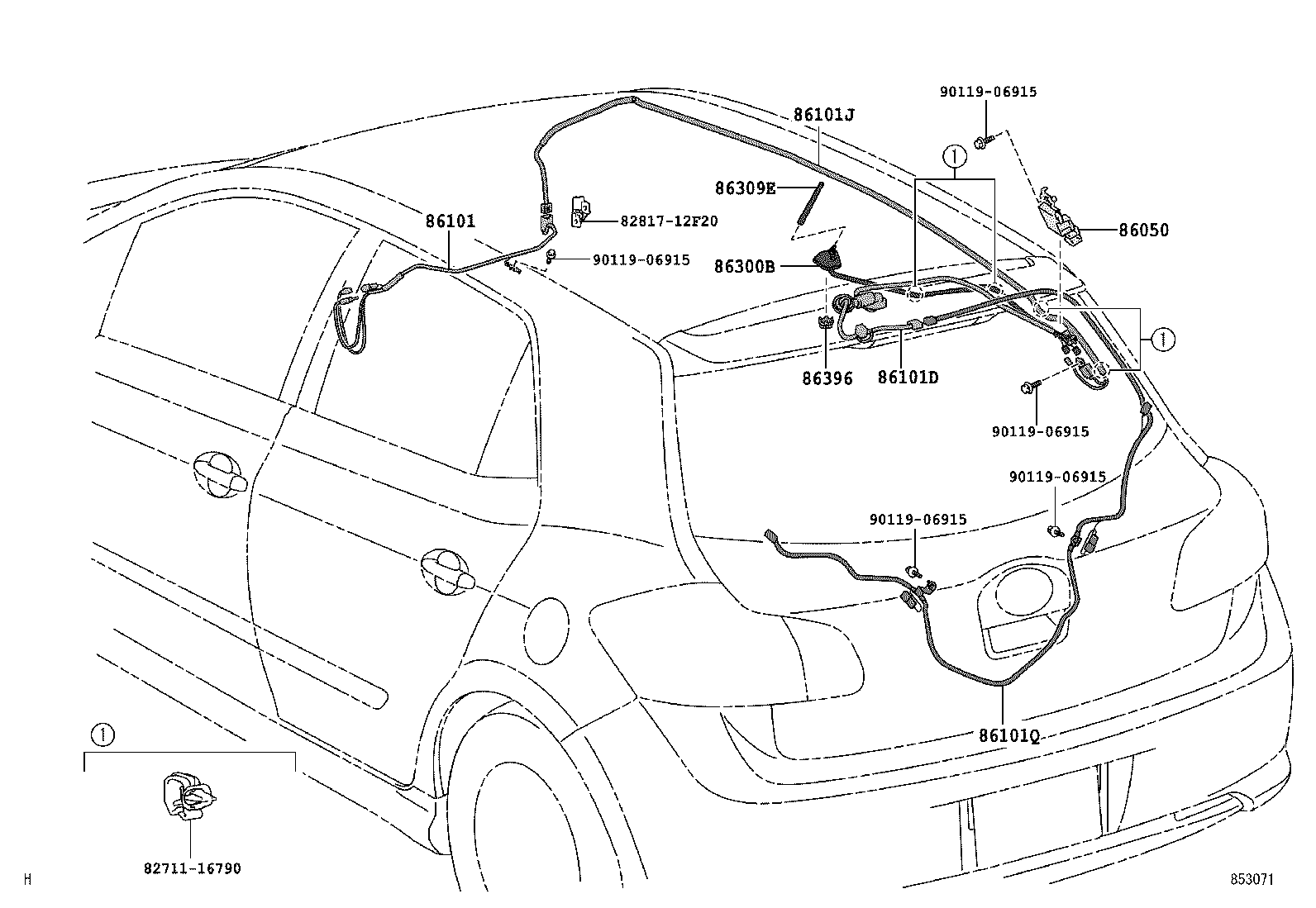

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-12040 |
AZE15#,GRE156 ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12460 |
AZE15#,GRE156 |
1 | ||
| 86101-12490 |
AZE15#,GRE156 ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-12470 |
AZE15#,GRE156 ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-12440 |
AZE15#,GRE156 ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 86101-12410 |
AZE15#,GRE156 |
1 | ||
| 86101Q - CORD SUB-ASSY, ANTENNA, NO.4 | ||||
| 86101-12590 |
AZE15#,GRE156 ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ 6ｽﾋﾟｰｶ |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-12850 |
AZE15#,GRE156 |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-20310 |
AZE15#,GRE156 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-20040 |
AZE15#,GRE156 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82817-12F20 | ||||
| 90119-06915 | ||||
