GRE156H-CHTEK (2007)

Toyota Blade

Production Aug 2007 - Dec 2009
Engine 2GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )2GRFE

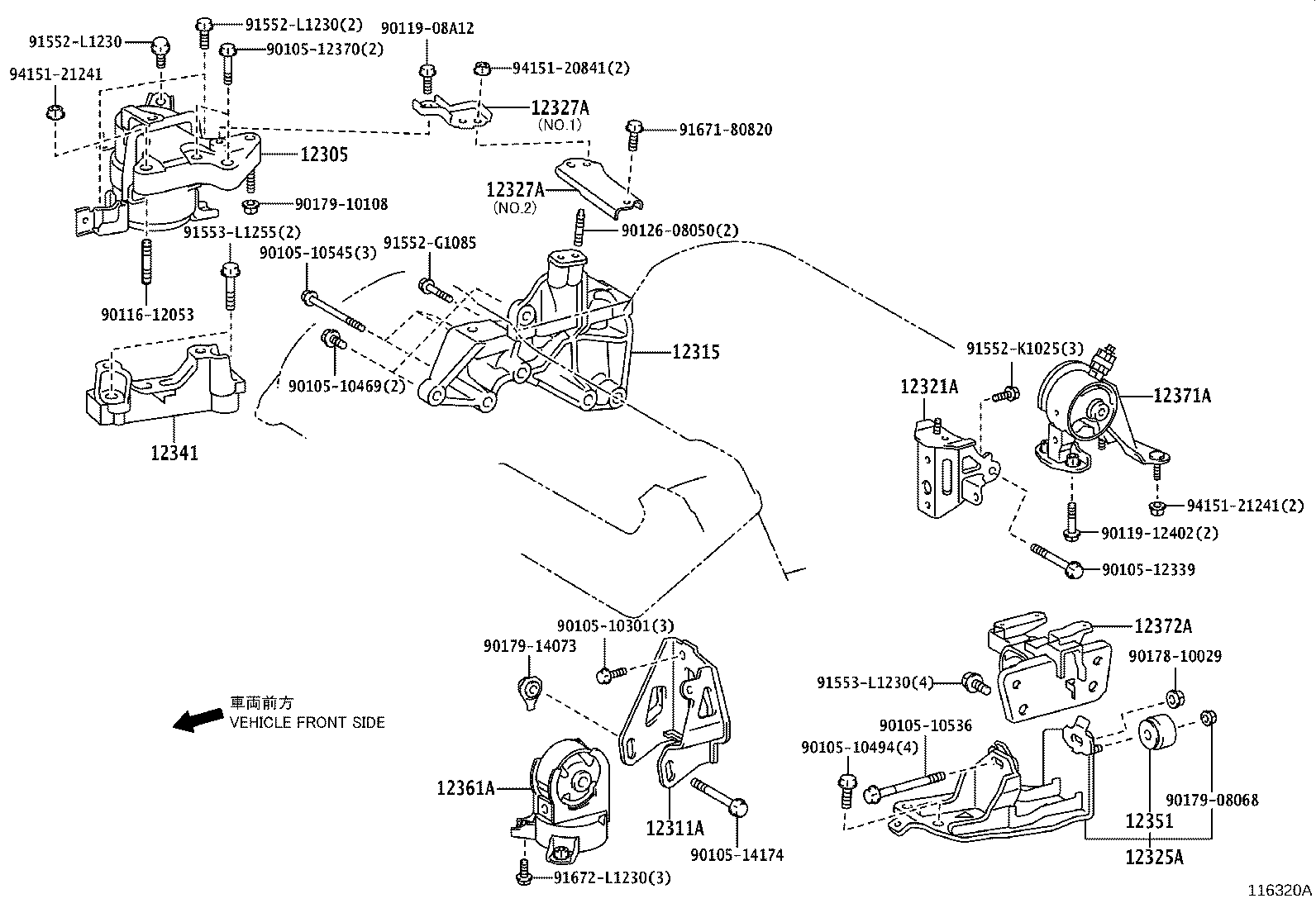

Click highlighted areas on diagram

diagram 12305 12311A 12315 12321A 12325A 12327A 12327A 12341 12351 12361A 12371A 12372A 9010510301 9010510469 9010510494 9010510536 9010510545 9010512339 9010512370 9010514174 9011612053 9011908A12 9011912402 9012608050 9017810029 9017908068 9017910108 9017914073 91552G1085 91552K1025 91552L1230 91552L1230 91553L1230 91553L1255 9167180820 91672L1230 9415120841 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-31040

2GRFE..GRE156

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31100

2GRFE..GRE156

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31130

2GRFE..GRE156

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31070

2GRFE..GRE156

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-31020

2GRFE..GRE156

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31050

2GRFE..GRE156

NO.1

 1
12327-31010

2GRFE..GRE156

NO.2

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31050

2GRFE..GRE156

NO.1

 1
12327-31010

2GRFE..GRE156

NO.2

 1
12341 - SPACER, ENGINE MOUNTING
12341-26010

2GRFE..GRE156

 1
12341-26011

2GRFE..GRE156

 1
12351 - DAMPER, ENGINE MOUNTING
12351-23040

2GRFE..GRE156

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-31210

2GRFE..GRE156

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31170

2GRFE..GRE156

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-31040

2GRFE..GRE156

 1
12372-31060

2GRFE..GRE156

 1
Common parts
90105-10301
90105-10469
90105-10494
90105-10536
90105-10545
90105-12339
90105-12370
90105-14174
90116-12053
90119-08A12
90119-12402
90126-08050
90178-10029
90179-08068
90179-10108
90179-14073
91552-G1085
91552-K1025
91552-L1230
91553-L1230
91553-L1255
91671-80820
91672-L1230
94151-20841
94151-21241
