GRE156H-CHTEK (2009)
Toyota Blade
Production
Dec 2009
-
Apr 2012
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0912- )GRE156

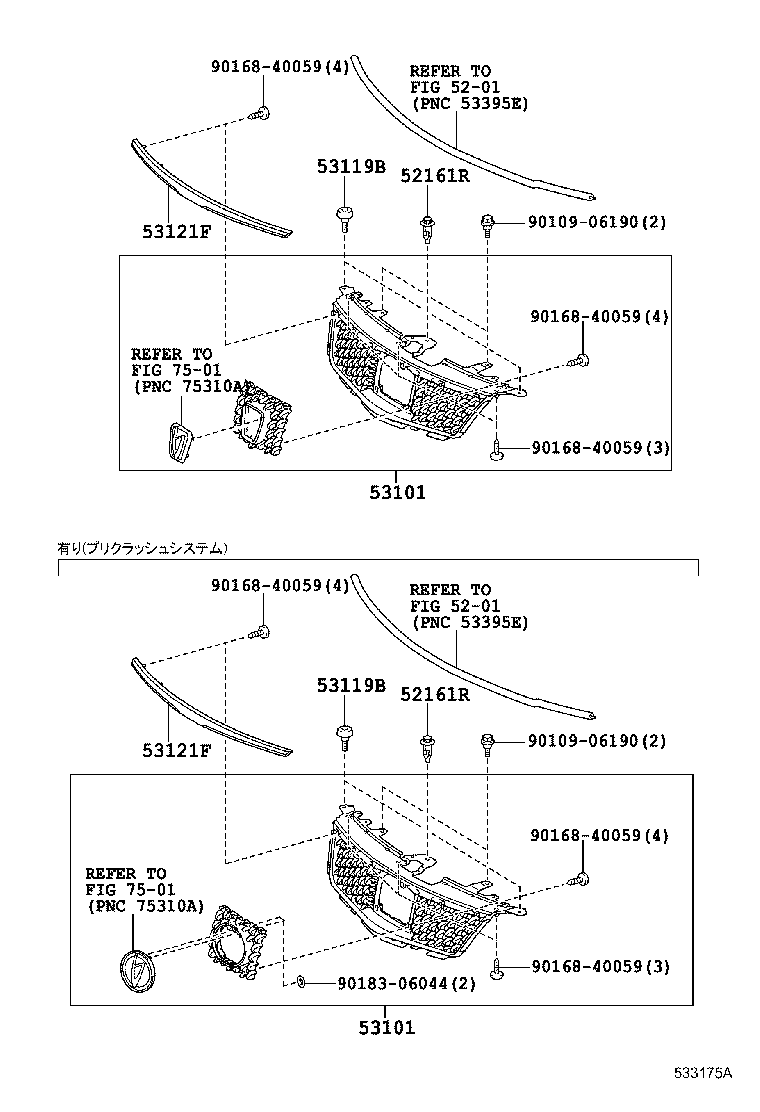

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AZE15#,GRE156 |
1 | ||
| 52161-16010 |
AZE15#,GRE156 |
1 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AZE15#,GRE156 |
1 | ||
| 52161-16010 |
AZE15#,GRE156 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-12C20 |
GRE156 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式) |
1 | ||
| 53101-12C10 |
GRE156 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-12C20 |
GRE156 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−有り(ﾐﾘ波ﾚｰﾀﾞ方式) |
1 | ||
| 53101-12C10 |
GRE156 |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-20120 |
AZE15#,GRE156 |
2 | ||
| 53119-20120 |
AZE15#,GRE156 |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-20120 |
AZE15#,GRE156 |
2 | ||
| 53119-20120 |
AZE15#,GRE156 |
2 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-12230 |
GRE156 |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-12230 |
GRE156 |
1 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90168-40059 | ||||
| 90183-06044 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
