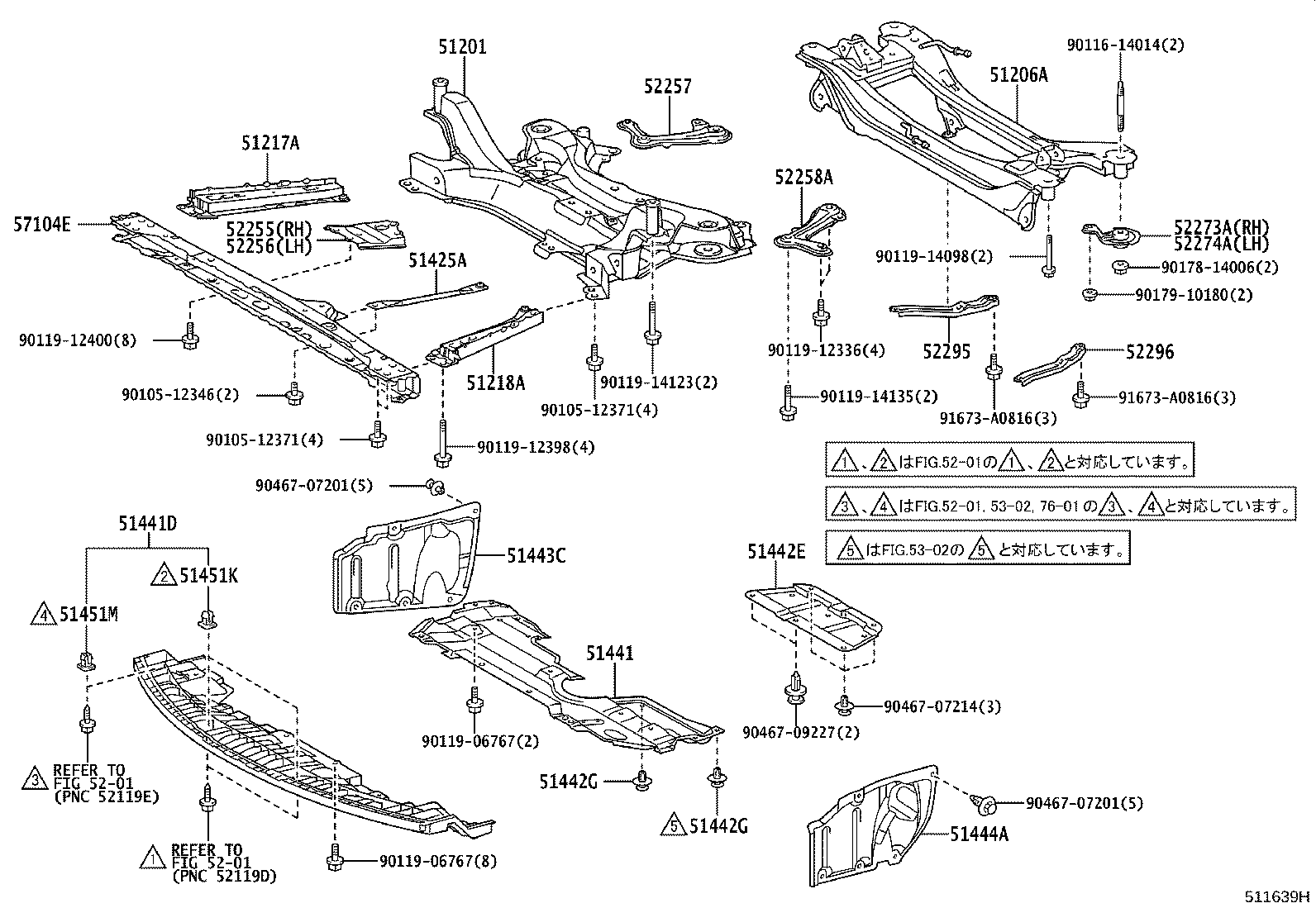

GRE156H-CHTEK (2009)
Toyota Blade
(0612- )AZE156,GRE156
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
AZE156,GRE156 |
1 | ||
| 51201-12441 |
AZE156,GRE156 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-12110 |
AZE156,GRE156 |
1 | ||
| 51206-12111 |
AZE156,GRE156 |
1 | ||
| 51206-12160 |
AZE156,GRE156 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-28020 |
AZE156,GRE156 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-28040 |
AZE156,GRE156 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-12270 |
AZE15#,GRE156 |
1 | ||
| 51441-12270 |
AZE15#,GRE156 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51451-12081 |
AZE15#,GRE156 |
1 | ||
| 51451-12080 |
AZE15#,GRE156 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
AZE15#,GRE156 |
1 | ||
| 51442-12270 |
AZE15#,GRE156 |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07201 |
AZE15#,GRE156 |
5 | ||
| 90467-07201 |
AZE15#,GRE156 |
5 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07201 |
AZE15#,GRE156 |
5 | ||
| 90467-07201 |
AZE15#,GRE156 |
5 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
AZE15#,GRE156 |
1 | ||
| 51443-12080 |
AZE15#,GRE156 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
AZE15#,GRE156 |
1 | ||
| 51444-12050 |
AZE15#,GRE156 |
1 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
AZE15#,GRE156 |
2 | ||
| 90189-06193 |
AZE15#,GRE156 |
2 | ||
| 51451M - GROMMET, SCREW, NO.2 | ||||
| 90189-06193 |
AZE15#,GRE156 |
2 | ||
| 90189-06193 |
AZE15#,GRE156 |
2 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
AZE15#,GRE156 |
1 | ||
| 52255-12010 |
AZE15#,GRE156 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
AZE15#,GRE156 |
1 | ||
| 52256-12010 |
AZE15#,GRE156 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-12011 |
AZE156,GRE156 |
1 | ||
| 52257-12010 |
AZE156,GRE156 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12010 |
AZE156,GRE156 |
1 | ||
| 52258-12011 |
AZE156,GRE156 |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-12010 |
AZE156,GRE156 |
1 | ||
| 52203-12010 |
AZE156,GRE156 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52203-12010 |
AZE156,GRE156 |
1 | ||
| 52203-12010 |
AZE156,GRE156 |
1 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-12051 |
AZE156,GRE156 |
1 | ||
| 52295-12050 |
AZE156,GRE156 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-12050 |
AZE156,GRE156 |
1 | ||
| 52295-12051 |
AZE156,GRE156 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
AZE15#,GRE156 |
1 | ||
| 57104-12270 |
AZE15#,GRE156 |
1 | ||
| Common parts | ||||
| 90105-12346 | ||||
| 90105-12371 | ||||
| 90116-14014 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14098 | ||||
| 90119-14123 | ||||
| 90119-14135 | ||||
| 90178-14006 | ||||
| 90179-10180 | ||||
| 90467-07201 | ||||
| 90467-07214 | ||||
| 90467-09227 | ||||
| 91673-A0816 | ||||
| Linked diagrams | ||||
| 5201 | ||||
