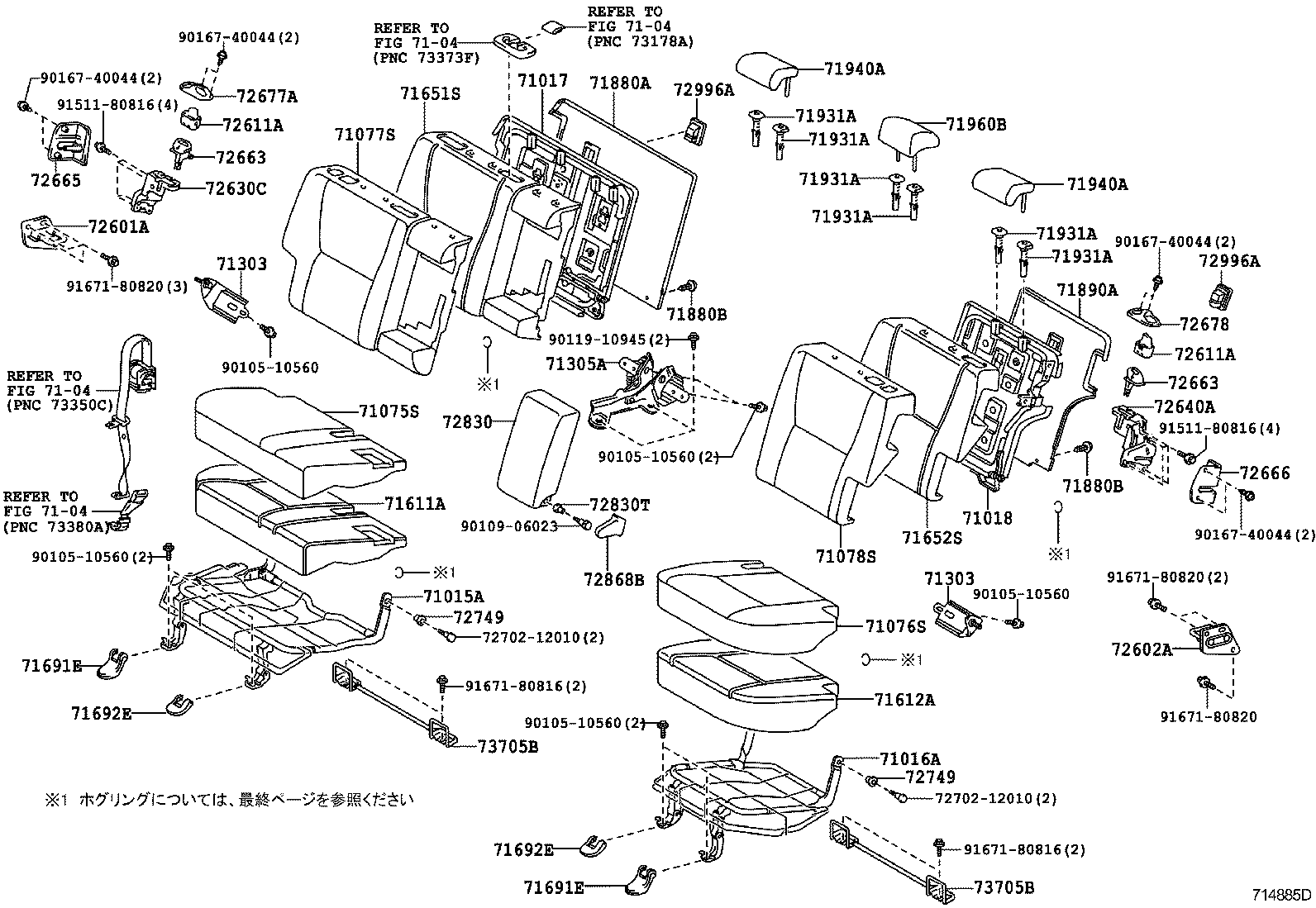

AZE154H-CHXNK (2009)
Toyota Blade
(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-12430 |
AZE15#,GRE156 |
1 | ||
| 71015-12430 |
AZE15#,GRE156 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-12020 |
AZE15#,GRE156 |
1 | ||
| 71016-12020 |
AZE15#,GRE156 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12710 |
AZE15#,GRE156 |
1 | ||
| 71017-12710 |
AZE15#,GRE156 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12350 |
AZE15#,GRE156 |
1 | ||
| 71018-12350 |
AZE15#,GRE156 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-12E00J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 71075-12K10A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 71075-12K10J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-12400J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 71076-12400A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 71076-12300J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12G60J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 71077-12N30A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 71077-12N30J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12E70J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 71078-12L70A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 71078-12L70J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12161 |
AZE15#,GRE156 |
2 | ||
| 71303-12161 |
AZE15#,GRE156 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12161 |
AZE15#,GRE156 |
2 | ||
| 71303-12161 |
AZE15#,GRE156 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12190 |
AZE15#,GRE156 |
1 | ||
| 71305-12190 |
AZE15#,GRE156 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-12670 |
AZE15#,GRE156 |
1 | ||
| 71611-12670 |
AZE15#,GRE156 |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-12380 |
AZE15#,GRE156 |
1 | ||
| 71612-12380 |
AZE15#,GRE156 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12850 |
AZE15# |
1 | ||
| 71651-12B20 |
AZE15#,GRE156 |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12A00 |
AZE15#,GRE156 |
1 | ||
| 71652-12720 |
AZE15# |
1 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-12010B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71691-12010A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 71691-12010B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71691E - COVER, REAR SEAT CUSHION HINGE, NO.1 | ||||
| 71691-12010B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71691-12010A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 71691-12010B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-12030B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71692-12030A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 71692-12030B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 | ||||
| 71692-12030B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71692-12030A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 71692-12030B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-12100C0 |
AZE15#,GRE156 BLACK,TRIM8# |
1 | ||
| 71885-12100A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 71885-12100C0 |
AZE15#,GRE156 BLACK,TRIM8# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-05161B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
4 | ||
| 90467-05161A5 |
AZE15#,GRE156 IVORY,TRIM0# |
4 | ||
| 90467-05161B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
4 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-05161B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
4 | ||
| 90467-05161A5 |
AZE15#,GRE156 IVORY,TRIM0# |
4 | ||
| 90467-05161B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
4 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-12090A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 71886-12090C0 |
AZE15#,GRE156 BLACK,TRIM8# |
1 | ||
| 71886-12090C0 |
AZE15#,GRE156 BLACK,TRIM8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71930-44020A1 |
AZE15#,GRE156 ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010A6 |
AZE15#,GRE156 ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020J0 |
AZE15#,GRE156 ﾛｯｸ付,DK.BLUE,TRIM8# |
3 | ||
| 71931-47010J1 |
AZE15#,GRE156 ﾛｯｸ無,DK.BLUE,TRIM8# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12B20J0 |
AZE15#..STD DK.BLUE,TRIM8# |
2 | ||
| 71940-12880J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
2 | ||
| 71940-12B20A0 |
AZE15#..STD IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12B20J0 |
AZE15#..STD DK.BLUE,TRIM8# |
2 | ||
| 71940-12880J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
2 | ||
| 71940-12B20A0 |
AZE15#..STD IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-12640J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 71960-12460J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 71960-12640A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12200 |
AZE15#,GRE156 |
1 | ||
| 72601-12200 |
AZE15#,GRE156 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-12060 |
AZE15#,GRE156 |
1 | ||
| 72602-12060 |
AZE15#,GRE156 |
1 | ||
| 72611A - BASE, REAR SEAT LOCK | ||||
| 72631-12100 |
AZE15#,GRE156 右側 |
1 | ||
| 72631-12100 |
AZE15#,GRE156 右側 |
1 | ||
| 72632-12090 |
AZE15#,GRE156 左側 |
1 | ||
| 72632-12090 |
AZE15#,GRE156 左側 |
1 | ||
| 72611A - BASE, REAR SEAT LOCK | ||||
| 72631-12100 |
AZE15#,GRE156 右側 |
1 | ||
| 72631-12100 |
AZE15#,GRE156 右側 |
1 | ||
| 72632-12090 |
AZE15#,GRE156 左側 |
1 | ||
| 72632-12090 |
AZE15#,GRE156 左側 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72603-12040 |
AZE15#,GRE156 |
1 | ||
| 72630-12320 |
AZE15# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72604-12060 |
AZE15#,GRE156 |
1 | ||
| 72640-12290 |
AZE15# |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72663-12020J0 |
AZE15# DK.BLUE,TRIM8#,右側 |
1 | ||
| 72663-12021A0 |
AZE15#,GRE156 IVORY,TRIM0#,右側 |
1 | ||
| 72664-12021A0 |
AZE15#,GRE156 IVORY,TRIM0#,左側 |
1 | ||
| 72664-12021J0 |
AZE15#,GRE156 DK.BLUE,TRIM8#,左側 |
1 | ||
| 72664-12020J0 |
AZE15# DK.BLUE,TRIM8#,左側 |
1 | ||
| 72663-12021J0 |
AZE15#,GRE156 DK.BLUE,TRIM8#,右側 |
1 | ||
| 72663 - LEVER, REAR SEAT LOCK CONTROL, NO.1 | ||||
| 72663-12020J0 |
AZE15# DK.BLUE,TRIM8#,右側 |
1 | ||
| 72663-12021A0 |
AZE15#,GRE156 IVORY,TRIM0#,右側 |
1 | ||
| 72664-12021A0 |
AZE15#,GRE156 IVORY,TRIM0#,左側 |
1 | ||
| 72664-12021J0 |
AZE15#,GRE156 DK.BLUE,TRIM8#,左側 |
1 | ||
| 72664-12020J0 |
AZE15# DK.BLUE,TRIM8#,左側 |
1 | ||
| 72663-12021J0 |
AZE15#,GRE156 DK.BLUE,TRIM8#,右側 |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-12030J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72665-12030J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72665-12030A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-12020A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 72666-12020J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72666-12020J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72677A - BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH | ||||
| 72677-12010A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 72677-12010J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72677-12010J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72678 - BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH | ||||
| 72678-12010A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 72678-12010J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72678-12010J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
AZE15#,GRE156 |
4 | ||
| 72749-12010 |
AZE15#,GRE156 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-12010 |
AZE15#,GRE156 |
4 | ||
| 72749-12010 |
AZE15#,GRE156 |
4 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12700A0 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 72830-12510J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 72830-12700J0 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 72830T - BUSH (FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-08077 |
AZE15#,GRE156 |
1 | ||
| 90386-08077 |
AZE15#,GRE156 |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-12020A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 72868-12020J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72868-12020J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 72996-12320B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 72996-12320B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-12320A0 |
AZE15#,GRE156 IVORY,TRIM0# |
2 | ||
| 72996-12320B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 72996-12320B0 |
AZE15#,GRE156 DK.GRAY,TRIM8# |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12060 |
AZE15#,GRE156 |
2 | ||
| 73705-12060 |
AZE15#,GRE156 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-12060 |
AZE15#,GRE156 |
2 | ||
| 73705-12060 |
AZE15#,GRE156 |
2 | ||
| Common parts | ||||
| 72702-12010 | ||||
| 90105-10560 | ||||
| 90109-06023 | ||||
| 90119-10945 | ||||
| 90167-40044 | ||||
| 91511-80816 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(0612- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
