AZE154H-CHXNK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )STD

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

diagram 7104 7104 7104 71071S 71073S 71100S 71511S 71537A 71811D 71861 71861B 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72110A 72123A 72125A 72125A 72125A 72125A 72127A 72130A 72137 72157A 72272 72462 72494 72525A 7270248010 7270258050 79977A 79977A 82711F 9011910921 9011910921 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-12L60J1

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71071-12T70J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
71071-12T70A0

AZE15#..STD

IVORY,TRIM0#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-12U70J1

AZE15#..STD

DK.BLUE,TRIM8#

 1
71073-12U70A1

AZE15#..STD

IVORY,TRIM0#

 1
71073-12L20J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71100S - SEAT ASSY, FRONT RH
71100-12R10J3

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71100-1AA70A2

AZE15#..STD

IVORI,TRIM0#

 1
71100-1AA70J3

AZE15#..STD

DK.BLUE,TRIM8#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-12B90

AZE15#..STD

 1
71511-12B90

AZE15#,GRE156..STD

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

AZE15#..STD

 4
71537-26010

AZE15#,GRE156

 4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-42090J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71811-42090J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
71811-42090A0

AZE15#..STD

IVORY,TRIM0#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-12280J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71861-12280A0

AZE15#..STD

IVORY,TRIM0#

 1
71861-12280J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
71769-33020

AZE15#,GRE156..STD

 1
71769-33020

AZE15#..STD

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42030

AZE15#..STD

 1
71873-42030

AZE15#,GRE156..STD

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-42020

AZE15#,GRE156..STD

 1
71874-42020

AZE15#..STD

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60160A1

AZE15#..STD

IVORY,TRIM0#

 1
71875-60160J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71875-60160J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58060

AZE15#..STD

 1
71875-58060

AZE15#,GRE156..STD

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60160J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
71876-60160J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
71876-60160A1

AZE15#..STD

IVORY,TRIM0#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-58060

AZE15#..STD

 1
71876-58060

AZE15#,GRE156..STD

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-12E70A0

AZE15#..STD

IVORY,TRIM0#

 2
71910-12D00J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 2
71910-12E70J0

AZE15#..STD

DK.BLUE,TRIM8#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010A6

AZE15#,GRE156

ﾛｯｸ無,IVORY,TRIM0#

 2
71930-44020A1

AZE15#,GRE156

ﾛｯｸ付,IVORY,TRIM0#

 2
71931-47010J1

AZE15#,GRE156

ﾛｯｸ無,DK.BLUE,TRIM8#

 2
71930-44020J0

AZE15#,GRE156

ﾛｯｸ付,DK.BLUE,TRIM8#

 2
71930-44020J0

AZE15#,GRE156

ﾛｯｸ付,DK.BLUE,TRIM8#

 2
71931-47010J1

AZE15#,GRE156

ﾛｯｸ無,DK.BLUE,TRIM8#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-47010A6

AZE15#,GRE156

ﾛｯｸ無,IVORY,TRIM0#

 2
71930-44020A1

AZE15#,GRE156

ﾛｯｸ付,IVORY,TRIM0#

 2
71931-47010J1

AZE15#,GRE156

ﾛｯｸ無,DK.BLUE,TRIM8#

 2
71930-44020J0

AZE15#,GRE156

ﾛｯｸ付,DK.BLUE,TRIM8#

 2
71930-44020J0

AZE15#,GRE156

ﾛｯｸ付,DK.BLUE,TRIM8#

 2
71931-47010J1

AZE15#,GRE156

ﾛｯｸ無,DK.BLUE,TRIM8#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-12190

AZE15#,GRE156..STD

 1
72110-12190

AZE15#..STD

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-12150A0

AZE15#..STD

IVORY,TRIM0#

 1
72123-12150B0

AZE15#..STD

DK.GRAY,TRIM8#

 1
72123-12150B0

AZE15#,GRE156..STD

DK.GRAY,TRIM8#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

AZE15#,GRE156..STD

 8
72125-13040

AZE15#..STD

 8
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

AZE15#,GRE156..STD

 8
72125-13040

AZE15#..STD

 8
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

AZE15#,GRE156..STD

 8
72125-13040

AZE15#..STD

 8
72125A - COVER, SEAT TRACK, UPPER REAR
72125-13040

AZE15#,GRE156..STD

 8
72125-13040

AZE15#..STD

 8
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-12030B0

AZE15#,GRE156..STD

DK.GRAY,TRIM8#

 1
72127-12030A0

AZE15#..STD

IVORY,TRIM0#

 1
72127-12030B0

AZE15#..STD

DK.GRAY,TRIM8#

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-12780

AZE15#,GRE156..STD

 1
72130-12780

AZE15#..STD

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-12150B0

AZE15#,GRE156..STD

DK.GRAY,TRIM8#

 1
72137-12150B0

AZE15#..STD

DK.GRAY,TRIM8#

 1
72137-12150A0

AZE15#..STD

IVORY,TRIM0#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-12120B0

AZE15#,GRE156..STD

DK.GRAY,TRIM8#

 1
72157-12120B0

AZE15#..STD

DK.GRAY,TRIM8#

 1
72157-12120A0

AZE15#..STD

IVORY,TRIM0#

 1
72272 - CLAMP, SEAT TRACK CONTROL CABLE
72272-12020

AZE15#,GRE156..STD

 2
72272-12020

AZE15#..STD

 2
72462 - COVER, VERTICAL ADJUSTER RH
72462-42010J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
72462-42010A0

AZE15#..STD

IVORY,TRIM0#

 1
72462-42010J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-42010J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
72494-42010J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
72494-42010A0

AZE15#..STD

IVORY,TRIM0#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-42020A0

AZE15#..STD

IVORY,TRIM0#

 1
72525-42020J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
72525-42020J0

AZE15#,GRE156..STD

DK.BLUE,TRIM8#

 1
79977A - FELT, SEAT BACK
79977-12040

AZE15#,GRE156

 1
79977A - FELT, SEAT BACK
79977-12040

AZE15#,GRE156

 1
82711F - CLAMP, WIRING HARNESS
82711-12120

AZE15#,GRE156

 2
82711-12120

AZE15#,GRE156

 2
Common parts
72702-48010
72702-58050
90119-10921
90167-40044
90168-50078
Linked diagrams
7104

(0612- )AZE15# ; (0708- )GRE156..STD

Click highlighted areas on diagram

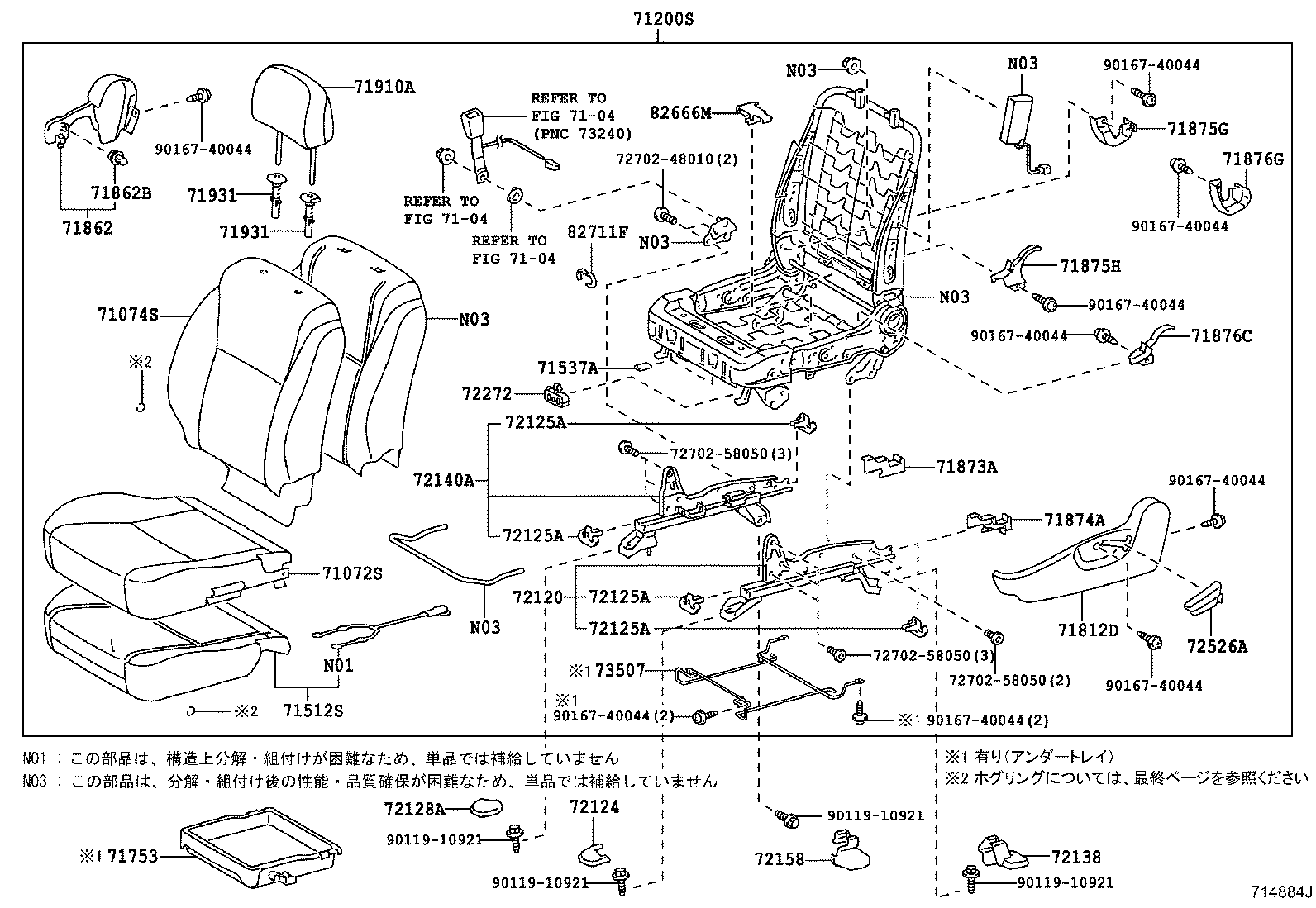

ｼﾞｮｼｭｾｷ
