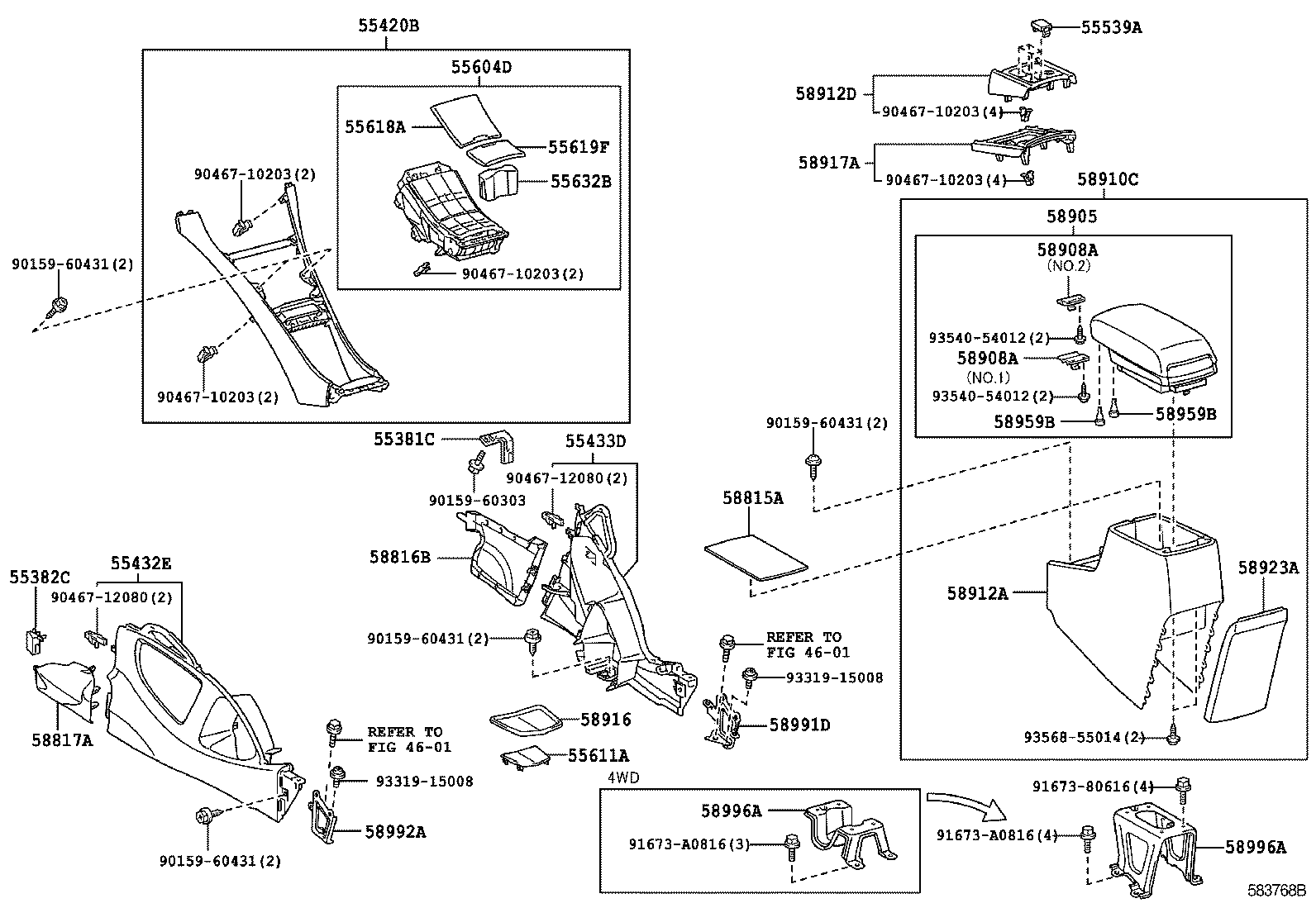

AZE154H-CHXNK (2009)
Toyota Blade
(0912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55381C - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55389-42020 |
AZE15#,GRE156 |
1 | ||
| 55389-42020 |
AZE15#,GRE156 |
1 | ||
| 55382C - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55388-42020 |
AZE15#,GRE156 |
1 | ||
| 55388-42020 |
AZE15#,GRE156 |
1 | ||
| 55420B - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55420-12410 |
AZE15#,GRE156 |
1 | ||
| 55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-12590A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 55432-12590J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 55432-12530J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-12280J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 55433-12230J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 55433-12280A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
AZE15#,GRE156 BLACK,TRIM0#,8# |
1 | ||
| 55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-12080 |
AZE15#,GRE156 |
1 | ||
| 55611A - TRAY, INSTRUMENT PANEL UNDER | ||||
| 55611-12110J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 55611-12110J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 55611-12110A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-12070 |
AZE15#,GRE156 |
1 | ||
| 55619F - HOLDER, CONSOLE BOX CUP, NO.2 | ||||
| 55619-12080 |
AZE15#,GRE156 |
1 | ||
| 55632B - SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.2 | ||||
| 55632-12070 |
AZE15#,GRE156 |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-12190 |
AZE15#,GRE156 |
1 | ||
| 58815-12100 |
AZE15#,GRE156 |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-12010J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 58816-12010J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 58816-12010A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-12040J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 58817-12040J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 58817-12040A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-12720J0 |
AZE15#,GRE156..STD DK.BLUE,TRIM8# |
1 | ||
| 58905-12801A1 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 58905-12801J2 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 58905-12800J2 |
AZE15#..STD DK.BLUE,TRIM8# |
1 | ||
| 58905-12800A1 |
AZE15#..STD IVORY,TRIM0# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12041 |
AZE15#,GRE156 NO.1 |
1 | ||
| 58908-12080 |
AZE15#,GRE156 NO.2 |
1 | ||
| 58908-32021 |
AZE15#,GRE156 NO.2 |
1 | ||
| 58908-33030 |
AZE15#,GRE156 |
1 | ||
| 58908-12040 |
AZE15#,GRE156 NO.1 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12041 |
AZE15#,GRE156 NO.1 |
1 | ||
| 58908-12080 |
AZE15#,GRE156 NO.2 |
1 | ||
| 58908-32021 |
AZE15#,GRE156 NO.2 |
1 | ||
| 58908-33030 |
AZE15#,GRE156 |
1 | ||
| 58908-12040 |
AZE15#,GRE156 NO.1 |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-12460J1 |
AZE154..STD DK.BLUE,TRIM8# |
1 | ||
| 58910-12780A1 |
AZE154..STD IVORY,TRIM0# |
1 | ||
| 58910-12780J2 |
AZE154..STD DK.BLUE,TRIM8# |
1 | ||
| 58910-12781J2 |
AZE154..STD DK.BLUE,TRIM8# |
1 | ||
| 58910-12781A1 |
AZE154..STD IVORY,TRIM0# |
1 | ||
| 58912A - BOX, REAR CONSOLE | ||||
| 58911-12470A0 |
AZE154 IVORY,TRIM0# |
1 | ||
| 58911-12470J0 |
AZE154 DK.BLUE,TRIM8# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-12150 |
AZE15#,GRE156 |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-12110 |
AZE15#,GRE156 |
1 | ||
| 58916-12110 |
AZE15#,GRE156 |
1 | ||
| 58917A - COVER, CONSOLE BOX, REAR | ||||
| 58917-12110J0 |
AZE15#,GRE156 DK.BLUE,TRIM8# |
1 | ||
| 58917-12010J0 |
AZE154 DK.BLUE,TRIM8# |
1 | ||
| 58917-12110A0 |
AZE15#,GRE156 IVORY,TRIM0# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-12110A0 |
AZE154 IVORY,TRIM0# |
1 | ||
| 58923-12110J0 |
AZE154 DK.BLUE,TRIM8# |
1 | ||
| 58991D - BRACKET, CONSOLE BOX MOUNTING, UPR RH | ||||
| 58991-12060 |
AZE15#,GRE156 |
1 | ||
| 58991-12060 |
AZE15#,GRE156 |
1 | ||
| 58992A - BRACKET, CONSOLE BOX MOUNTING, UPR LH | ||||
| 58992-12030 |
AZE15#,GRE156 |
1 | ||
| 58992-12030 |
AZE15#,GRE156 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58097-12020 |
AZE154 |
1 | ||
| 58996-12130 |
AZE154 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58097-12020 |
AZE154 |
1 | ||
| 58996-12130 |
AZE154 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60431 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93319-15008 | ||||
| 93540-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 4601 | ||||
