AZE154H-CHXNK (2009)
Toyota Blade
ILLUST NO. 1 OF 2(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-12A41 |
AZE15#,GRE156 |
1 | ||
| 53301-12A40 |
AZE15# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-12280 |
AZE15#,GRE156 |
1 | ||
| 53341-12280 |
AZE15#,GRE156 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
AZE15#,GRE156 |
7 | ||
| 90467-09050 |
AZE15#,GRE156 |
7 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-12A20 |
AZE15#..STD |
1 | ||
| 53801-12A20 |
AZE15#..STD |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-12A20 |
AZE15#..STD |
1 | ||
| 53802-12A20 |
AZE15#..STD |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-52020 |
AZE15#,GRE156 |
1 | ||
| 53813-52020 |
AZE15#,GRE156 |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53813-52020 |
AZE15#,GRE156 |
1 | ||
| 53813-52020 |
AZE15#,GRE156 |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-12060 |
AZE15#,GRE156 |
1 | ||
| 53825-12060 |
AZE15#,GRE156 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-12040 |
AZE15#,GRE156 |
1 | ||
| 53826-12040 |
AZE15#,GRE156 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12070 |
AZE15#,GRE156 |
1 | ||
| 53827-12070 |
AZE15#,GRE156 |
1 | ||
| 53827-12120 |
AZE15#,GRE156 寒冷地仕様 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12120 |
AZE15#,GRE156 寒冷地仕様 |
1 | ||
| 53828-12070 |
AZE15#,GRE156 |
1 | ||
| 53828-12070 |
AZE15#,GRE156 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-12030 |
AZE15#,GRE156 |
1 | ||
| 53866-12030 |
AZE15#,GRE156 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-12040 |
AZE15#,GRE156 |
1 | ||
| 53867-12040 |
AZE15#,GRE156 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
AZE15#,GRE156 |
2 | ||
| 53882-16030 |
AZE15#,GRE156 |
2 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
AZE15#,GRE156 |
2 | ||
| 53882-16030 |
AZE15#,GRE156 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06205C0 |
AZE15#,GRE156 BLACK |
2 | ||
| 90467-08136 |
AZE15#,GRE156 |
2 | ||
| 53882N - CLIP(FOR FRONT FENDER SEAL) | ||||
| 90467-06205C0 |
AZE15#,GRE156 BLACK |
2 | ||
| 90467-08136 |
AZE15#,GRE156 |
2 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90467-07164 | ||||
| 90950-06124 | ||||

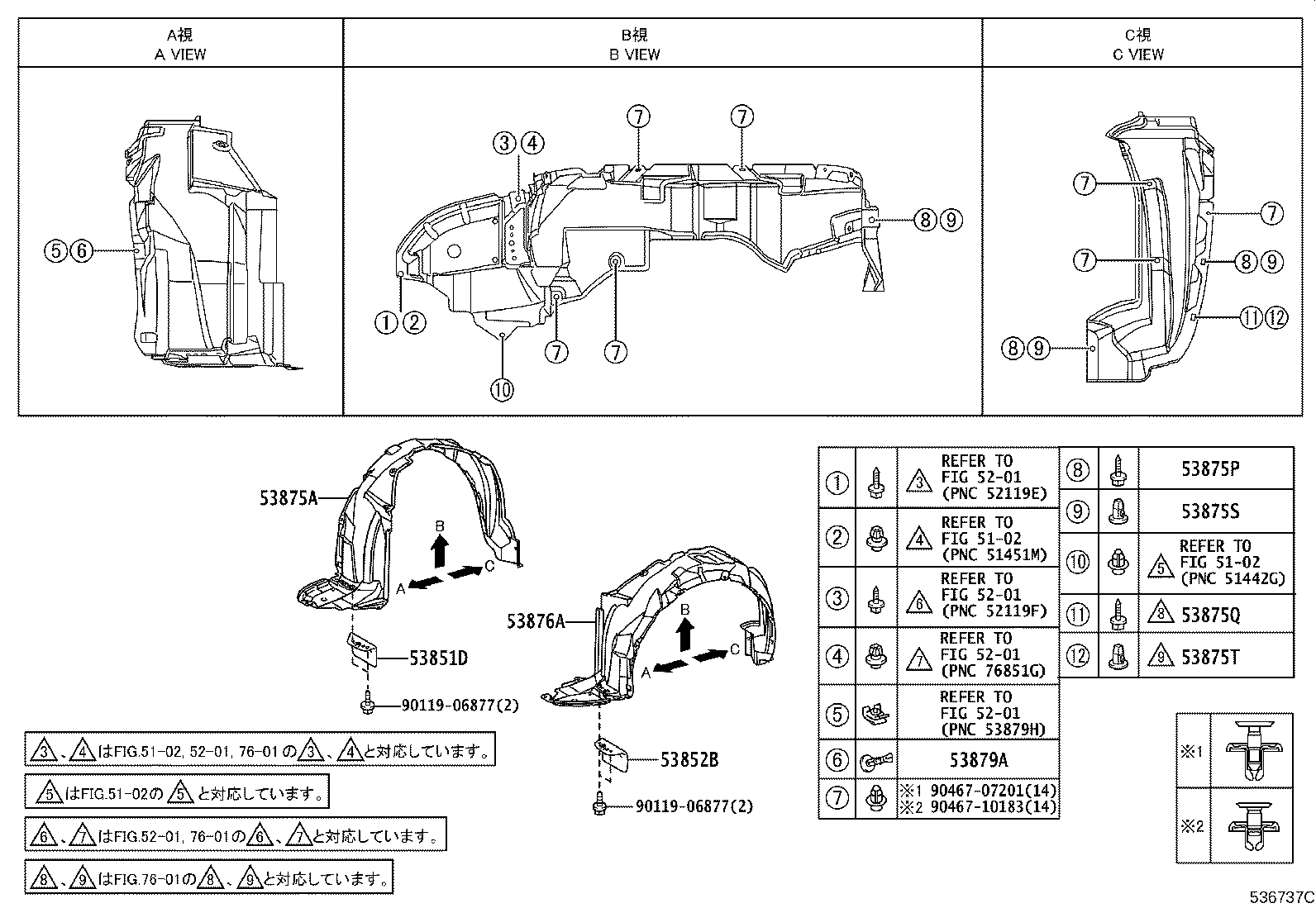

ILLUST NO. 2 OF 2(0612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-12080 |
AZE15#,GRE156 |
1 | ||
| 53851-12080 |
AZE15#,GRE156 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-12070 |
AZE15#,GRE156 |
1 | ||
| 53852-12070 |
AZE15#,GRE156 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-12450 |
AZE15#,GRE156 |
1 | ||
| 53875-12450 |
AZE15#,GRE156 |
1 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60602 |
AZE15#,GRE156 |
6 | ||
| 90159-60602 |
AZE15#,GRE156 |
6 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60602 |
AZE15#,GRE156 |
2 | ||
| 90159-60602 |
AZE15#,GRE156 |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06013 |
AZE15#,GRE156 |
6 | ||
| 90189-06013 |
AZE15#,GRE156 |
6 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06013 |
AZE15#,GRE156 |
2 | ||
| 90189-06013 |
AZE15#,GRE156 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-12430 |
AZE15#,GRE156 |
1 | ||
| 53876-12430 |
AZE15#,GRE156 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 47749-58010 |
AZE15#,GRE156 |
2 | ||
| 47749-58010 |
AZE15#,GRE156 |
2 | ||
| Common parts | ||||
| 90119-06877 | ||||
| 90467-07201 | ||||
| 90467-10183 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
