AZE154H-CHXNK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )AZE154

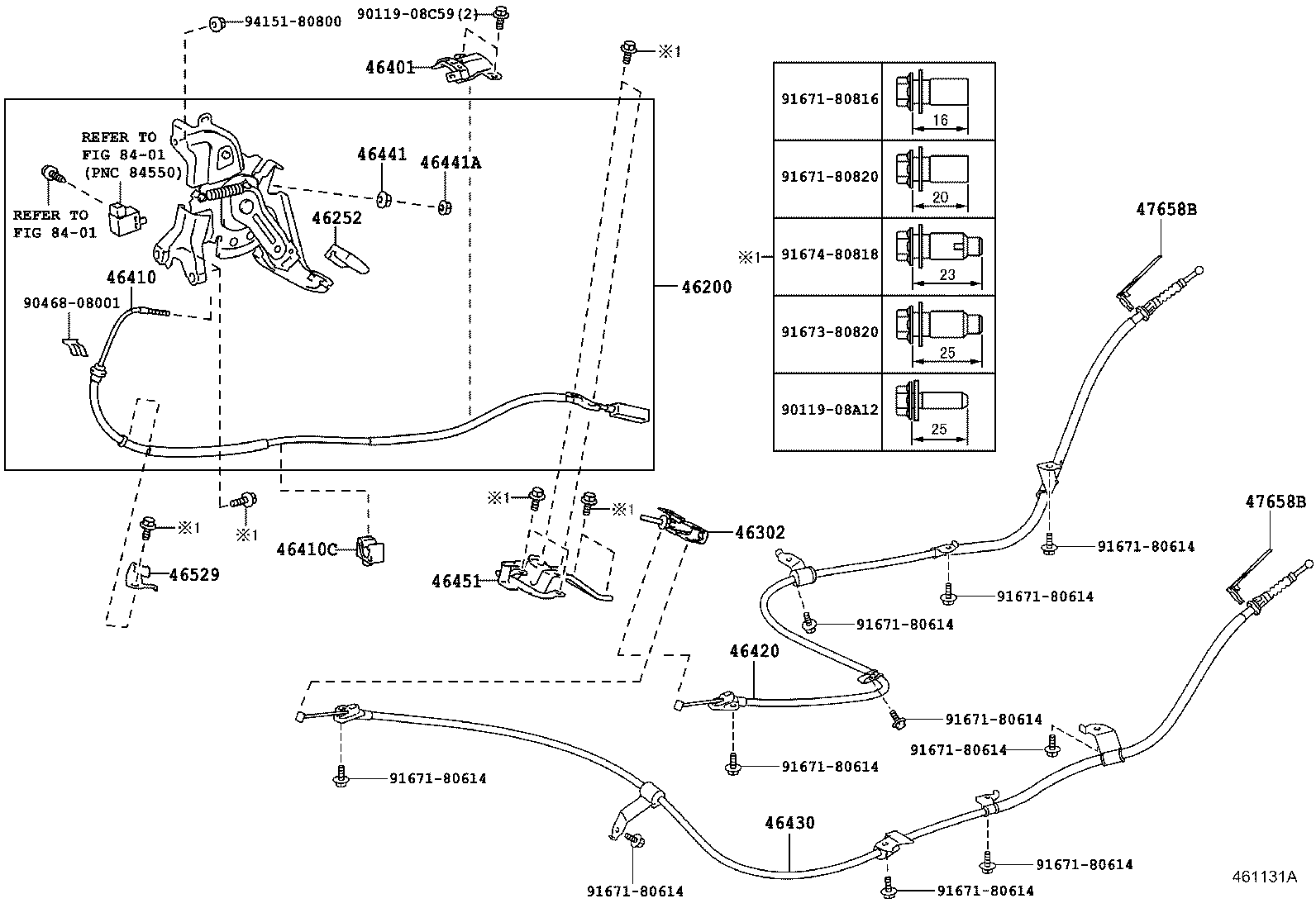

Click highlighted areas on diagram

diagram 46200 46252 46302 46401 46410 46410C 46420 46430 46441 46441A 46451 46529 47658B 47658B 8401 8401 9011908A12 9011908C59 9046808001 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180816 9167180820 9167380820 9167480818 9415180800
Part # Description Qty Price
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-12020

AZE154

 1
46252 - PAD, PARKING PEDAL
46252-22010

AZE15#,GRE156

 1
46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1
46302-47020

AZE15#,GRE156

 1
46401 - BRACKET SUB-ASSY, CABLE SUPPORT
46401-12030

AZE15#,GRE156

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12290

AZE154

 1
46410-12380

AZE154

 1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-47020

AZE15#,GRE156

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12660

AZE154

 1
46420-12660

AZE154

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12550

AZE154

 1
46430-12550

AZE154

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-12010

AZE15#,GRE156

 1
46441-12010

AZE15#,GRE156

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06299

AZE15#,GRE156

 1
90179-06299

AZE15#,GRE156

 1
90179-06299

AZE15#,GRE156

 1
46451 - BRACKET, CABLE SUPPORT
46451-12070

AZE154

 1
46529 - BRACKET, CABLE CLAMP
46529-12010

AZE15#,GRE156

 1
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-12010

AZE15#,GRE156

 2
47658-12010

AZE15#,GRE156

 2
47658B - PROTECTOR, PARKING BRAKE LEVER
47658-12010

AZE15#,GRE156

 2
47658-12010

AZE15#,GRE156

 2
Common parts
90119-08A12
90119-08C59
90468-08001
91671-80614
91671-80816
91671-80820
91673-80820
91674-80818
94151-80800
Linked diagrams
8401
