AZE154H-CHXNK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0912- )AZE15#

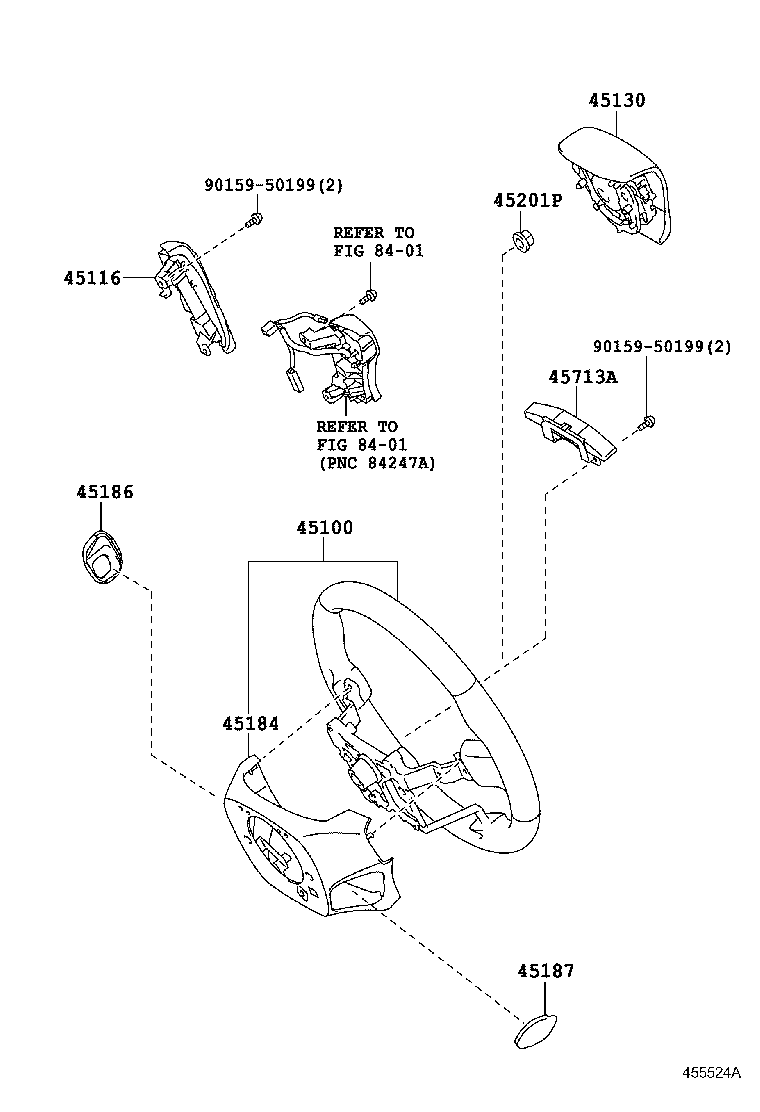

Click highlighted areas on diagram

4ﾎﾝｽﾎﾟｰｸ

diagram 45100 45116 45130 45184 45186 45187 45201P 45713A 8401 8401 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-12D90J0

AZE15#..STD

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.BLUE,TRIM8#

 1
45100-12F30J2

AZE15#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.BLUE,TRIM0#,8#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-12010

AZE15#

 1
45116-12080

AZE15#

 1
45130 - BUTTON ASSY, HORN
45130-12C70J2

AZE15#

DK.BLUE,TRIM0#,8#

 1
45130-12B60J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-33100J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
45184-75010J2

AZE15#

DK.BLUE,TRIM0#,8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33080J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
45186-22070J2

AZE15#

DK.BLUE,TRIM0#,8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-33050J0

AZE15#..STD

DK.BLUE,TRIM8#

 1
45187-75010J2

AZE15#

DK.BLUE,TRIM0#,8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

AZE15#,GRE156

 1
90179-12071

AZE15#,GRE156

 1
45713A - DAMPER, STEERING SHAKE
45713-12140

AZE15#

 1
45713-33180

AZE15#

 1
Common parts
90159-50199
Linked diagrams
8401
