AZE154H-CHXNK (2009)
Toyota Blade
Production
Dec 2009
-
Apr 2012
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

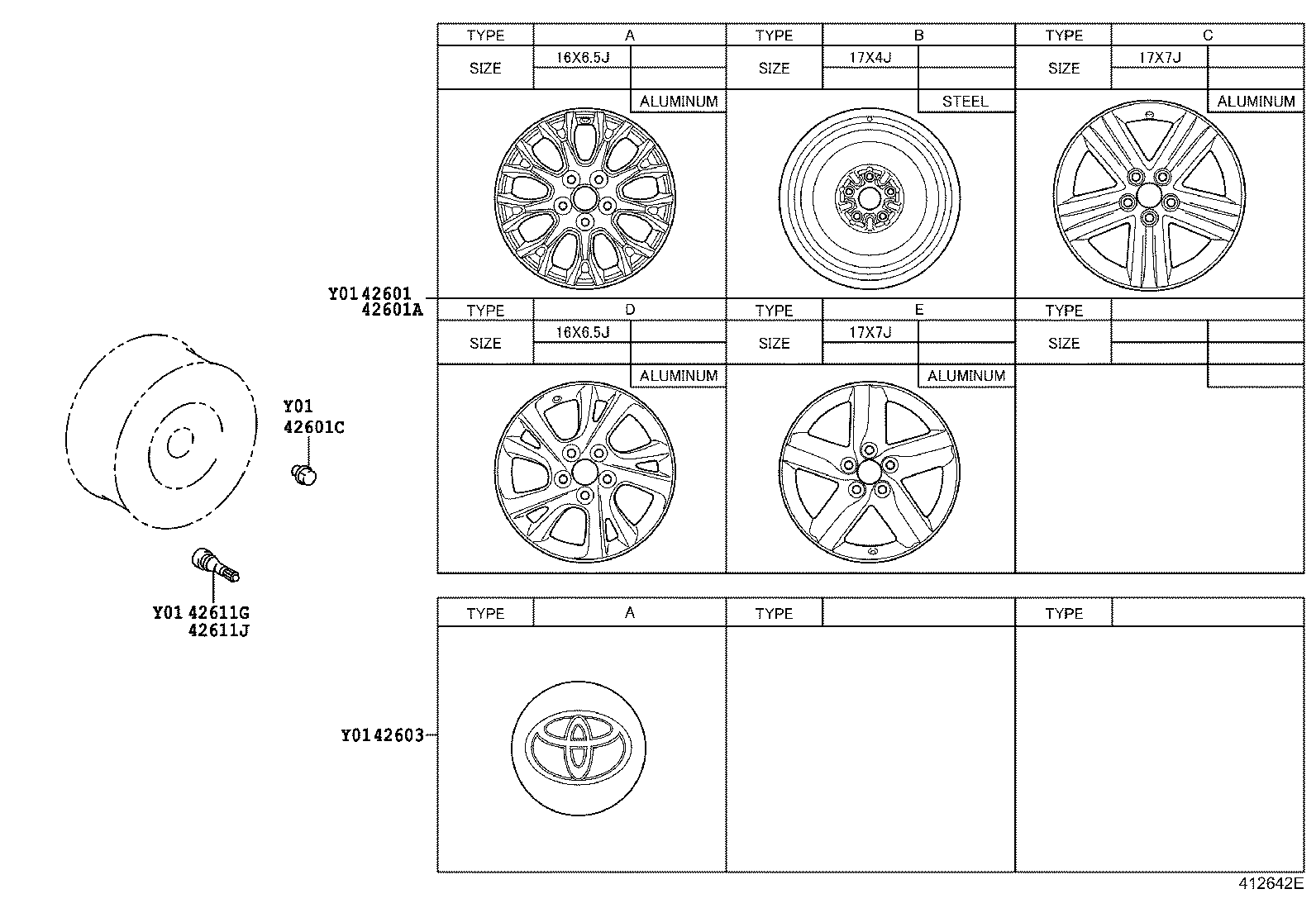

ILLUST NO. 1 OF 3(0612- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-12B40 |
AZE15# 16X6.5J,#,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611-12C20 |
AZE15# 16X6.5J,#,TYPE D:ｲﾗｽﾄ参照 |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-12B30 |
AZE15#,GRE156 17X4T,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42611-75100 |
AZE15#,GRE156 17X4T,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01033 |
AZE15#,GRE156 |
20 | ||
| 90942-01033 |
AZE15#,GRE156 |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12730 |
AZE15#,GRE156 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42603-12730 |
AZE15#,GRE156 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AZE15#,GRE156 |
4 | ||
| 90942-05009 |
AZE15#,GRE156 |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
AZE15#,GRE156 |
1 | ||
| 90942-05009 |
AZE15#,GRE156 |
1 | ||

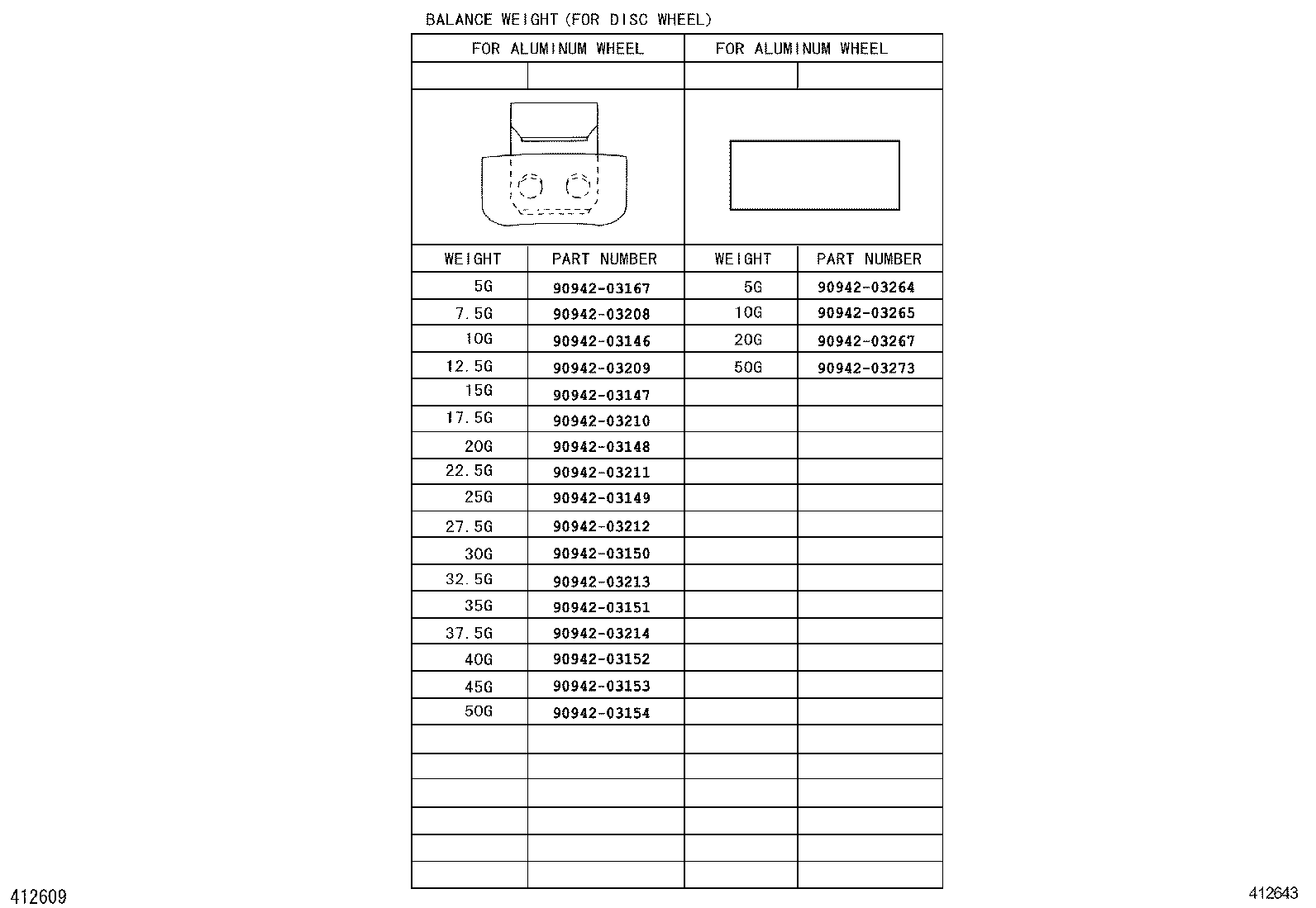

ILLUST NO. 2 OF 3(0612- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||

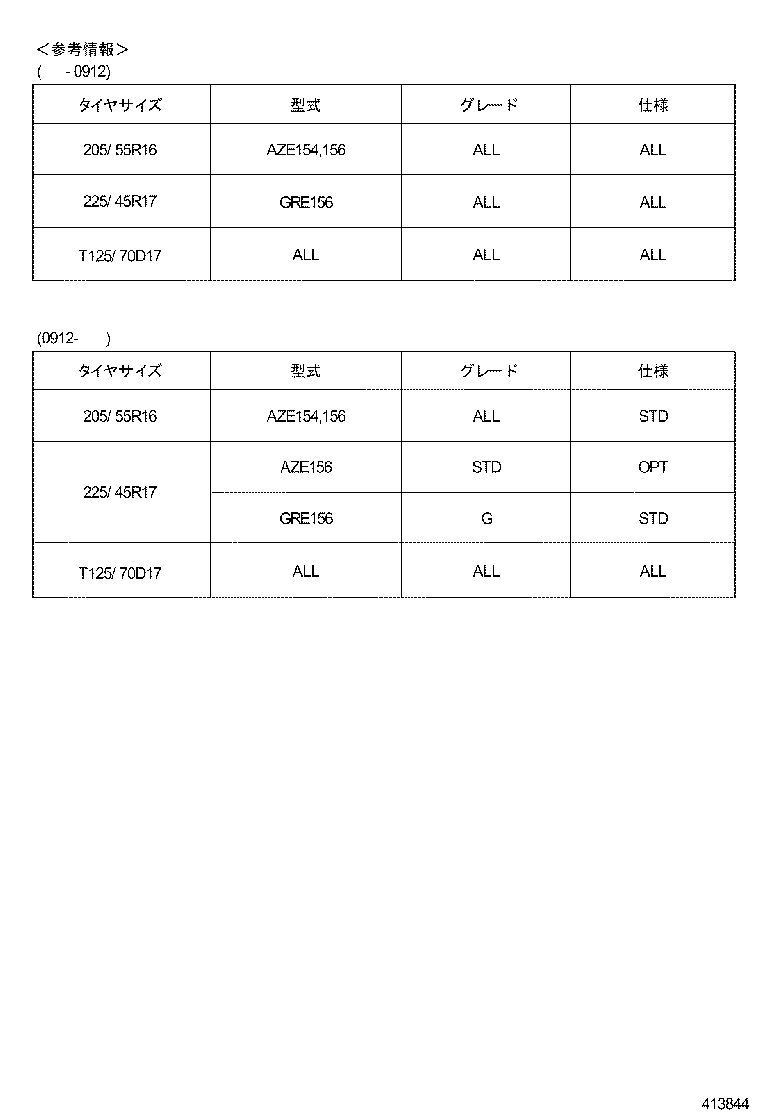

ILLUST NO. 3 OF 3(0612- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
