AZE154H-CHXNK (2009)
Toyota Blade
Production
Dec 2009
-
Apr 2012
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0612- )AZE15#

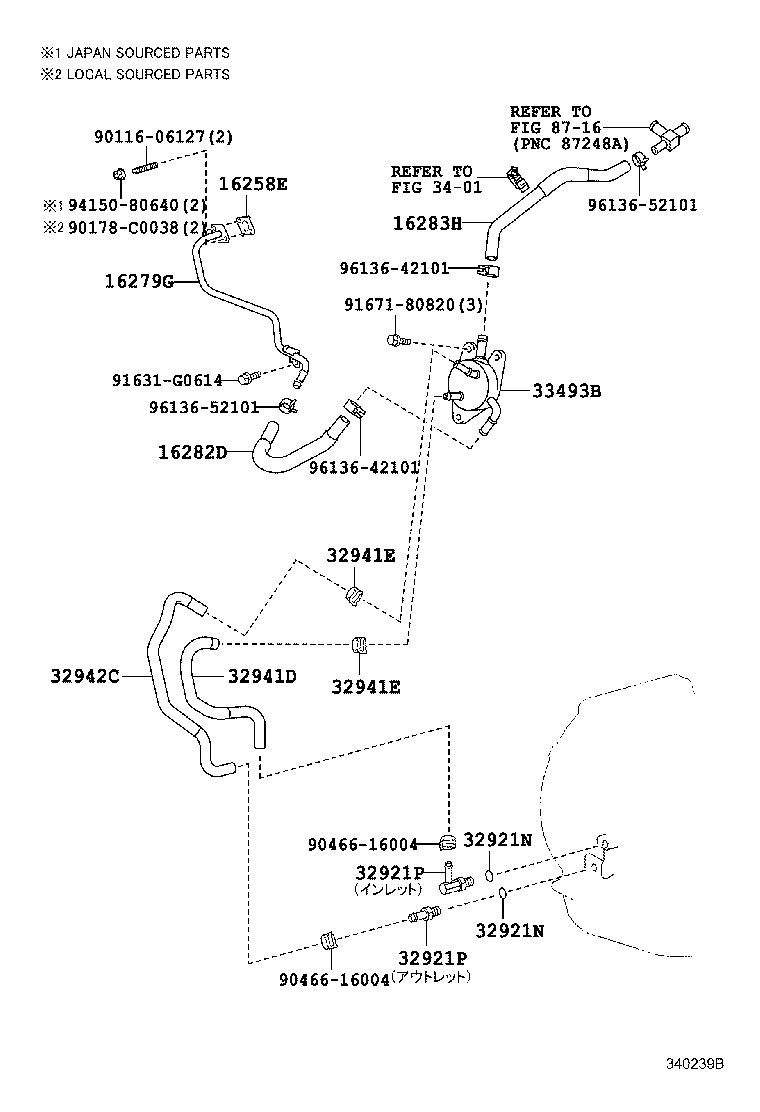

Click highlighted areas on diagram
K112,K112F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258E - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
2AZFE..AZE15# (J) |
1 | ||
| 16258-28040 |
2AZFE..AZE15# |
1 | ||
| 16258-0H050 |
2AZFE..AZE15# (L) |
1 | ||
| 16279G - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-28060 |
2AZFE..AZE15# |
1 | ||
| 16279-28060 |
2AZFE..AZE15# |
1 | ||
| 16279-28060 |
2AZFE..AZE15# 2AZ−FE |
1 | ||
| 16282D - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-28150 |
2AZFE..AZE15# |
1 | ||
| 16282-28150 |
2AZFE..AZE15# |
1 | ||
| 16283H - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-28150 |
2AZFE..AZE15# |
1 | ||
| 16283-28150 |
2AZFE..AZE15# |
1 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AZE15# |
2 | ||
| 90301-10189 |
AZE15# |
2 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AZE15# |
2 | ||
| 90301-10189 |
AZE15# |
2 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
AZE15# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
AZE15# ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
AZE15# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
AZE15# ｱｳﾄﾚｯﾄ |
1 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-13009 |
AZE15# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
AZE15# ｱｳﾄﾚｯﾄ |
1 | ||
| 90407-13009 |
AZE15# ｲﾝﾚｯﾄ |
1 | ||
| 90404-13004 |
AZE15# ｱｳﾄﾚｯﾄ |
1 | ||
| 32941D - HOSE, OIL COOLER INLET | ||||
| 32941-12390 |
AZE15# |
1 | ||
| 32941-12390 |
AZE15# |
1 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90466-16004 |
AZE15# |
2 | ||
| 90467-16022 |
AZE15# |
2 | ||
| 32941E - CLIP(FOR OIL COOLER TUBE) | ||||
| 90466-16004 |
AZE15# |
2 | ||
| 90467-16022 |
AZE15# |
2 | ||
| 32942C - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-12180 |
AZE15# |
1 | ||
| 32942-12180 |
AZE15# |
1 | ||
| 33493B - COOLER, OIL | ||||
| 33493-12060 |
AZE15# |
1 | ||
| 33493-12060 |
AZE15# |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90178-C0038 | ||||
| 90466-16004 | ||||
| 91631-G0614 | ||||
| 91671-80820 | ||||
| 94150-80640 | ||||
| 96136-42101 | ||||
| 96136-52101 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8716 | ||||
