Toyota Blade AZE154 TRANSAXLE ASSY(CVT)

Manufacturers Home
Toyota
JP
BLADE
AZE154H-CHXNK (2009)
3401 - TRANSAXLE ASSY(CVT)

AZE154H-CHXNK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

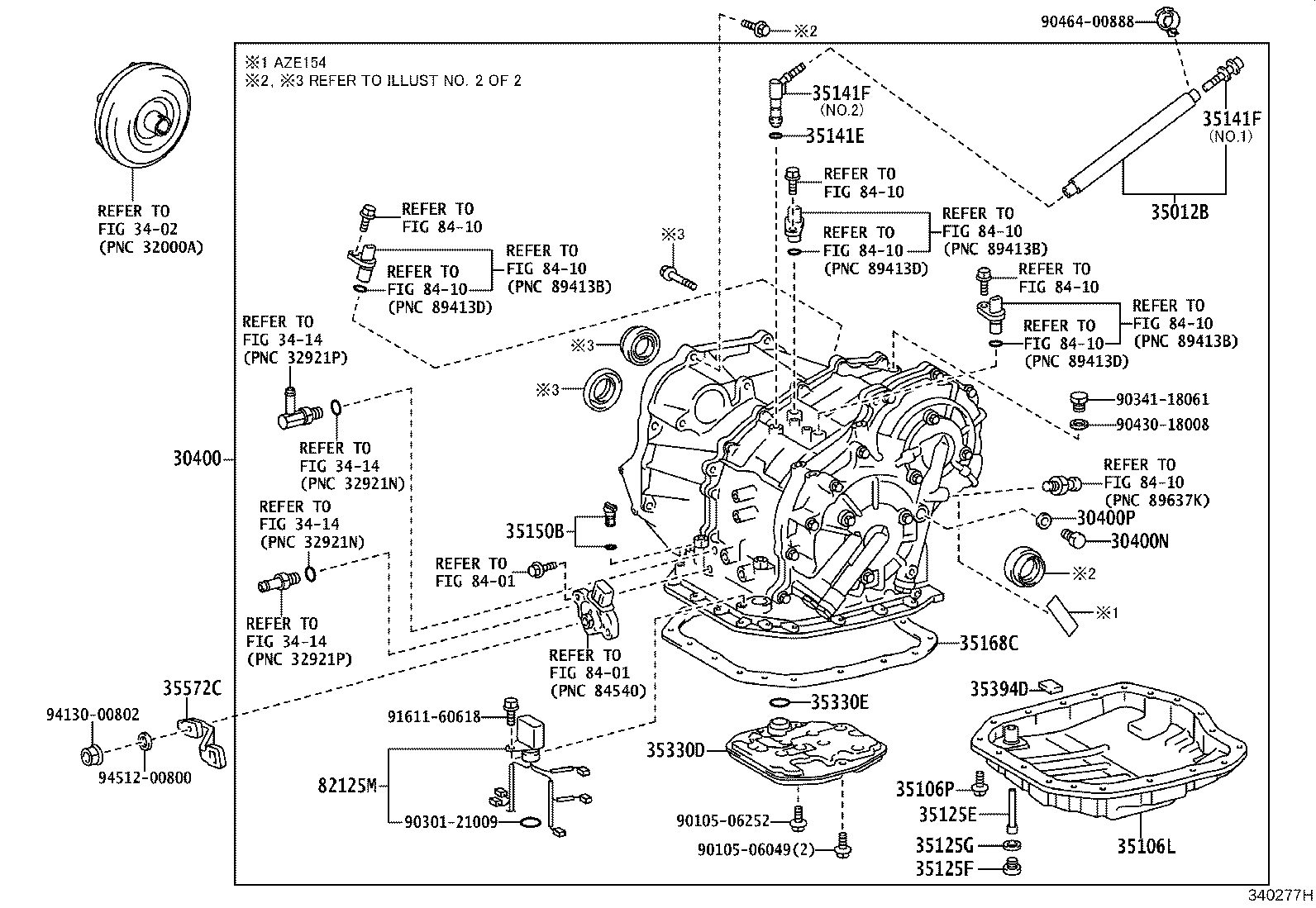

ILLUST NO. 2 OF 3(1103- )AZE15#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-12060	AZE154 K112F	12/2006 - 12/2009	1
30400-12061	AZE154 K112F	07/2011 - 12/2011	1
30400-12060	AZE154 K112F	12/2009 - 07/2011	1
30400-19015	AZE154 K112F	12/2011 - 04/2012	1
30400N - PLUG, REFILL(CVT)
90341-18061	AZE15#	12/2009 - 04/2012	1
90341-18061	AZE15#	12/2006 - 12/2009	1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008	AZE15#	12/2006 - 12/2009	1
90430-18008	AZE15#	12/2009 - 04/2012	1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44011	AZE15#	01/2012 - 04/2012	1
3510A-44010	AZE15#	01/2010 - 01/2012	1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-44022	AZE15#	03/2011 - 12/2999	1
35106-44021	AZE15#	12/2009 - 03/2011	1
35106-44020	AZE15#	12/2006 - 08/2008	1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173	AZE15#	12/2009 - 12/2999	19
90119-06173	AZE15#	12/2006 - 12/2009	19
35125E - TUBE, OVERFLOW(CVT)
35125-44070	AZE15#	12/2006 - 12/2009	1
35125-44070	AZE15#	12/2009 - 04/2012	1
35125F - PLUG, OVERFLOW(CVT)
90341-12034	AZE15#	12/2006 - 12/2009	1
90341-12034	AZE15#	12/2009 - 04/2012	1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008	AZE15#	12/2006 - 12/2009	1
90430-12008	AZE15#	12/2009 - 04/2012	1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005	AZE15#	12/2006 - 12/2009	1
90301-06005	AZE15#	12/2009 - 12/2999	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03164	AZE15# NO.2	12/2006 - 12/2009	1
90930-03164	AZE15# NO.2	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2006 - 12/2009	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03164	AZE15# NO.2	12/2006 - 12/2009	1
90930-03164	AZE15# NO.2	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2006 - 12/2009	1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010	AZE15#	12/2006 - 12/2009	1
35150-44010	AZE15#	12/2009 - 04/2012	1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-63010	AZE15#	12/2006 - 08/2008	1
35168-20010	AZE15#	12/2009 - 12/2999	1
35330D - STRAINER ASSY, OIL
35330-0W040	AZE15#	12/2009 - 04/2012	1
35330-0W040	AZE15#	12/2006 - 12/2009	1
35330E - RING, O (FOR OIL STRAINER)
90301-24013	AZE15#	12/2006 - 12/2009	1
90301-24013	AZE15#	12/2009 - 04/2012	1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011	AZE15#	12/2006 - 12/2009	3
35394-30011	AZE15#	12/2009 - 12/2999	3
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030	AZE15#	12/2009 - 04/2012	1
35572-42030	AZE15#	12/2006 - 12/2009	1
82125M - WIRE, TRANSMISSION
82125-44020	AZE15#	12/2006 - 12/2009	1
82125-44020	AZE15#	12/2009 - 04/2012	1
Common parts
90105-06049
90105-06252
90301-21009
90341-18061
90430-18008
90464-00888
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

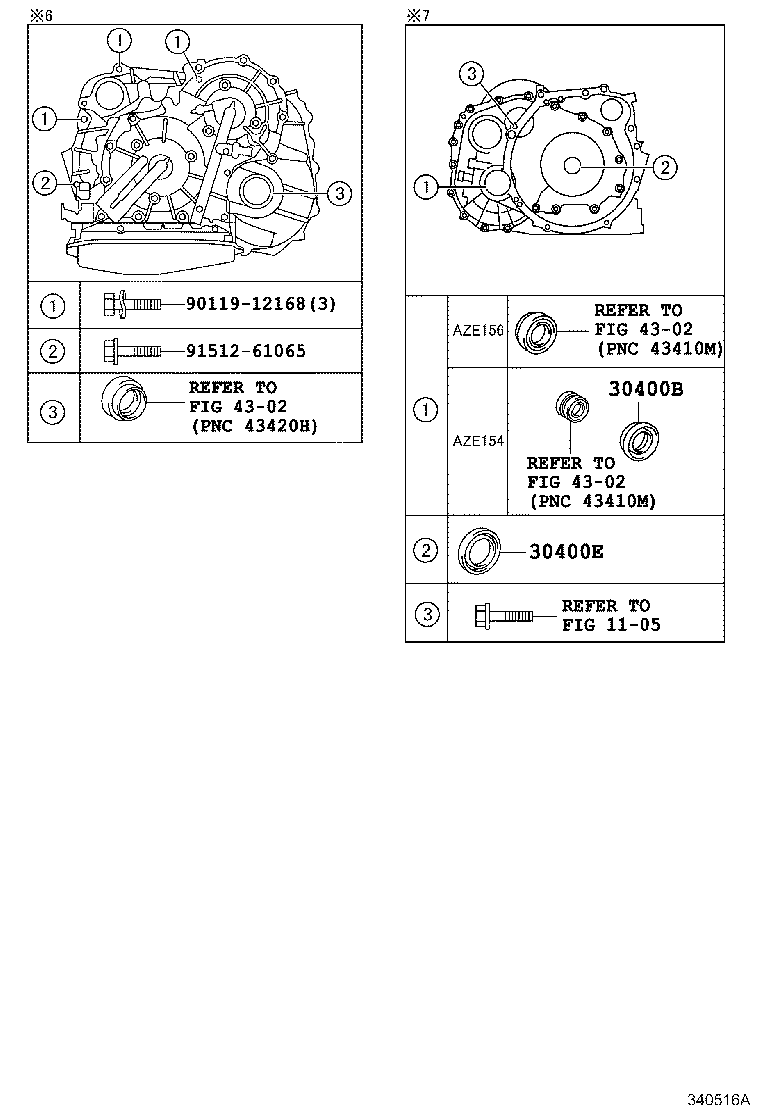

ILLUST NO. 3 OF 3(0612-1103)AZE15#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002	AZE154	12/2006 - 12/2009	1
90311-49002	AZE154	12/2009 - 04/2012	1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025	AZE15#	12/2009 - 12/2011	1
90311-45025	AZE15#	12/2006 - 12/2009	1
90311-45027	AZE15#	12/2011 - 12/2999	1
Common parts
90119-12168
91512-61065
Linked diagrams
1105
4302

ILLUST NO. 3 OF 3(1103- )AZE15#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90311-49002	AZE154	12/2006 - 12/2009	1
90311-49002	AZE154	12/2009 - 04/2012	1
30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP)
90311-45025	AZE15#	12/2009 - 12/2011	1
90311-45025	AZE15#	12/2006 - 12/2009	1
90311-45027	AZE15#	12/2011 - 12/2999	1
Common parts
90119-12168
91512-61065
Linked diagrams
1105
4302

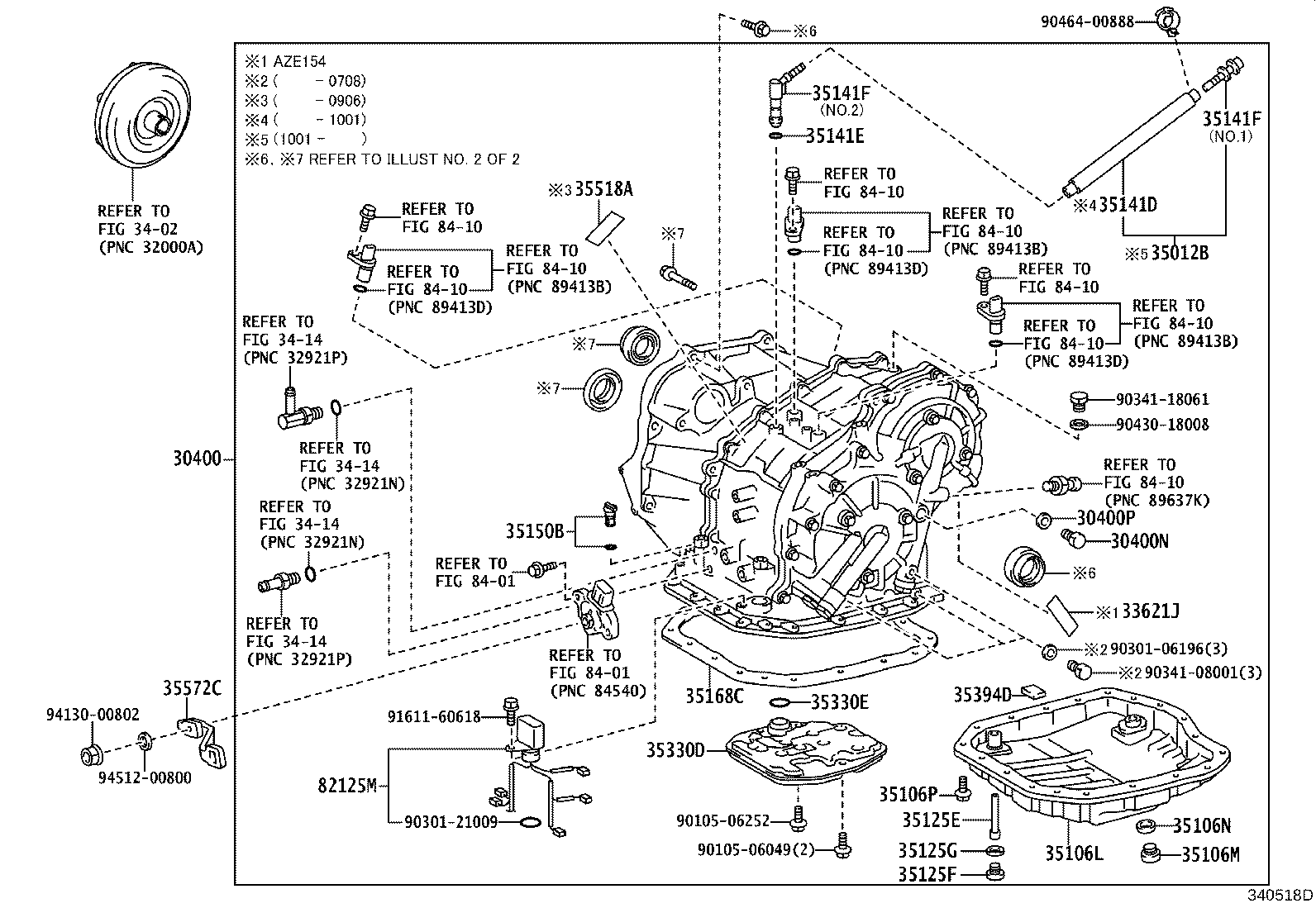

ILLUST NO. 2 OF 3(0612-1103)AZE15#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-12060	AZE154 K112F	12/2006 - 12/2009	1
30400-12061	AZE154 K112F	07/2011 - 12/2011	1
30400-12060	AZE154 K112F	12/2009 - 07/2011	1
30400-19015	AZE154 K112F	12/2011 - 04/2012	1
30400N - PLUG, REFILL(CVT)
90341-18061	AZE15#	12/2009 - 04/2012	1
90341-18061	AZE15#	12/2006 - 12/2009	1
30400P - GASKET, REFILL PLUG(CVT)
90430-18008	AZE15#	12/2006 - 12/2009	1
90430-18008	AZE15#	12/2009 - 04/2012	1
33621J - LABEL, TRANSAXLE OIL INFORMATION
33621-12150	AZE154	12/2009 - 12/2999	1
33621-12150	AZE154	12/2006 - 12/2009	1
35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER
3510A-44011	AZE15#	01/2012 - 04/2012	1
3510A-44010	AZE15#	01/2010 - 01/2012	1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106-44022	AZE15#	03/2011 - 12/2999	1
35106-44021	AZE15#	12/2009 - 03/2011	1
35106-44020	AZE15#	12/2006 - 08/2008	1
35106M - PLUG SUB-ASSY, DRAIN(CVT)
90341-18016	AZE15#	12/2009 - 03/2011	1
90341-18016	AZE15#	12/2006 - 12/2009	1
35106N - GASKET, DRAIN PLUG(CVT)
90430-18008	AZE15#	12/2006 - 12/2009	1
90430-18008	AZE15#	12/2009 - 03/2011	1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90119-06173	AZE15#	12/2009 - 12/2999	19
90119-06173	AZE15#	12/2006 - 12/2009	19
35125E - TUBE, OVERFLOW(CVT)
35125-44070	AZE15#	12/2006 - 12/2009	1
35125-44070	AZE15#	12/2009 - 04/2012	1
35125F - PLUG, OVERFLOW(CVT)
90341-12034	AZE15#	12/2006 - 12/2009	1
90341-12034	AZE15#	12/2009 - 04/2012	1
35125G - GASKET, OVERFLOW PLUG(CVT)
90430-12008	AZE15#	12/2006 - 12/2009	1
90430-12008	AZE15#	12/2009 - 04/2012	1
35141D - HOSE(FOR BREATHER PLUG)
35121-63010	AZE15#	12/2009 - 01/2010	1
35121-63010	AZE15#	12/2006 - 12/2009	1
35141E - RING, O(FOR BREATHER PLUG)
90301-06005	AZE15#	12/2006 - 12/2009	1
90301-06005	AZE15#	12/2009 - 12/2999	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03164	AZE15# NO.2	12/2006 - 12/2009	1
90930-03164	AZE15# NO.2	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2006 - 12/2009	1
35141F - PLUG, BREATHER, NO.1(CVT)
90930-03164	AZE15# NO.2	12/2006 - 12/2009	1
90930-03164	AZE15# NO.2	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2009 - 04/2012	1
90930-03149	AZE15# NO.1	12/2006 - 12/2009	1
35150B - PLUG ASSY, TRANSMISSION CASE
35150-44010	AZE15#	12/2006 - 12/2009	1
35150-44010	AZE15#	12/2009 - 04/2012	1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-63010	AZE15#	12/2006 - 08/2008	1
35168-20010	AZE15#	12/2009 - 12/2999	1
35330D - STRAINER ASSY, OIL
35330-0W040	AZE15#	12/2009 - 04/2012	1
35330-0W040	AZE15#	12/2006 - 12/2009	1
35330E - RING, O (FOR OIL STRAINER)
90301-24013	AZE15#	12/2006 - 12/2009	1
90301-24013	AZE15#	12/2009 - 04/2012	1
35394D - MAGNET, OIL CLEANER(CVT)
35394-30011	AZE15#	12/2006 - 12/2009	3
35394-30011	AZE15#	12/2009 - 12/2999	3
35518A - LABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35518-63010	AZE15#	12/2006 - 06/2009	1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-42030	AZE15#	12/2009 - 04/2012	1
35572-42030	AZE15#	12/2006 - 12/2009	1
82125M - WIRE, TRANSMISSION
82125-44020	AZE15#	12/2006 - 12/2009	1
82125-44020	AZE15#	12/2009 - 04/2012	1
Common parts
90105-06049
90105-06252
90301-06196
90301-21009
90341-08001
90341-18061
90430-18008
90464-00888
91611-60618
94130-00802
94512-00800
Linked diagrams
3402
3414
8401
8410

ILLUST NO. 1 OF 3(0612- )AZE15#

Click highlighted areas on diagram

K112,K112F

Part #	Description	Period	Qty
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-12062	AZE154 K112F	12/2011 - 04/2012	1
30140-12060	AZE154 K112F	12/2006 - 12/2009	1
30140-12061	AZE154 K112F	07/2011 - 12/2011	1
30140-12060	AZE154 K112F	12/2009 - 07/2011	1
