AZE154H-CHXNK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )2AZFE

Click highlighted areas on diagram

*194

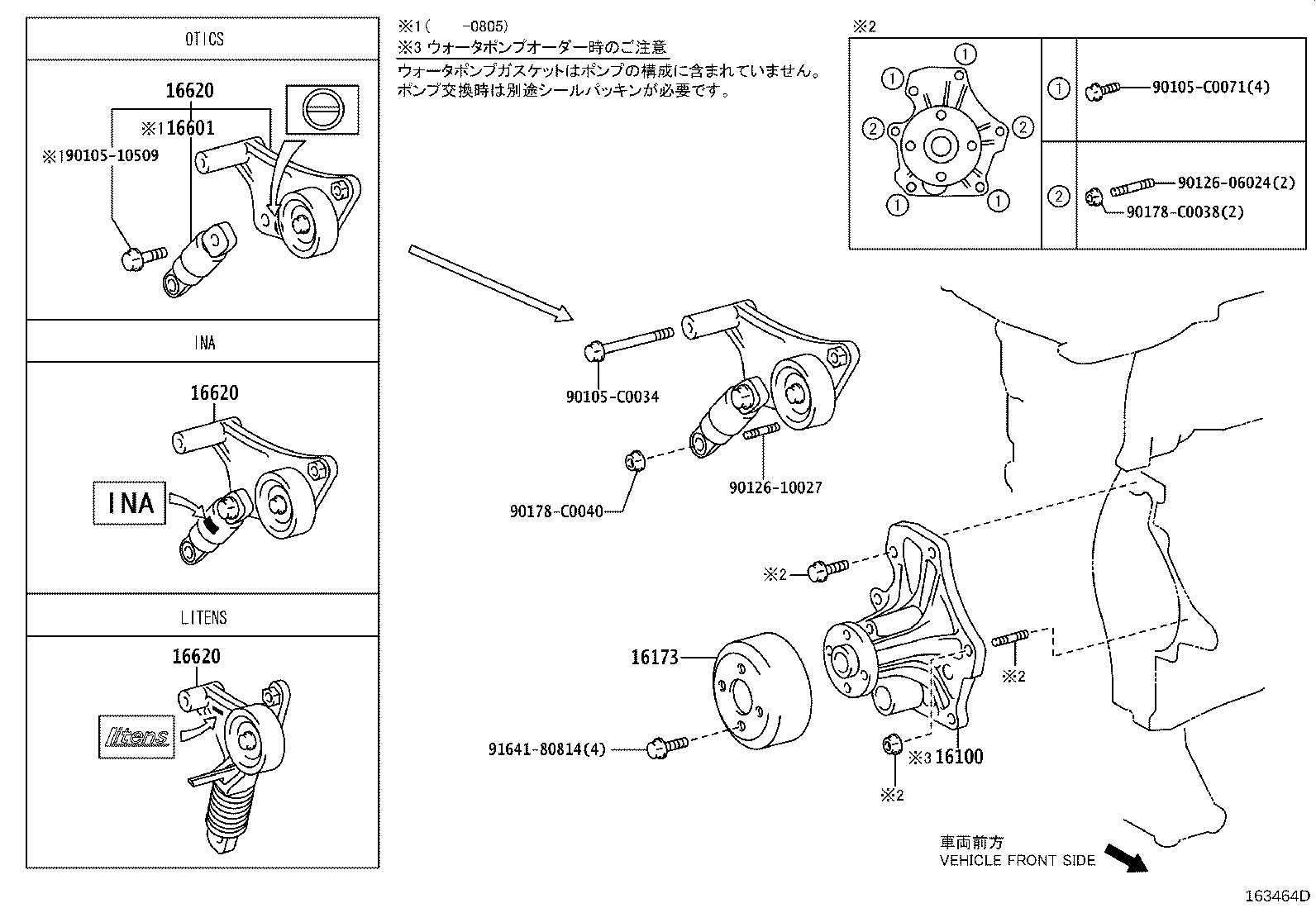

diagram 16100 16173 16601 16620 16620 16620 9010510509 90105C0034 90105C0071 9012606024 9012610027 90178C0038 90178C0040 9164180814
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-0H040

2AZFE..AZE15#

*194

 1
16100-0H040

2AZFE..AZE15#

2AZ−FE,*194

 1
16100-28041

2AZFE..AZE15#

2AZ−FE,*195

 1
16100-0H040

2AZFE..AZE15#

 1
16173 - PULLEY, WATER PUMP
16173-0H040

2AZFE..AZE15#

*194

 1
16173-28020

2AZFE..AZE15#

 1
16173-0H040

2AZFE..AZE15#

2AZ−FE,*194

 1
16173-28020

2AZFE..AZE15#

2AZ−FE,*195

 1
16601 - TENSIONER SUB-ASSY, V-RIBBED BELT
16601-28021

2AZFE..AZE15#

OTICS

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041

2AZFE..AZE15#

(J)

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*194

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*195

 1
16620-0H020

2AZFE..AZE15#

*194

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041

2AZFE..AZE15#

(J)

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*194

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*195

 1
16620-0H020

2AZFE..AZE15#

*194

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041

2AZFE..AZE15#

(J)

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*194

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*195

 1
16620-0H020

2AZFE..AZE15#

*194

 1
Common parts
90105-10509
90105-C0034
90105-C0071
90126-06024
90126-10027
90178-C0038
90178-C0040
91641-80814

(1011- )2AZFE

Click highlighted areas on diagram

*195

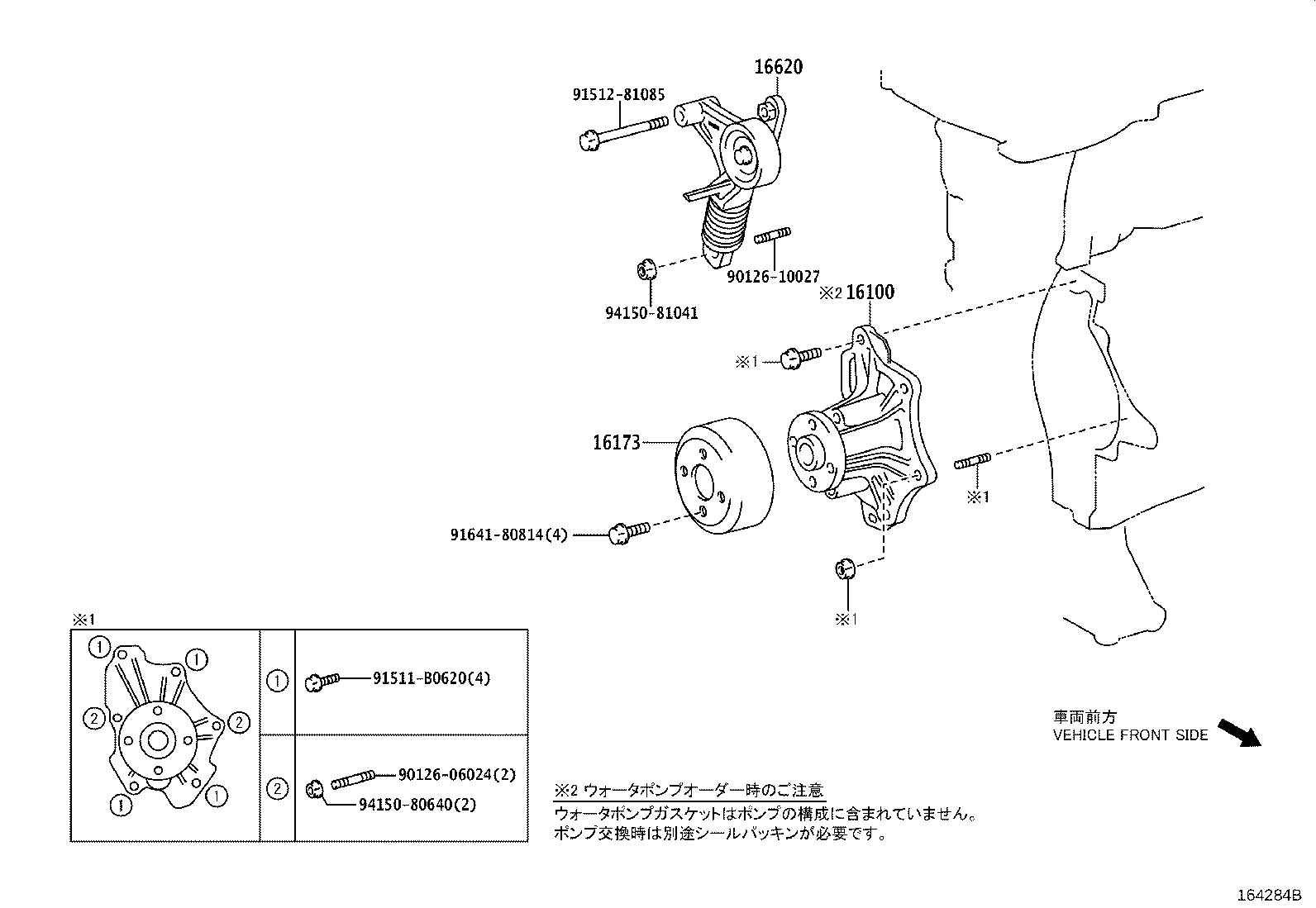

diagram 16100 16173 16620 9012606024 9012610027 91511B0620 9151281085 9164180814 9415080640 9415081041
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-0H040

2AZFE..AZE15#

*194

 1
16100-0H040

2AZFE..AZE15#

2AZ−FE,*194

 1
16100-28041

2AZFE..AZE15#

2AZ−FE,*195

 1
16100-0H040

2AZFE..AZE15#

 1
16173 - PULLEY, WATER PUMP
16173-0H040

2AZFE..AZE15#

*194

 1
16173-28020

2AZFE..AZE15#

 1
16173-0H040

2AZFE..AZE15#

2AZ−FE,*194

 1
16173-28020

2AZFE..AZE15#

2AZ−FE,*195

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-28041

2AZFE..AZE15#

(J)

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*194

 1
16620-0H020

2AZFE..AZE15#

2AZ−FE,*195

 1
16620-0H020

2AZFE..AZE15#

*194

 1
Common parts
90126-06024
90126-10027
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041
