AZE154H-CHXEK (2009)
Toyota Blade
(0612- )

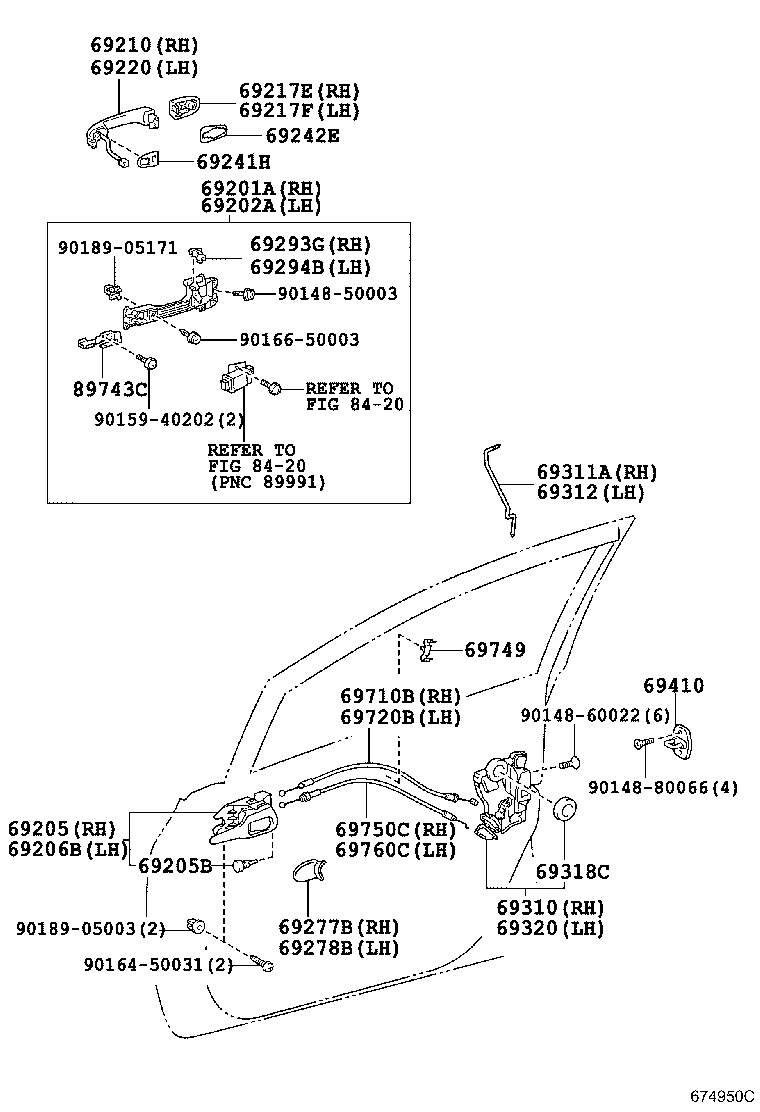

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52060 |
AZE15#,GRE156 |
1 | ||
| 69201-52060 |
AZE15#,GRE156 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52040 |
AZE15#,GRE156 |
1 | ||
| 69202-52040 |
AZE15#,GRE156 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12220B5 |
AZE15#,GRE156..G GRAY,TRIM0#,8# |
1 | ||
| 69205-12220B6 |
AZE15#,GRE156 ORNAMENT SILVER,TRIM0#,8# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
AZE15#,GRE156 |
2 | ||
| 90541-04027 |
AZE15#,GRE156 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12220B6 |
AZE15#,GRE156 ORNAMENT SILVER,TRIM0#,8# |
1 | ||
| 69206-12220B5 |
AZE15#,GRE156..G GRAY,TRIM0#,8# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-12320B5 |
AZE15#,GRE156 SILVER ME.,1C0 |
1 | ||
| 69210-12320A6 |
AZE15#,GRE156 COOL WHITE PEARL CS.,075 |
1 | ||
| 69210-12320E8 |
AZE15#,GRE156 DEEP GOLD PEARL CS.,4T7 |
1 | ||
| 69210-12320C0 |
AZE15#,GRE156 BLACK MC.,209 |
1 | ||
| 69210-12320D9 |
AZE15#,GRE156 GINGER RED M.M.,3R6 |
1 | ||
| 69210-12320D2 |
AZE15#,GRE156 SUPER RED 5,3P0 |
1 | ||
| 69210-12320J8 |
AZE15#,GRE156 DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320P3 |
AZE15#,GRE156..G SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-4202005 |
AZE15#,GRE156 COOL WHITE PEARL CS.,075 |
1 | ||
| 69217-42020L7 |
AZE15#,GRE156 DEEP GOLD PEARL CS.,4T7 |
1 | ||
| 69217-42020B3 |
AZE15#,GRE156 SILVER ME.,1C0 |
1 | ||
| 69217-42020X7 |
AZE15#,GRE156 GINGER RED M.M.,3R6 |
1 | ||
| 69217-42020C2 |
AZE15#,GRE156 BLACK MC.,209 |
1 | ||
| 69217-42020R9 |
AZE15#,GRE156 DK.BLUE MC.,8S6 |
1 | ||
| 69217-42020X0 |
AZE15#,GRE156 SUPER RED 5,3P0 |
1 | ||
| 69217-42020S0 |
AZE15#,GRE156..G SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-12040B5 |
AZE15#,GRE156 SILVER ME.,1C0 |
1 | ||
| 69217-1204001 |
AZE15#,GRE156 COOL WHITE PEARL CS.,075 |
1 | ||
| 69217-12040C2 |
AZE15#,GRE156 BLACK MC.,209 |
1 | ||
| 69217-12040L1 |
AZE15#,GRE156 DEEP GOLD PEARL CS.,4T7 |
1 | ||
| 69217-12040R5 |
AZE15#,GRE156 DK.BLUE MC.,8S6 |
1 | ||
| 69217-12040D5 |
AZE15#,GRE156 SUPER RED 5,3P0 |
1 | ||
| 69217-12040X2 |
AZE15#,GRE156 GINGER RED M.M.,3R6 |
1 | ||
| 69217-12040P6 |
AZE15#,GRE156..G SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-12320E8 |
AZE15#,GRE156 DEEP GOLD PEARL CS.,4T7 |
1 | ||
| 69210-12320J8 |
AZE15#,GRE156 DK.BLUE MC.,8S6 |
1 | ||
| 69210-12320B5 |
AZE15#,GRE156 SILVER ME.,1C0 |
1 | ||
| 69210-12320D9 |
AZE15#,GRE156 GINGER RED M.M.,3R6 |
1 | ||
| 69210-12320D2 |
AZE15#,GRE156 SUPER RED 5,3P0 |
1 | ||
| 69210-12320C0 |
AZE15#,GRE156 BLACK MC.,209 |
1 | ||
| 69210-12320A6 |
AZE15#,GRE156 COOL WHITE PEARL CS.,075 |
1 | ||
| 69210-12320P3 |
AZE15#,GRE156..G SUPER CHROME ME. 2,070 ,1F7 ,209 ,3R6 ,4T7 ,6V4 ,8S6 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
AZE15#,GRE156 |
2 | ||
| 69241-42020 |
AZE15#,GRE156 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-42010 |
AZE15#,GRE156 |
2 | ||
| 69242-52020 |
AZE15#,GRE156 |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-12180J0 |
AZE15#,GRE156..G DK.BLUE,TRIM0#,8# |
1 | ||
| 69277-12180J0 |
AZE15#,GRE156 DK.BLUE,TRIM0#,8# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-12180J0 |
AZE15#,GRE156..G DK.BLUE,TRIM0#,8# |
1 | ||
| 69278-12180J0 |
AZE15#,GRE156 DK.BLUE,TRIM0#,8# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
AZE15#,GRE156 |
1 | ||
| 69293-12030 |
AZE15#,GRE156 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
AZE15#,GRE156 |
1 | ||
| 69293-12040 |
AZE15#,GRE156 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-42210 |
AZE15#,GRE156 |
1 | ||
| 69030-42210 |
AZE15#,GRE156 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-12150 |
AZE15#,GRE156 |
1 | ||
| 69311-12150 |
AZE15#,GRE156 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-12150 |
AZE15#,GRE156 |
1 | ||
| 69312-12150 |
AZE15#,GRE156 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
AZE15#,GRE156 |
2 | ||
| 69318-51010 |
AZE15#,GRE156 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-42230 |
AZE15#,GRE156 |
1 | ||
| 69040-42230 |
AZE15#,GRE156 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33010 |
AZE15#,GRE156 |
2 | ||
| 69410-33010 |
AZE15#,GRE156 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-12110 |
AZE15#,GRE156 |
1 | ||
| 69710-12110 |
AZE15#,GRE156 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-12110 |
AZE15#,GRE156 |
1 | ||
| 69710-12110 |
AZE15#,GRE156 |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
AZE15#,GRE156 |
2 | ||
| 69749-32040 |
AZE15#,GRE156 |
2 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-12130 |
AZE15#,GRE156 |
1 | ||
| 69750-12130 |
AZE15#,GRE156 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-12130 |
AZE15#,GRE156 |
1 | ||
| 69750-12130 |
AZE15#,GRE156 |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-47010 |
AZE15#,GRE156 運転席側 |
1 | ||
| 89743-47020 |
AZE15#,GRE156 助手席側 |
1 | ||
| 89743-47020 |
AZE15#,GRE156 助手席側 |
1 | ||
| 89743-47010 |
AZE15#,GRE156 運転席側 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80066 | ||||
| 90159-40202 | ||||
| 90164-50031 | ||||
| 90166-50003 | ||||
| 90189-05003 | ||||
| 90189-05171 | ||||
| Linked diagrams | ||||
| 8420 | ||||
