AZE154H-CHXEK (2009)

Toyota Blade

Production Dec 2009 - Apr 2012
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0612- )2AZFE

Click highlighted areas on diagram

12V 100A

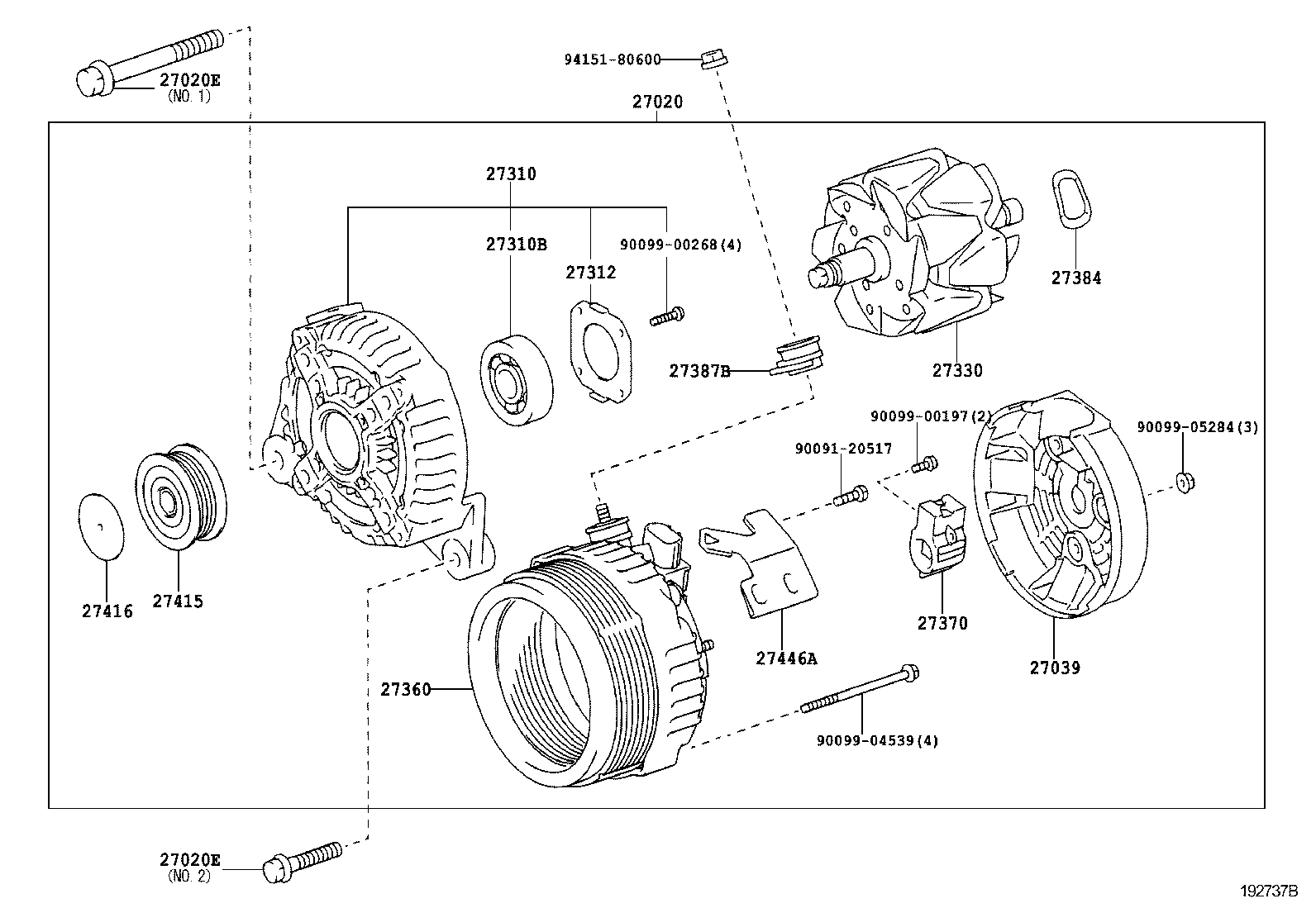

diagram 27020 27020E 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387B 27415 27416 27446A 9009120517 9009900197 9009900268 9009904539 9009905284 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-28300

2AZFE..AZE15#

12V 100A

 1
27060-28301

2AZFE..AZE15#

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

2AZFE..AZE15#

NO.1

 1
91551-80840

2AZFE..AZE15#

NO.2

 1
91512-81085

2AZFE..AZE15#

NO.1

 1
91551-80840

2AZFE..AZE15#

NO.2

 1
27020E - BOLT(FOR ALTERNATOR)
91512-81085

2AZFE..AZE15#

NO.1

 1
91551-80840

2AZFE..AZE15#

NO.2

 1
91512-81085

2AZFE..AZE15#

NO.1

 1
91551-80840

2AZFE..AZE15#

NO.2

 1
27039 - COVER, ALTERNATOR REAR END
27039-31390

2AZFE,2GRFE..AZE15#,GRE156

 1
27039-27060

2AZFE..AZE15#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-28120

2AZFE..AZE15#

 1
27310-28120

2AZFE..AZE15#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

2AZFE,2GRFE..AZE15#,GRE156

 1
90099-10223

2AZFE,2GRFE..AZE15#,GRE156

 1
27312 - PLATE, RETAINER
27312-72100

2AZFE,2GRFE..AZE15#,GRE156

 1
27312-72100

2AZFE,2GRFE..AZE15#,GRE156

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070

2AZFE,2GRFE..AZE15#,GRE156

 1
27330-30070

2AZFE,2GRFE..AZE15#,GRE156

 1
27360 - COIL ASSY, ALTERNATOR
27360-28170

2AZFE..AZE15#

 1
27360-28170

2AZFE..AZE15#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

2AZFE..AZE15#

 1
27370-58460

2AZFE..AZE15#

 1
27384 - WASHER
27384-50030

2AZFE,2GRFE..AZE15#,GRE156

 1
27384-50030

2AZFE,2GRFE..AZE15#,GRE156

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

2AZFE,2GRFE..AZE15#,GRE156

 1
27387-20130

2AZFE,2GRFE..AZE15#,GRE156

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W041

2AZFE..AZE15#

 1
27415-0W040

2AZFE..AZE15#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W020

2AZFE..AZE15#

 1
27416-0W020

2AZFE..AZE15#

 1
27446A - CLAMP
27446-28120

2AZFE..AZE15#

 1
27446-28120

2AZFE..AZE15#

 1
Common parts
90091-20517
90099-00197
90099-00268
90099-04539
90099-05284
94151-80600
