AZE154H-CHXEK (2009)
Toyota Blade

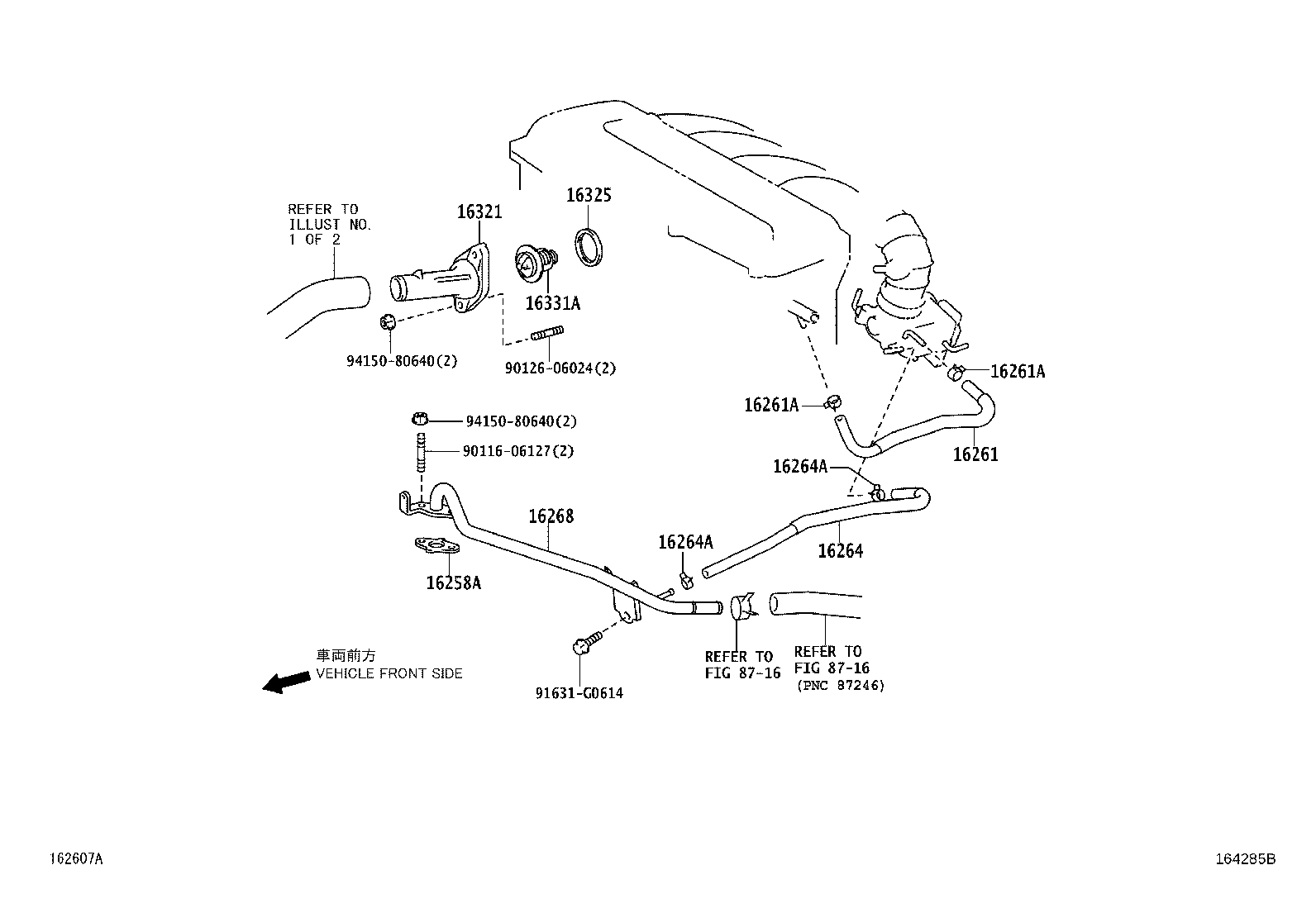

ILLUST NO. 2 OF 2(0612- )2AZFE
*194
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28030 |
2AZFE..AZE15# |
1 | ||
| 16258-0H040 |
2AZFE..AZE15# 2AZ−FE,(L),*194 |
1 | ||
| 16258-0H040 |
2AZFE..AZE15# (L),*194 |
1 | ||
| 16258-28030 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16258-28030 |
2AZFE..AZE15# (J),*194 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-28100 |
2AZFE..AZE15# |
1 | ||
| 16261-28100 |
2AZFE..AZE15# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28120 |
2AZFE..AZE15# |
1 | ||
| 16264-28120 |
2AZFE..AZE15# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28070 |
2AZFE..AZE15# *194 |
1 | ||
| 16268-28010 |
2AZFE..AZE15# 2AZ−FE |
1 | ||
| 16268-28070 |
2AZFE..AZE15# |
1 | ||
| 16268-28070 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0H060 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16321-0H060 |
2AZFE..AZE15# *194 |
1 | ||
| 16321-0H060 |
2AZFE..AZE15# |
1 | ||
| 16321-28020 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0H010 |
2AZFE..AZE15# *194 |
1 | ||
| 16323-0H010 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16323-0H010 |
2AZFE..AZE15# |
1 | ||
| 16323A - GASKET(FOR WATER INLET HOUSING) | ||||
| 90301-24019 |
2AZFE..AZE15# |
1 | ||
| 90301-C0029 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 90301-C0029 |
2AZFE..AZE15# *194 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90910-09087 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 90910-09087 |
2AZFE..AZE15# |
1 | ||
| 90910-09087 |
2AZFE..AZE15# *194 |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 90301-37005 |
2AZFE..AZE15# |
1 | ||
| 90301-C0030 |
2AZFE..AZE15# *194 |
1 | ||
| 90301-C0030 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16323D - COCK ASSY, DRAIN(FOR WATER INLET HOUSING) | ||||
| 90910-09129 |
2AZFE..AZE15# *194 |
1 | ||
| 90910-09129 |
2AZFE..AZE15# |
1 | ||
| 90910-09129 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2AZFE..AZE15# (J),*194 |
1 | ||
| 16325-28010 |
2AZFE..AZE15# (J) |
1 | ||
| 16325-28010 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# (L) |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# 2AZ−FE,(L),*194 |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# (L),*194 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,2AZ−FE,(J),*194 |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,(J) |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,2AZ−FE,*195 |
1 | ||
| 90916-C3001 |
2AZFE..AZE15# *WAX 82−95,(L) |
1 | ||
| 90916-C3001 |
2AZFE..AZE15# *WAX 82−95,(L),*194 |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,(J),*194 |
1 | ||
| Common parts | ||||
| 90105-C0075 | ||||
| 90116-06127 | ||||
| 90126-06024 | ||||
| 90178-C0038 | ||||
| 91631-G0614 | ||||
| Linked diagrams | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1011- )2AZFE
*195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28030 |
2AZFE..AZE15# |
1 | ||
| 16258-0H040 |
2AZFE..AZE15# 2AZ−FE,(L),*194 |
1 | ||
| 16258-0H040 |
2AZFE..AZE15# (L),*194 |
1 | ||
| 16258-28030 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16258-28030 |
2AZFE..AZE15# (J),*194 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-28100 |
2AZFE..AZE15# |
1 | ||
| 16261-28100 |
2AZFE..AZE15# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28120 |
2AZFE..AZE15# |
1 | ||
| 16264-28120 |
2AZFE..AZE15# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 96135-51300 |
2AZFE..AZE15# TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 96137-41501 |
2AZFE..AZE15# TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28070 |
2AZFE..AZE15# *194 |
1 | ||
| 16268-28010 |
2AZFE..AZE15# 2AZ−FE |
1 | ||
| 16268-28070 |
2AZFE..AZE15# |
1 | ||
| 16268-28070 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0H060 |
2AZFE..AZE15# 2AZ−FE,*194 |
1 | ||
| 16321-0H060 |
2AZFE..AZE15# *194 |
1 | ||
| 16321-0H060 |
2AZFE..AZE15# |
1 | ||
| 16321-28020 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
2AZFE..AZE15# (J),*194 |
1 | ||
| 16325-28010 |
2AZFE..AZE15# (J) |
1 | ||
| 16325-28010 |
2AZFE..AZE15# 2AZ−FE,*195 |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# (L) |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# 2AZ−FE,(L),*194 |
1 | ||
| 16325-0H030 |
2AZFE..AZE15# (L),*194 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,2AZ−FE,(J),*194 |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,(J) |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,2AZ−FE,*195 |
1 | ||
| 90916-C3001 |
2AZFE..AZE15# *WAX 82−95,(L) |
1 | ||
| 90916-C3001 |
2AZFE..AZE15# *WAX 82−95,(L),*194 |
1 | ||
| 90916-03136 |
2AZFE..AZE15# *WAX 82−95,(J),*194 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90126-06024 | ||||
| 91631-G0614 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8716 | ||||
