SCP92-BEXEK (2005)
Toyota Belta
Production
Nov 2005
-
Aug 2008
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0511- )KSP92,SCP92

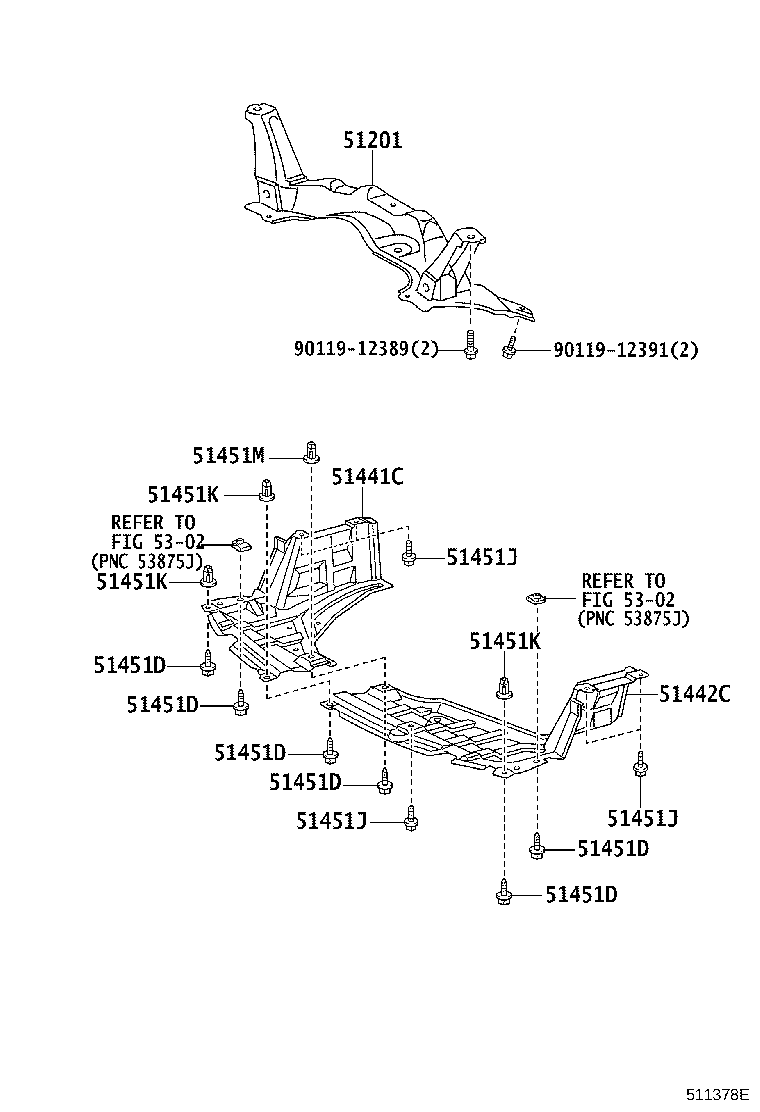

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-52080 |
KSP92,SCP92 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-52130 |
KSP92,SCP92 |
1 | ||
| 51441-52131 |
KSP92,SCP92 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-52082 |
KSP92,NCP96,SCP92 |
1 | ||
| 51442-52081 |
KSP92,NCP96,SCP92 |
1 | ||
| 51442-52080 |
KSP92,NCP96,SCP92 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60383 |
KSP92,NCP96,SCP92 |
6 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06767 |
KSP92,NCP96,SCP92 |
5 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06767 |
KSP92,NCP96,SCP92 |
5 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06767 |
KSP92,NCP96,SCP92 |
5 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
KSP92,NCP96,SCP92 |
3 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
KSP92,NCP96,SCP92 |
3 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06076 |
KSP92,NCP96,SCP92 |
3 | ||
| 51451M - GROMMET, SCREW, NO.2 | ||||
| 90189-06076 |
KSP92,NCP96,SCP92 |
1 | ||
| Common parts | ||||
| 90119-12389 | ||||
| 90119-12391 | ||||
| Linked diagrams | ||||
| 5302 | ||||
