NCP96-BEPNK (2005)

Toyota Belta

Production Nov 2005 - Aug 2008
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )

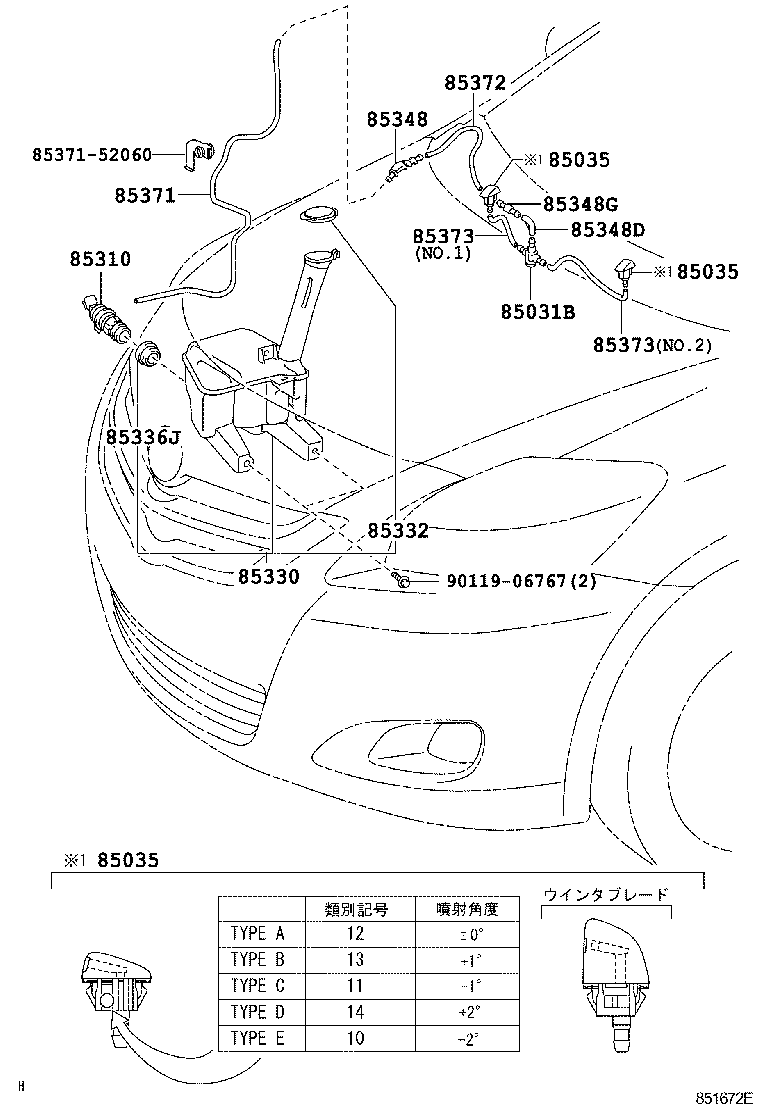

Click highlighted areas on diagram

diagram 85031B 85035 85035 85035 85310 85330 85332 85336J 85348 85348D 85348G 85371 8537152060 85372 85373 85373 9011906767
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85321-30080

KSP92,NCP96,SCP92

 1
85035 - NOZZLE SUB-ASSY, WASHER
85381-52310

KSP92,NCP96,SCP92

TYPE E:ｲﾗｽﾄ参照

 2
85381-52290

KSP92,NCP96,SCP92

TYPE C:ｲﾗｽﾄ参照

 2
85381-52280

KSP92,NCP96,SCP92

TYPE B:ｲﾗｽﾄ参照

 2
85381-52250

KSP92,NCP96,SCP92

TYPE A:ｲﾗｽﾄ参照

 2
85381-52300

KSP92,NCP96,SCP92

TYPE D:ｲﾗｽﾄ参照

 2
85381-52320

KSP92,NCP96,SCP92

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-52310

KSP92,NCP96,SCP92

TYPE E:ｲﾗｽﾄ参照

 2
85381-52290

KSP92,NCP96,SCP92

TYPE C:ｲﾗｽﾄ参照

 2
85381-52280

KSP92,NCP96,SCP92

TYPE B:ｲﾗｽﾄ参照

 2
85381-52250

KSP92,NCP96,SCP92

TYPE A:ｲﾗｽﾄ参照

 2
85381-52300

KSP92,NCP96,SCP92

TYPE D:ｲﾗｽﾄ参照

 2
85381-52320

KSP92,NCP96,SCP92

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-52310

KSP92,NCP96,SCP92

TYPE E:ｲﾗｽﾄ参照

 2
85381-52290

KSP92,NCP96,SCP92

TYPE C:ｲﾗｽﾄ参照

 2
85381-52280

KSP92,NCP96,SCP92

TYPE B:ｲﾗｽﾄ参照

 2
85381-52250

KSP92,NCP96,SCP92

TYPE A:ｲﾗｽﾄ参照

 2
85381-52300

KSP92,NCP96,SCP92

TYPE D:ｲﾗｽﾄ参照

 2
85381-52320

KSP92,NCP96,SCP92

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

KSP92,NCP96,SCP92

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52220

KSP92,NCP96,SCP92

 1
85315-52230

KSP92,NCP96,SCP92

寒冷地仕様

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

KSP92,NCP96,SCP92

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

KSP92,NCP96,SCP92

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85385-52390

KSP92,NCP96,SCP92

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85336-12230

KSP92,NCP96,SCP92

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

KSP92,NCP96,SCP92

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

KSP92,NCP96,SCP92

*H,L=780

 1
90099-33080

KSP92,NCP96,SCP92

*H,L=780,寒冷地仕様

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KSP92,NCP96,SCP92

*H,L=540

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP92,NCP96,SCP92

*H,L=410,NO.1,NO.2

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

KSP92,NCP96,SCP92

*H,L=410,NO.1,NO.2

 1
Common parts
85371-52060
90119-06767
