NCP96-BEPEK (2005)
Toyota Belta

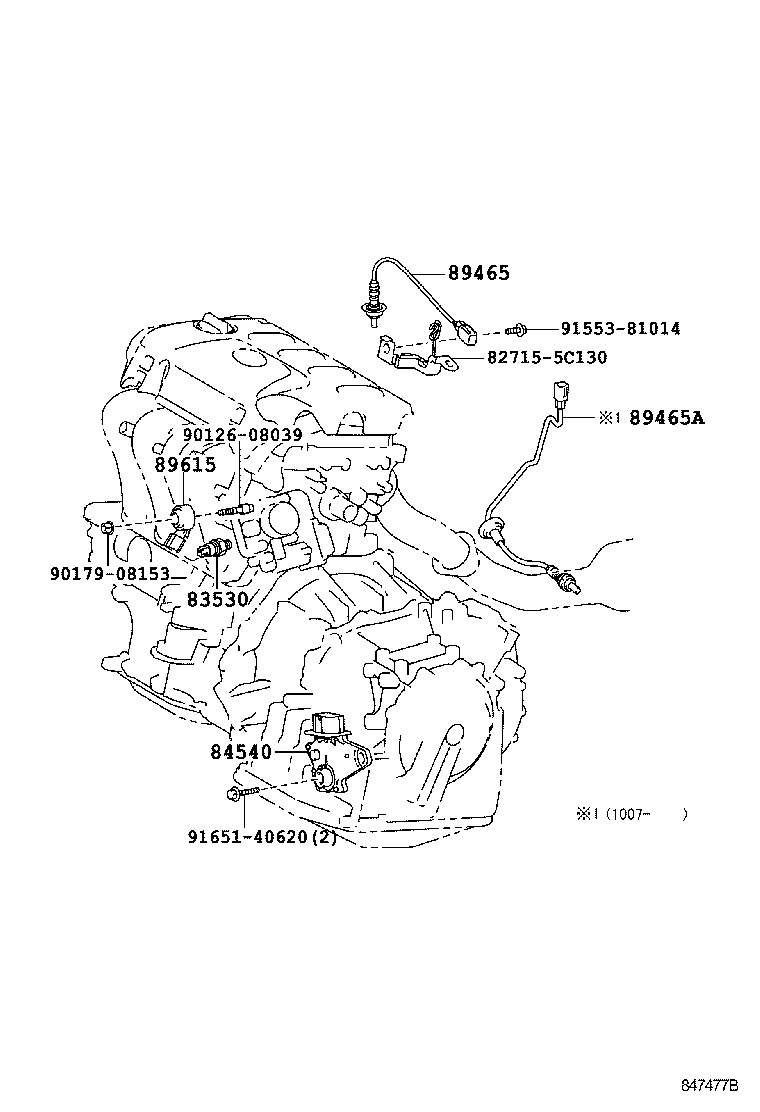

ILLUST NO. 1 OF 7(0511- )NCP96
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
KSP92,NCP96,SCP92 DENSO |
1 | ||
| 83530-60020 |
KSP92,NCP96,SCP92 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-46010 |
NCP96 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52390 |
NCP96 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
KSP92,NCP96,SCP92 |
1 | ||
| Common parts | ||||
| 82715-5C130 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

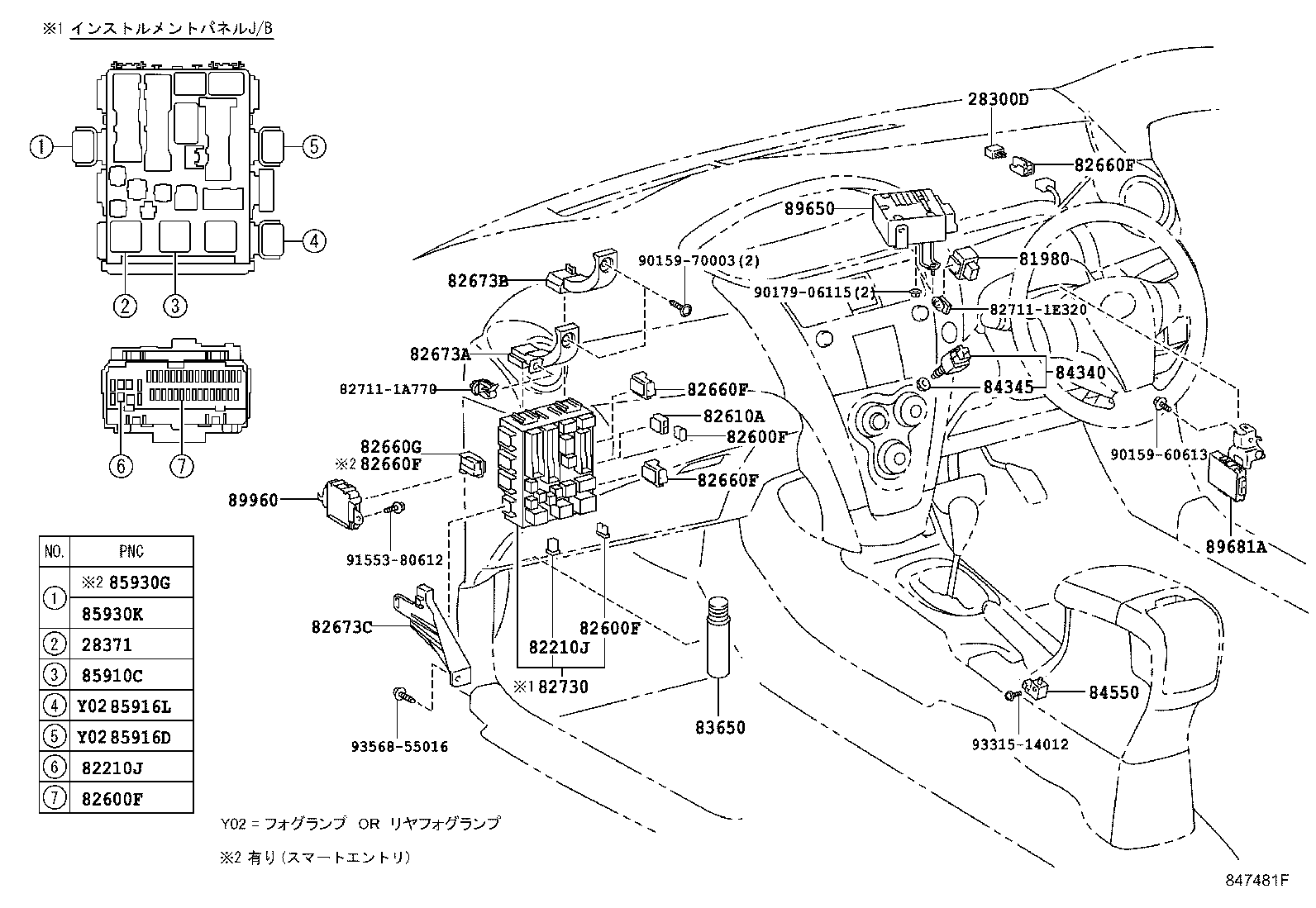

ILLUST NO. 4 OF 7(0511- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
2NZFE,2SZFE..NCP96,SCP92..G |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 |
1 | ||
| 90987-02030 |
1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
KSP92,NCP96,SCP92 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP92,NCP96,SCP92 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
KSP92,NCP96,SCP92 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
KSP92,NCP96,SCP92 30A,ﾒｽ端子,桃 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP92,NCP96,SCP92 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
KSP92,NCP96,SCP92 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
KSP92,NCP96,SCP92 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP92,NCP96,SCP92 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP92,NCP96,SCP92 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
KSP92,NCP96,SCP92 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
KSP92,NCP96,SCP92 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP92,NCP96,SCP92 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP92,NCP96,SCP92 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP92,NCP96,SCP92 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP92,NCP96,SCP92 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
KSP92,NCP96,SCP92 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
KSP92,NCP96,SCP92 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP92,NCP96,SCP92 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP92,NCP96,SCP92 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP92,NCP96,SCP92 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP92,NCP96,SCP92 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
KSP92,NCP96,SCP92 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
KSP92,NCP96,SCP92 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP92,NCP96,SCP92 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP92,NCP96,SCP92 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP96,SCP92..G |
4 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP96,SCP92..G |
4 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP96,SCP92..G |
4 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52030 |
NCP96,SCP92..G |
4 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52080 |
KSP92,NCP96,SCP92 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52090 |
KSP92,NCP96,SCP92 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-52100 |
KSP92,NCP96,SCP92 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52880 |
NCP96,SCP92..G |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KSP92,NCP96,SCP92 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
KSP92,NCP96,SCP92 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KSP92,NCP96,SCP92 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
KSP92,NCP96,SCP92 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
KSP92,NCP96,SCP92 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
KSP92,NCP96,SCP92 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
KSP92,NCP96,SCP92 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 90987-02027 |
KSP92,NCP96,SCP92 有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
NCP96,SCP92..G |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52130 |
KSP92,NCP96,SCP92 JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52070 |
NCP96 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82711-1E320 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 91553-80612 | ||||
| 93315-14012 | ||||
| 93568-55016 | ||||

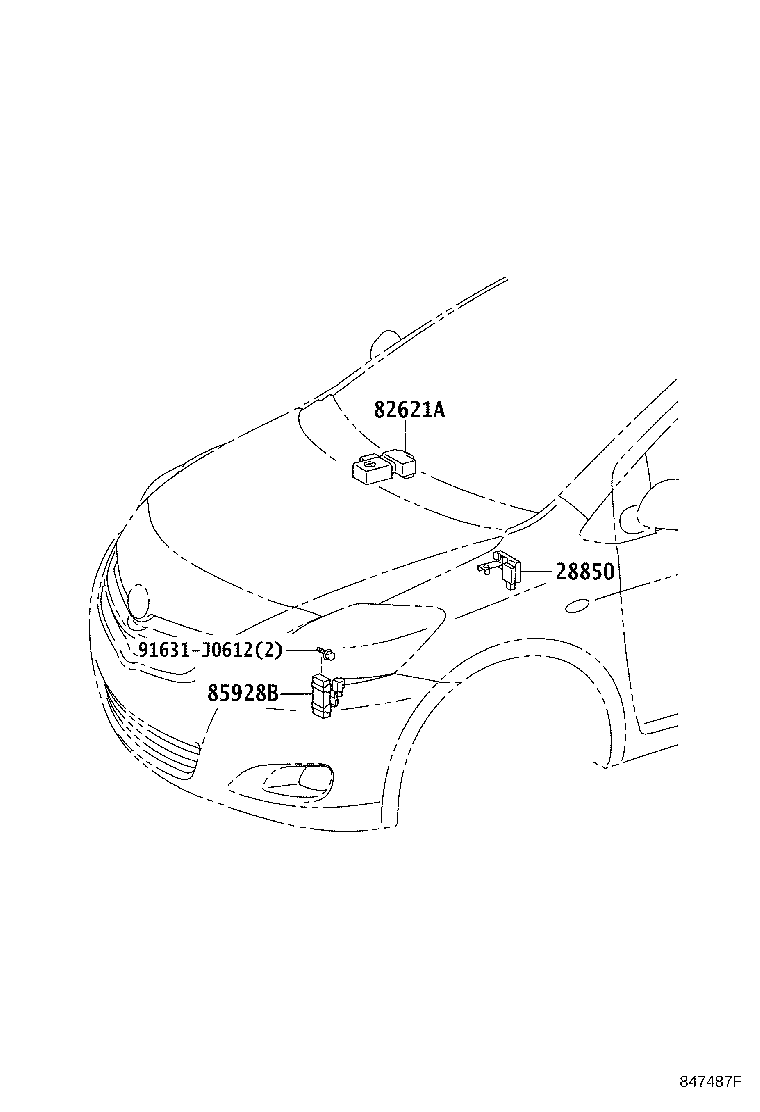

ILLUST NO. 2 OF 7(0511- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52120 |
KSP92,NCP96,SCP92 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
KSP92,NCP96,SCP92 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||

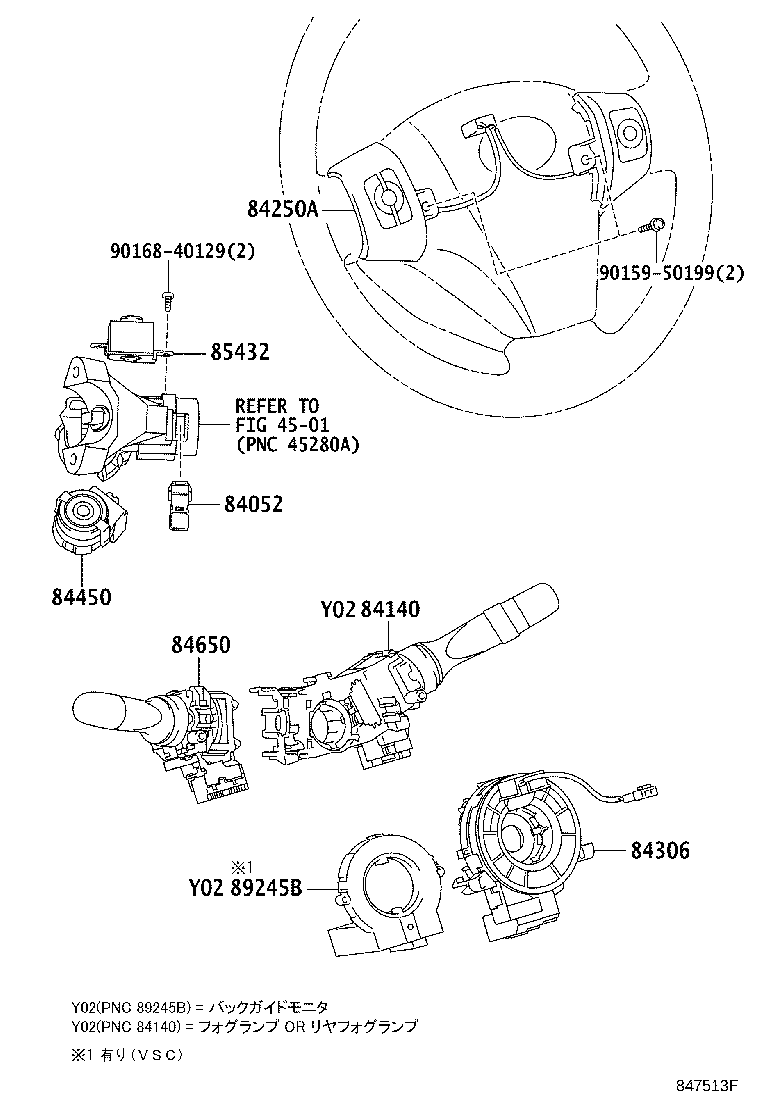

ILLUST NO. 6 OF 7(0511- )
ｲｸﾞﾆｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12600 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84140-52100 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84140-52130 |
KSP92,NCP96,SCP92 有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84140-12590 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-52120 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84140-52180 |
KSP92,NCP96,SCP92 |
1 | ||
| 84140-52090 |
KSP92,NCP96,SCP92 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84140-52110 |
KSP92,NCP96,SCP92 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&有り(ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ)&ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ−ﾌﾛﾝﾄ & ﾘﾔﾌｫｸﾞｽｲｯﾁ内蔵 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52010B1 |
NCP96,SCP92..G ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ,SILVER,TRIM4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52090 |
NCP96,SCP92..G ｵｰﾃﾞｨｵ(国内)−HDDﾅﾋﾞｹﾞｰｼｮﾝ 4ｽﾋﾟｰｶ |
1 | ||
| 84306-52100 |
KSP92,NCP96,SCP92 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52260 |
NCP96,SCP92..G |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 5 OF 7(0511- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52100 |
KSP92,NCP96,SCP92 |
1 | ||
| 84152-52100 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-52021 |
KSP92,NCP96,SCP92 |
1 | ||
| 84330-52020 |
KSP92,NCP96,SCP92 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
KSP92,NCP96,SCP92 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28020 |
KSP92,NCP96,SCP92 |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52040 |
KSP92,NCP96,SCP92 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85530-42010 |
KSP92,NCP96,SCP92 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52051 |
KSP92,NCP96,SCP92 |
1 | ||
| 85535-52050 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85535-52050 |
KSP92,NCP96,SCP92 |
1 | ||
| 85535-52051 |
KSP92,NCP96,SCP92 ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52011 |
NCP96,SCP92..G |
1 | ||
| 89611-52010 |
NCP96,SCP92..G |
1 | ||
ILLUST NO. 7 OF 7(0511- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP96 NO.1 |
1 | ||
| 83320-59505 |
NCP96 NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP96 NO.1 |
1 | ||
| 83320-59505 |
NCP96 NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP96 NO.1 |
1 | ||
| 83320-59505 |
NCP96 NO.2 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
KSP92,NCP96,SCP92 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
KSP92,NCP96,SCP92 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
KSP92,NCP96,SCP92 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
KSP92,NCP96,SCP92 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
KSP92,NCP96,SCP92 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
KSP92,NCP96,SCP92 DK.GRAY,TRIM4# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
KSP92,NCP96,SCP92 DK.GRAY,TRIM4# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
KSP92,NCP96,SCP92 DK.GRAY,TRIM4# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52010B4 |
KSP92,NCP96,SCP92 DK.GRAY,TRIM4# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52200 |
KSP92,NCP96,SCP92 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-52020 |
NCP96,SCP92..G |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52060 |
NCP96 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 89407 - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-52060 |
NCP96 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90166-70001 | ||||
| 91551-A0816 | ||||
| 93319-A4010 | ||||

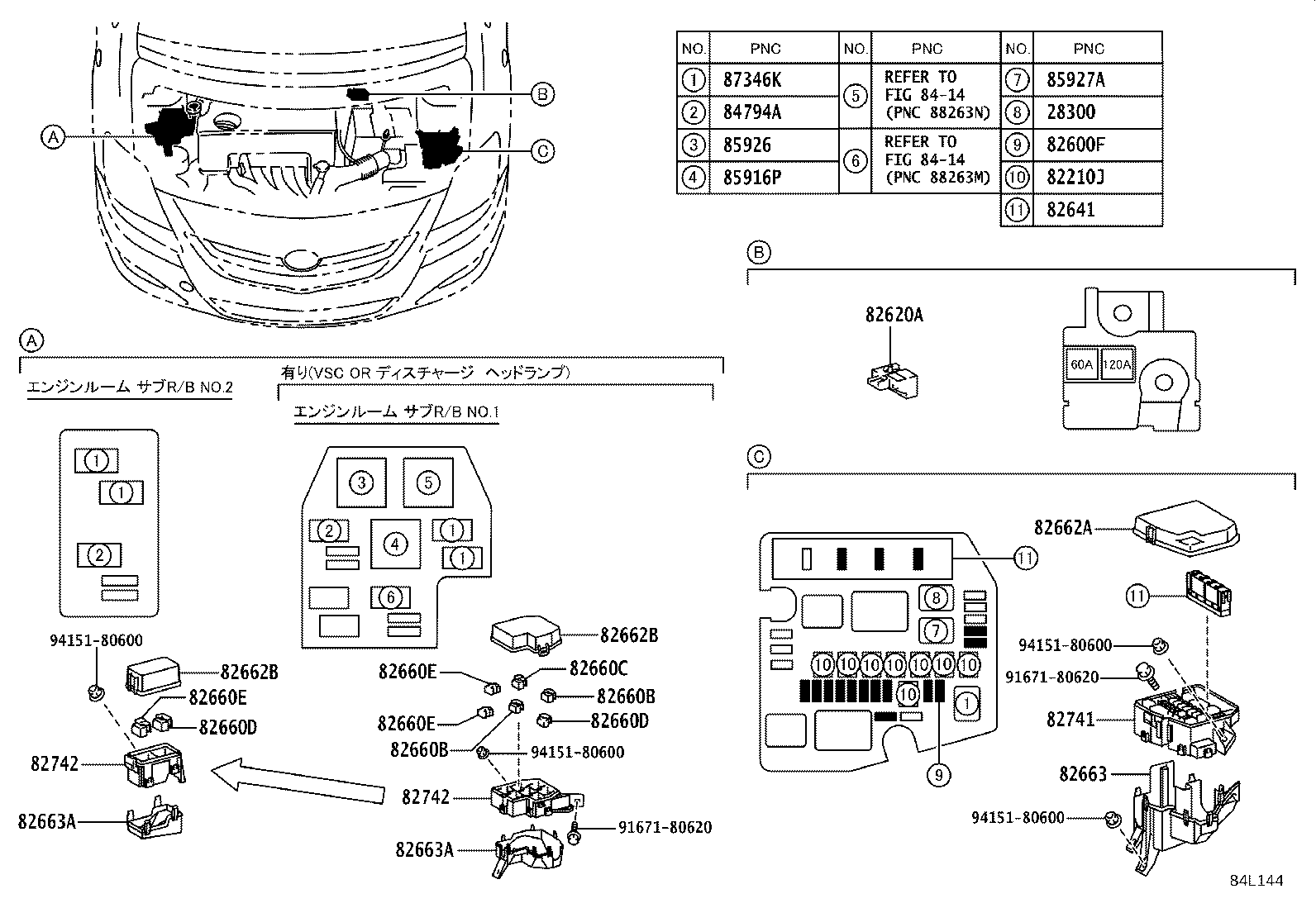

ILLUST NO. 3 OF 7(0511- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1KRFE,2NZFE,2SZFE..KSP92,NCP96,SCP92 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
KSP92,NCP96,SCP92 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
KSP92,NCP96,SCP92 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
KSP92,NCP96,SCP92 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
KSP92,NCP96,SCP92 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
KSP92,NCP96,SCP92 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
KSP92,NCP96,SCP92 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09024 |
KSP92,NCP96,SCP92 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
KSP92,NCP96,SCP92 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09021 |
KSP92,NCP96,SCP92 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52050 |
KSP92,NCP96,SCP92 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
KSP92,NCP96,SCP92 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP96,SCP92 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
NCP96,SCP92 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP96,SCP92 |
1 | ||
| 82660-52020 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP96,SCP92 |
1 | ||
| 82660-52020 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52020 |
NCP96,SCP92 |
1 | ||
| 82660-52020 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52280 |
KSP92,NCP96,SCP92 |
1 | ||
| 82662-52290 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP96,SCP92 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52320 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52350 |
NCP96,SCP92 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52031 |
KSP92,NCP96,SCP92 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52070 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP96,SCP92 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52070 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82663-52060 |
NCP96,SCP92 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52031 |
KSP92,NCP96,SCP92 |
1 | ||
| 82741-52041 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP96,SCP92 |
1 | ||
| 82741-52060 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52050 |
NCP96,SCP92 |
1 | ||
| 82741-52060 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
KSP92,NCP96,SCP92 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP96,SCP92 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
KSP92,NCP96,SCP92 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
KSP92,NCP96,SCP92 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
